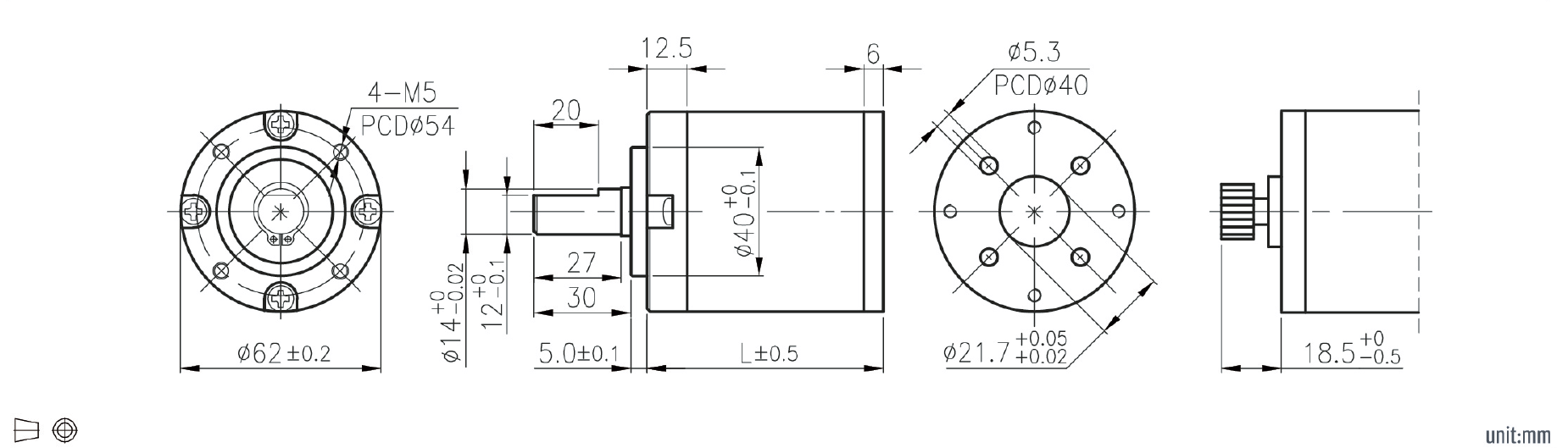

外型尺寸
產品規格
| 序號 | 直徑(mm) | 系列 | 減速比 | 級數 | 定格容許扭力(N-m) | 瞬間容許扭力(N-m) | 效率 | 長度(mm) | 重量(g) | 輸出軸承型式 | 精確減速比 | 徑向負荷 (N) | 徑向負荷 (距離) | 軸向負荷 (N) | 主軸承受壓入力 (N) | 徑向間隙(mm) | 軸向間隙(mm) | 背隙(無負荷時) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-62 | 62 | 行星式 | 1/3 | 1 | 1.47 | 4.41 | 80% | 43.6 | 670 | 滾珠軸承 | 1/3.5 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/4 | 1 | 1.47 | 4.41 | 80% | 43.6 | 670 | 滾珠軸承 | 1/4.33 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/12 | 2 | 4.9 | 14.7 | 70% | 59.1 | 940 | 滾珠軸承 | 1/12.25 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/15 | 2 | 4.9 | 14.7 | 70% | 59.1 | 940 | 滾珠軸承 | 1/15.17 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/19 | 2 | 4.9 | 14.7 | 70% | 59.1 | 940 | 滾珠軸承 | 1/18.78 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/43 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/42.88 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/53 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/53.08 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/66 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/65.72 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/81 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/81.37 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/100 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/100.29 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/113 | 3 | 9.8 | 29.4 | 60% | 74.6 | 1220 | 滾珠軸承 | 1/112.67 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/150 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/150.06 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/230 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/230.03 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/285 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/284.80 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/353 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/352.60 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/488 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/488.22 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/546 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/546 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
| IG-62 | 62 | 行星式 | 1/676 | 4 | 9.8 | 29.4 | 50% | 90.1 | 1500 | 滾珠軸承 | 1/676 | ≦245.17 | 10mm from flange | ≦98.07 | ≦490.33 | ≦0.08 | ≦0.4 | ≦3° |
