PG-52RLN

Precision Planetary Gearbox

  • High Torque
  • High Efficiency
  • Low Backlash
  • Long Lifespan
Specification Download

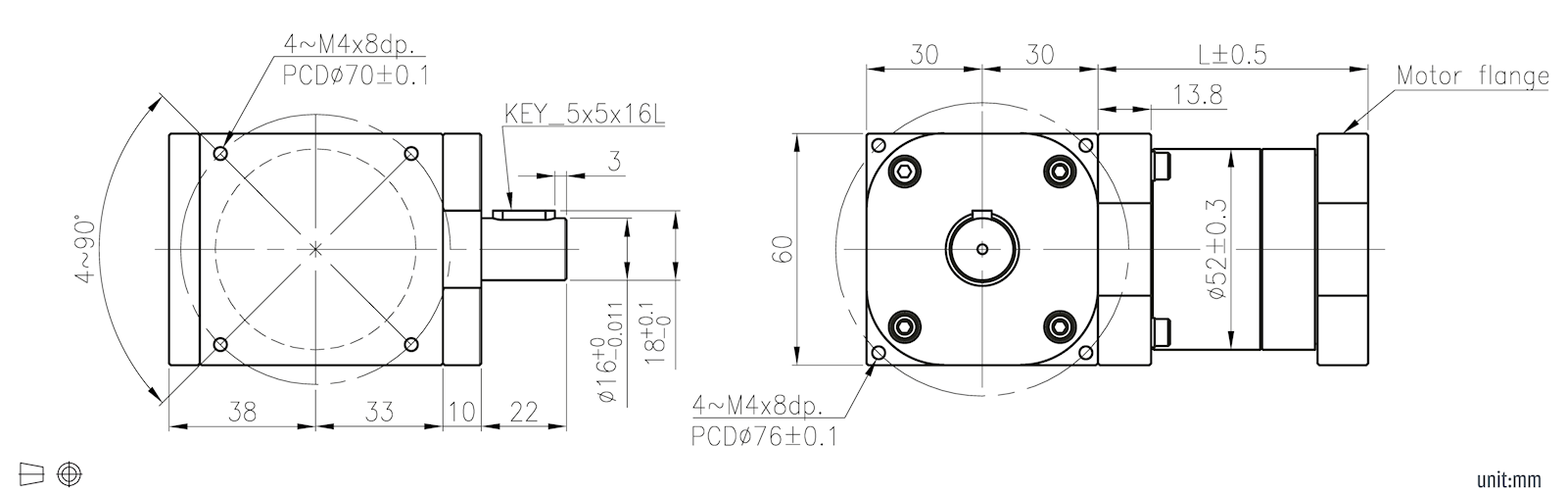

Dimensional drawing

Spec

No. Outer diameter(mm) Series Reduction ratio Number of stages Max. rated torque(N-m) Max. momentary torque(N-m) Efficiency Gearbox length(mm) Gearbox weight(g) Output shaft bearing Absolute reduction Radial load(N) Radial load(distance) Shaft axial load(N) Shaft press fit force(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash, at no-load
PG-52RLN 51.4 Precision Planetary 4 1 3.53 5.29 72% 101.3 2535 Ball bearing 1/3.65 ≦313.81 ≦68.65 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 5 1 3.53 5.29 72% 101.3 2535 Ball bearing 1/4.59 ≦313.81 ≦68.65 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 5 1 3.53 5.29 72% 101.3 2535 Ball bearing 1/5.36 ≦313.81 ≦68.65 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 7 1 3.53 5.29 72% 101.3 2535 Ball bearing 1/6.55 ≦313.81 ≦68.65 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 9 1 3.53 5.29 72% 101.3 2535 Ball bearing 1/8.63 ≦313.81 ≦68.65 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 14 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/13.53 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 16 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/15.65 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 17 2 10.58 15.88 68% 115.9 2735 Ball bearing 46039 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 19 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/18.92 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 23 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/22.96 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 25 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/24.65 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 28 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/27.76 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 28 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/28.05 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 34 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/33.92 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 45 2 10.58 15.88 68% 115.9 2735 Ball bearing 1/44.69 ≦480.53 ≦98.07 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 58 3 10.58 15.88 68% 115.9 2735 Ball bearing 1/58.22 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 50 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/50.16 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 58 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/58.01 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 67 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/67.09 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 70 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/70.13 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 81 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/81.11 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 91 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/91.36 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 98 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/98.07 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 102 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/101.9 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 106 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/105.65 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 115 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/114.77 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 123 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/123.2 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 128 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/127.74 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 137 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/137 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 145 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/145.36 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 166 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/166.39 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 176 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/175.75 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 192 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/191.56 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 232 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/231.61 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 302 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/301.69 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
PG-52RLN 51.4 Precision Planetary 393 3 22.05 33.07 63% 130.1 2935 Ball bearing 1/392.98 ≦755.11 ≦156.91 ≦1294.48 ≦0.05 ≦0.3
