SHA YANG YE - Professional Geared Motor Manufacturer

Product Type

Parameters

Rated torque(N-m)：

kgf-cm gf-cm lbf-in N-m mN-m Rated torque(N-m)： -

No load speed(rpm)：

No load speed(rpm)： -

Rated output(W)：

Rated output(W)： -

Reset All

No.	Motor series	Outer diameter(mm)	Length(mm)	Rated volt(V)	Rated torque(N-m)	Rated speed(rpm)	Rated current(A)	No load speed(rpm)	No load current(A)	Rated output(W)	Max. efficiency	Weight(g)
BLE-1624	BLDC motor	16	24	8.5	0.0029	10000	0.9	13300	0.25	3.08	50%	20	View
BLE-1624	BLDC motor	16	24	12	0.0034	9700	0.7	12500	0.22	3.49	50%	20	View
BLE-1624	BLDC motor	16	24	24	0.0039	10000	0.45	13300	0.2	4.11	50%	20	View

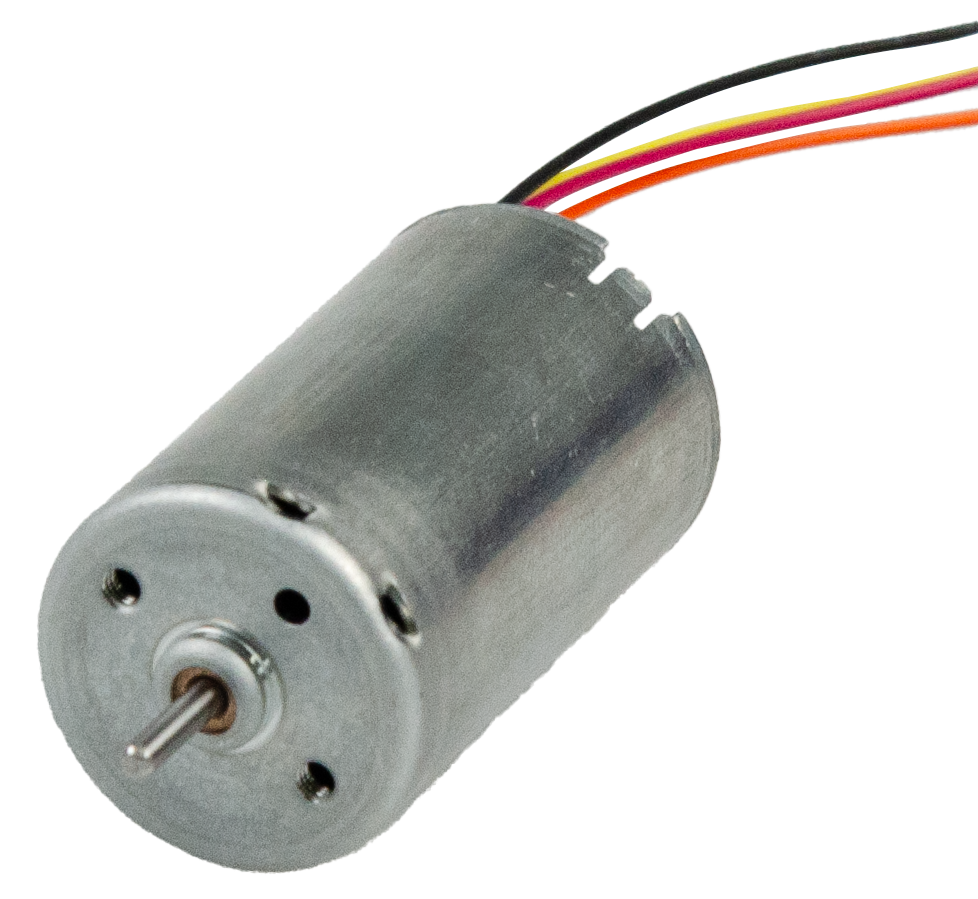

BLB-2238	BLDC motor	22	38	12	0.0049	5400	0.56	7000	0.28	2.77	50%	55	View
BLB-2238	BLDC motor	22	38	24	0.0049	5400	0.28	7000	0.14	2.77	50%	55	View

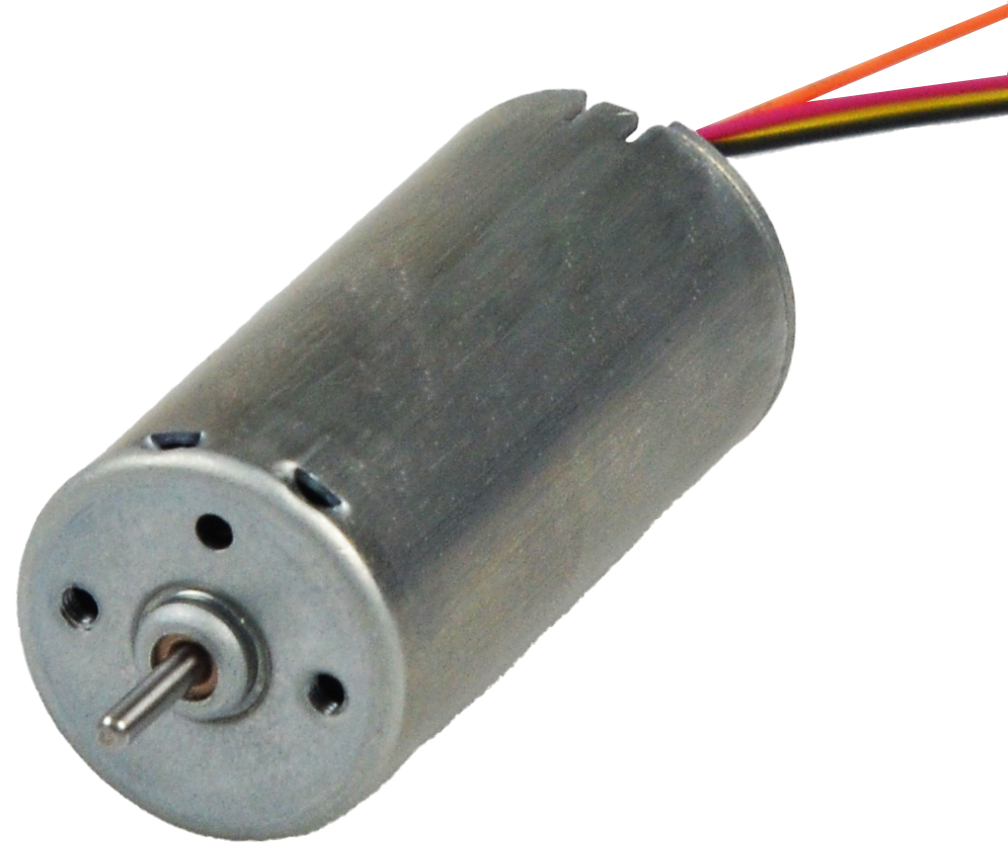

BLB-2247	BLDC motor	22	47	12	0.01	5400	0.78	7000	0.4	3.88	50%	75	View
BLB-2247	BLDC motor	22	47	24	0.01	5400	0.39	7000	0.2	3.88	50%	75	View
BLB-2418	BLDC motor	24	18	12	0.0029	5340	0.35	7400	0.2	1.65	50%	28	View
BLB-2418	BLDC motor	24	18	24	0.0027	6700	0.22	8700	0.18	1.93	50%	28	View

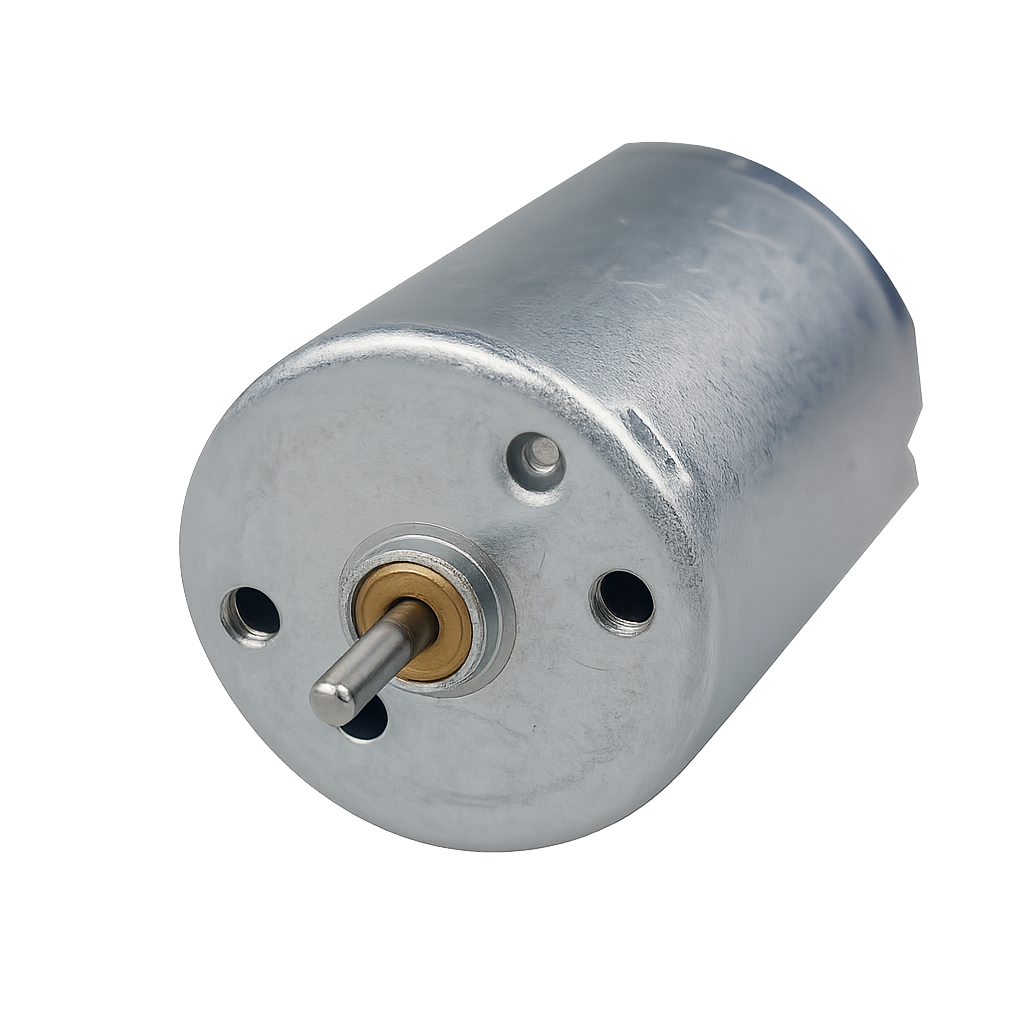

BLB-2430	BLDC motor	24	30	12	0.01	5340	0.85	7400	0.36	4.39	55%	55	View
BLB-2430	BLDC motor	24	30	24	0.01	6000	0.45	7400	0.22	4.93	55%	55	View

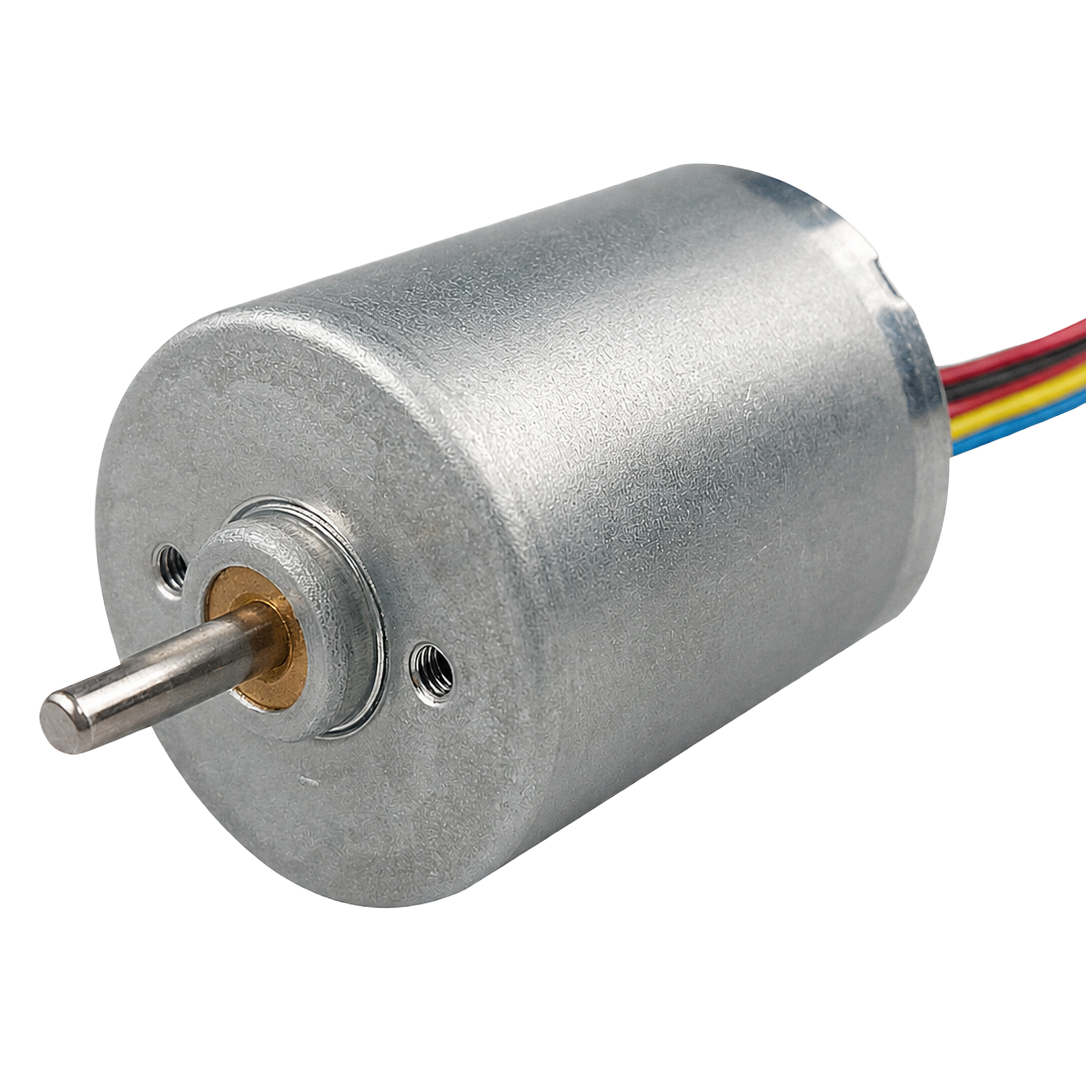

BLB-2833	BLDC motor	28	33	12	0.01	3000	0.75	4000	0.3	3.85	50%	70	View
BLB-2833	BLDC motor	28	33	24	0.01	3000	0.46	4000	0.15	3.85	50%	70	View

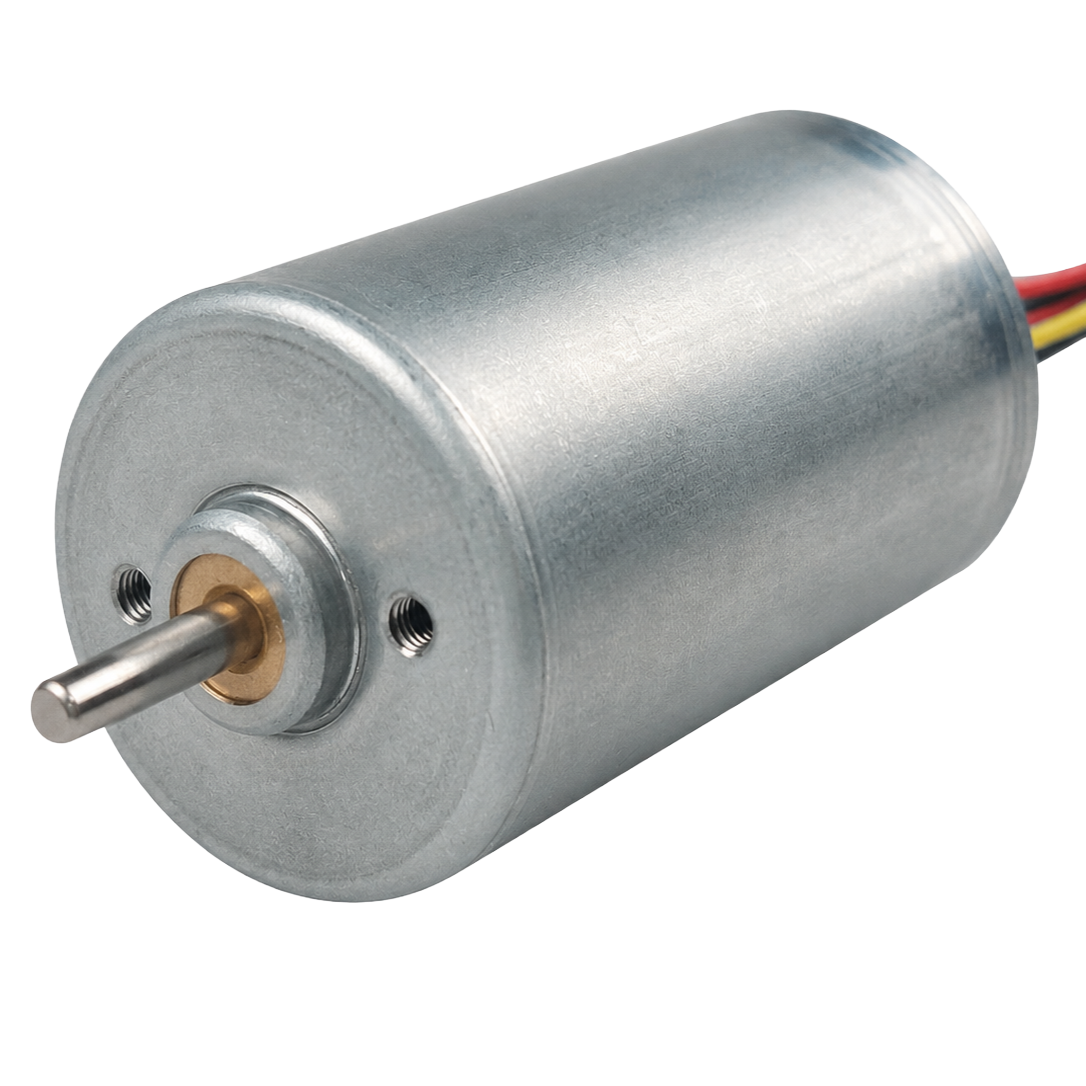

BLB-2838	BLDC motor	28	38	12	0.02	3000	1	4000	0.35	5.55	50%	89	View
BLB-2838	BLDC motor	28	38	24	0.02	3000	0.58	4000	0.175	5.55	50%	89	View

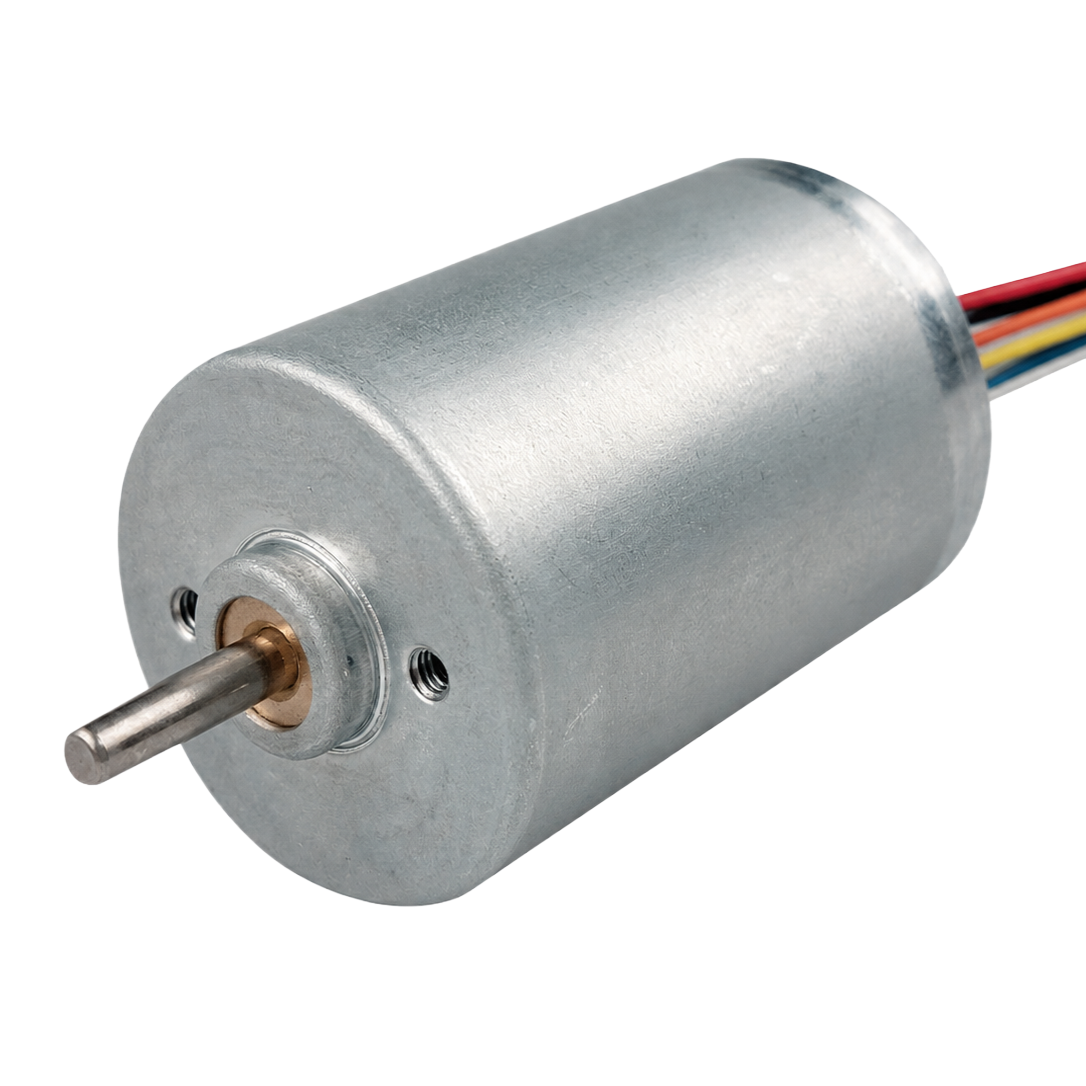

BLB-2847	BLDC motor	28	47	12	0.02	3000	1.4	4000	0.42	7.7	50%	104	View
BLB-2847	BLDC motor	28	47	24	0.02	3000	0.9	4000	0.21	7.7	50%	104	View
BLB-3640	BLDC motor	36	40	12	0.02	2000	1	2800	0.35	4.11	45%	160	View
BLB-3640	BLDC motor	36	40	24	0.02	3900	1.23	5000	0.36	10.01	55%	160	View
BLA-4239	BLDC motor	42	39	12	0.04	9000	5.8	11000	1.6	41.5	70%	196	View
BLA-4239	BLDC motor	42	39	24	0.06	9000	3.65	11000	0.9	55.4	70%	196	View

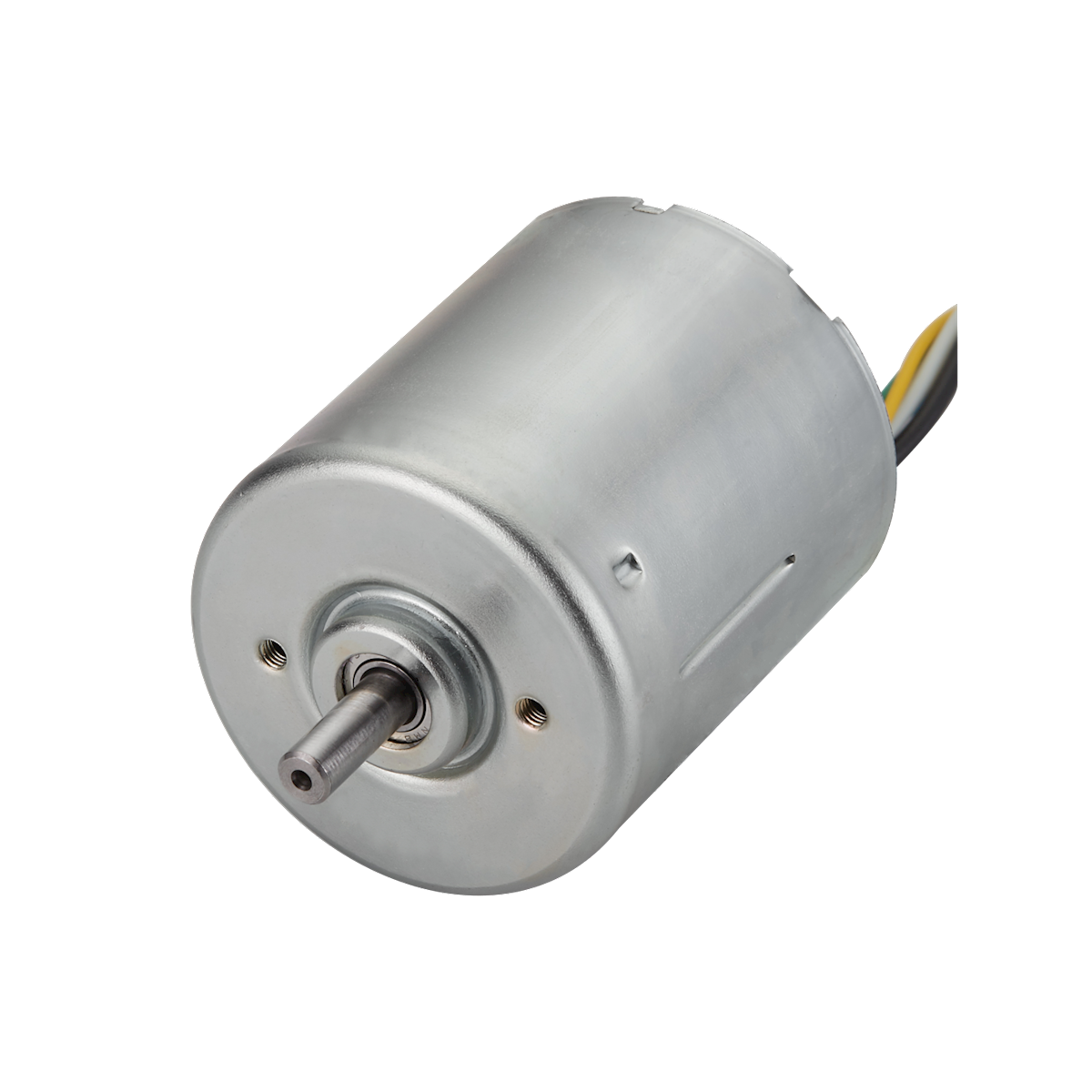

BLA-4248	BLDC motor	42	48	12	0.08	3000	3.15	3800	0.5	24.6	70%	265	View
BLA-4248	BLDC motor	42	48	24	0.08	3000	1.7	3800	0.32	24.6	70%	265	View
BLB-4248	BLDC motor	42	48	12	0.08	3000	3.15	3800	0.5	24.6	70%	265	View
BLB-4248	BLDC motor	42	48	24	0.08	3000	1.7	3800	0.32	24.6	70%	265	View
BLA-4266	BLDC motor	42	66	12	0.16	3000	5.8	3800	0.7	49.2	70%	425	View
BLA-4266	BLDC motor	42	66	24	0.16	3000	3	3800	0.44	49.2	70%	425	View

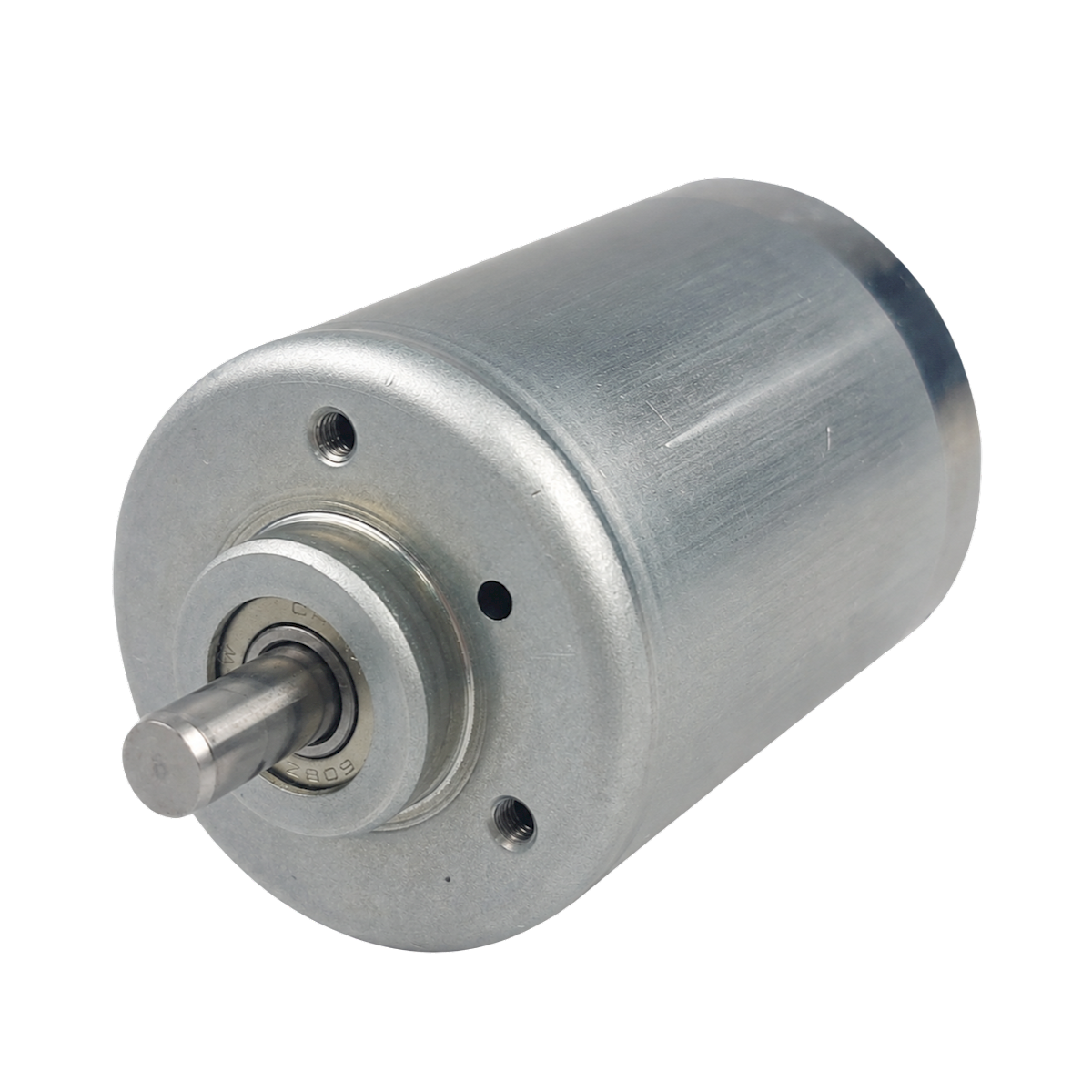

BLA-5264	BLDC motor	52	64	12	0.28	3400	11	4200	1	100	85%	650	View
BLA-5264	BLDC motor	52	64	24	0.28	3400	5.5	4200	0.5	100	85%	650	View
BLA-5264	BLDC motor	52	64	24	0.55	3500	11	4400	0.8	200	85%	650	View
BLC-2424	BLDC motor	24	24	12	0.0015	6500	0.25	7400	0.21	1	50%	35	View
BLC-3640	BLDC motor	36	40	24	0.04	3600	1.3	5000	0.45	14.7	54%	180	View
BLC-4266	BLDC motor	42	66	24	0.24	3000	4.9	4000	0.5	77	80%	360	View

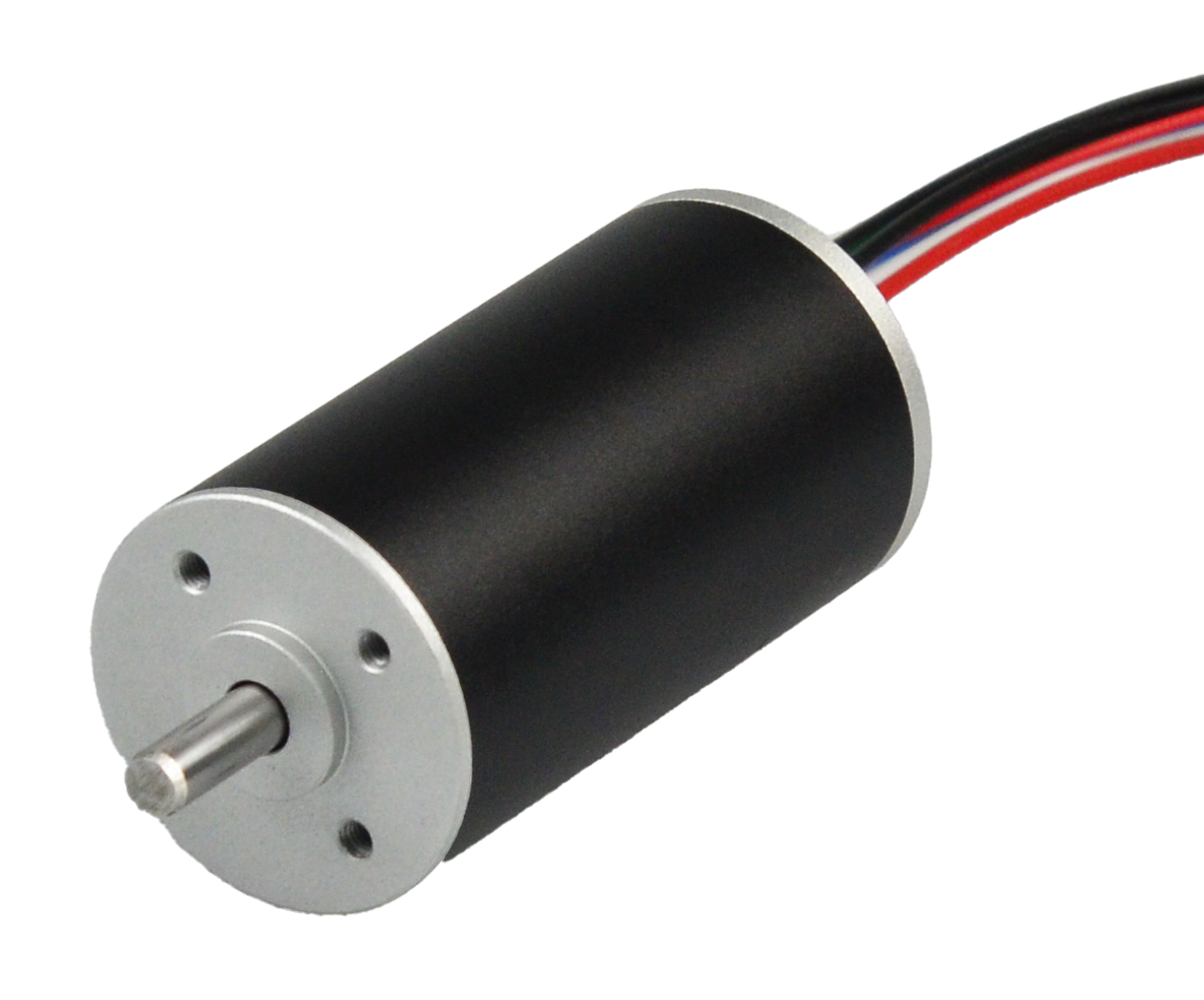

ECC-3260	BLDC motor	32	60	24	0.03	6000	3.12	7200	0.34	21.6	72.5%	215	View
ECC-3260	BLDC motor	32	60	12	0.03	6000	1.56	7200	0.18	21.6	73.5%	215	View

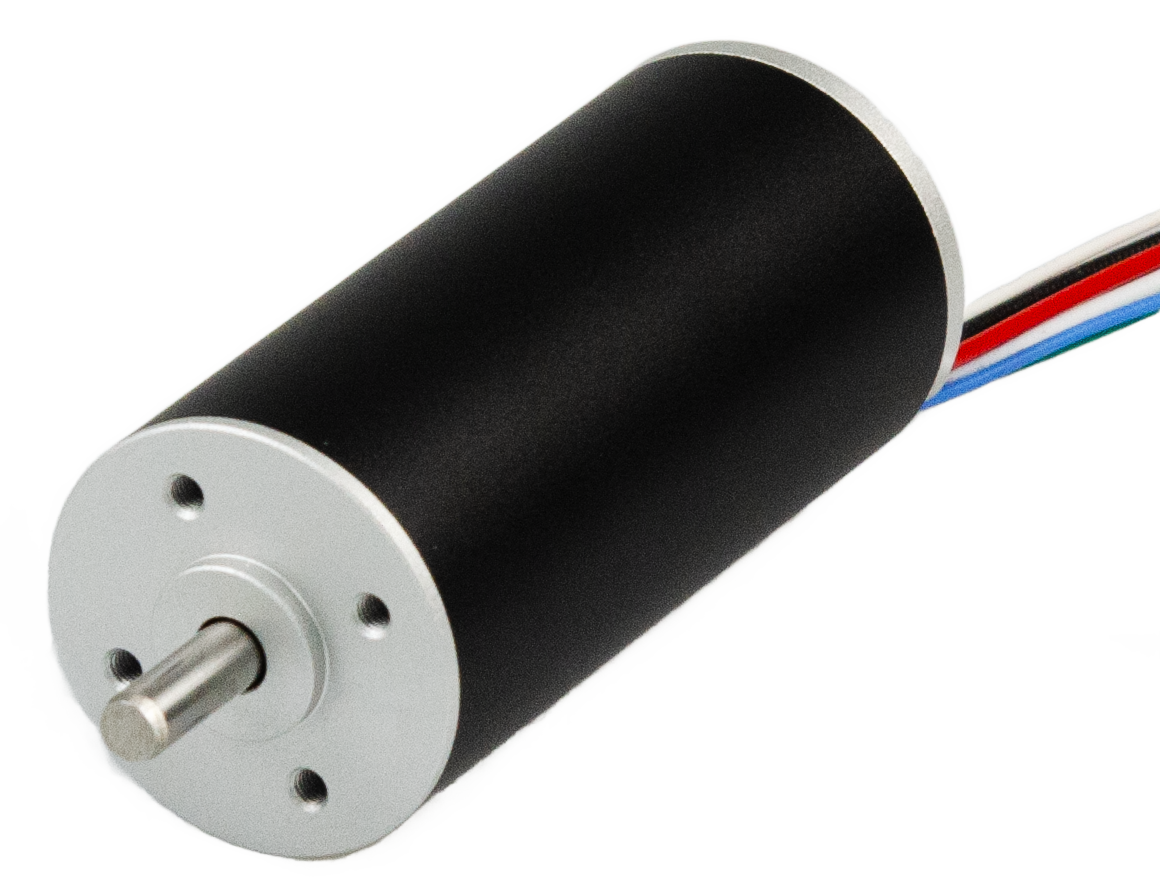

ECC-3270	BLDC motor	32	70	24	0.05	6000	4	7000	0.33	30.8	80.5%	260	View
ECC-3270	BLDC motor	32	70	12	0.05	6000	2	7000	0.25	30.8	81%	260	View
