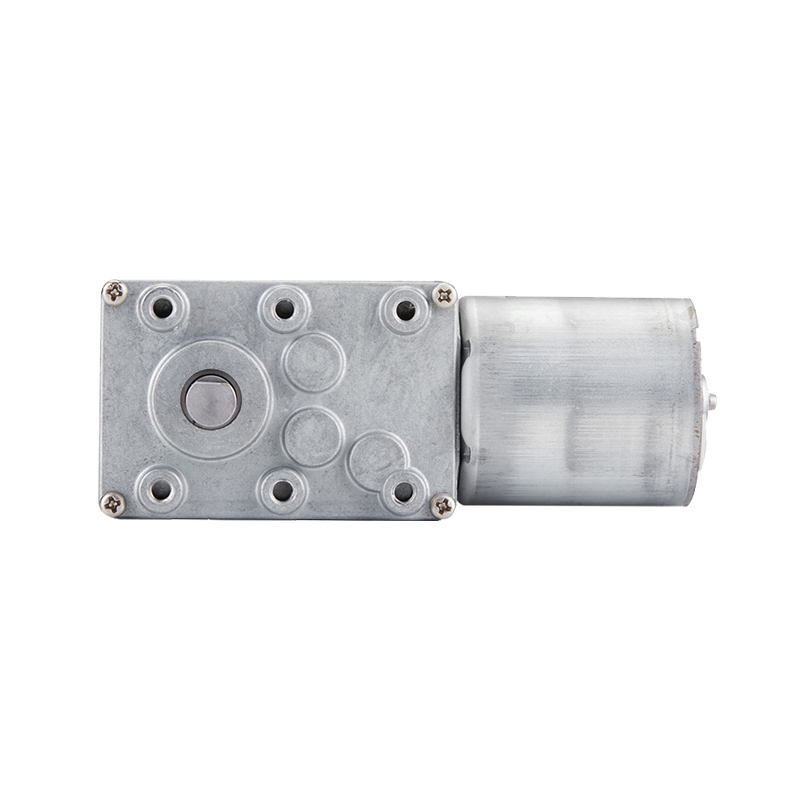

WG-40GM-41TYPE
DC Brushless Motor
- Single or dual output shaft are both available.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- We welcome customization to meet specific requirements.

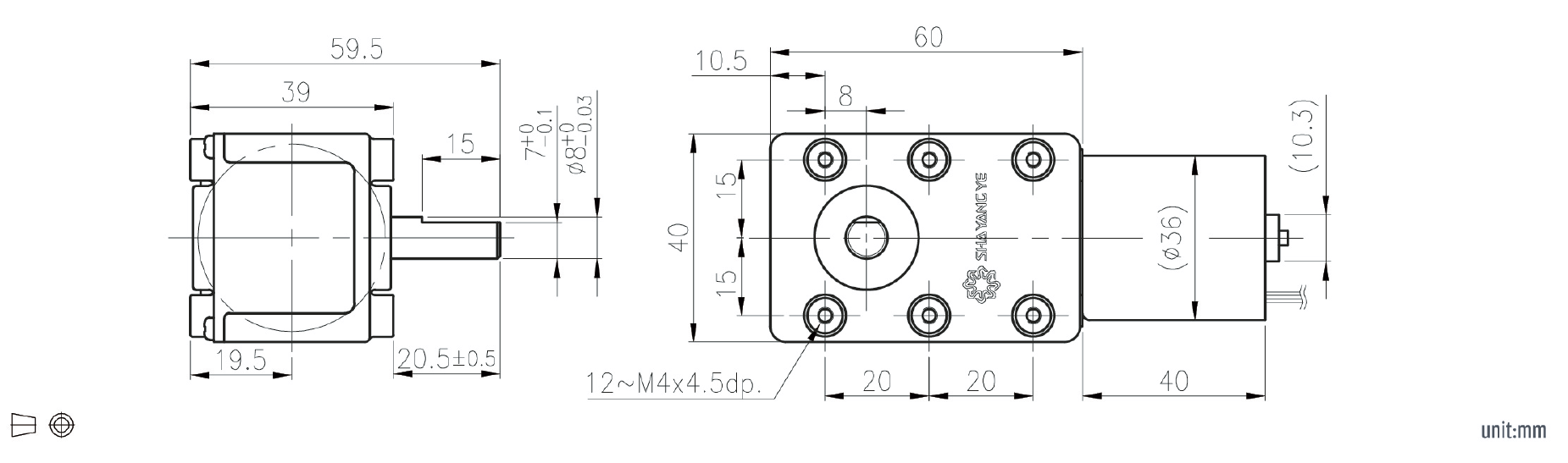

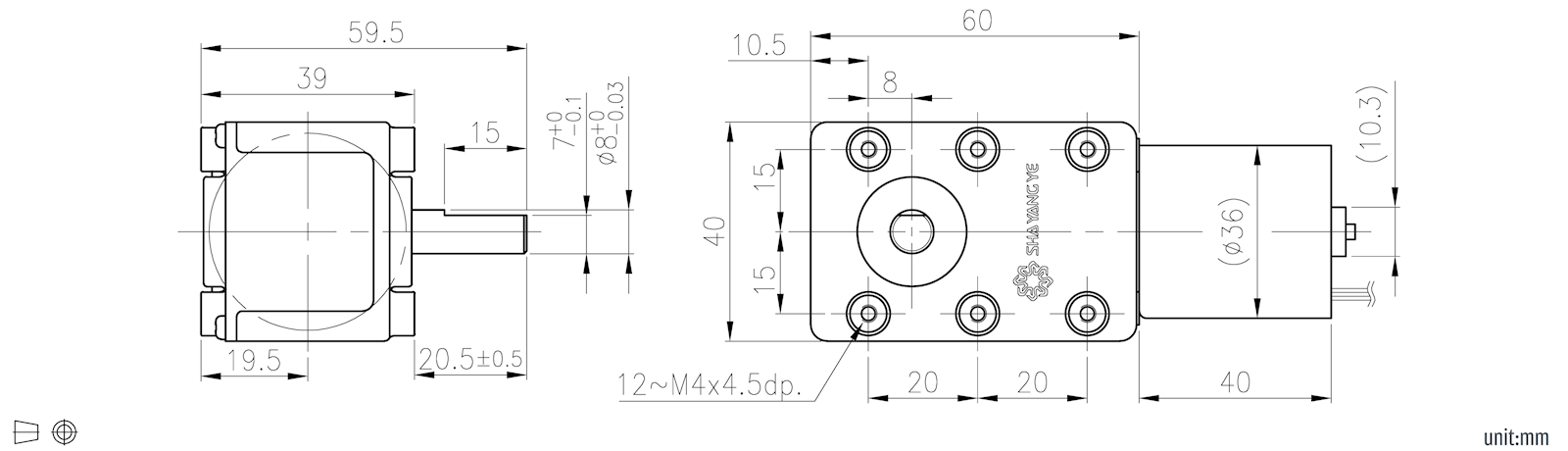

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/50 | 1/50 | 10 | 0.2 | 40 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/75 | 1/75 | 10 | 0.29 | 26.7 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/100 | 1/100 | 10 | 0.39 | 20 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/150 | 1/150 | 10 | 0.59 | 13.3 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/200 | 1/200 | 10 | 0.78 | 10 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/350 | 1/350 | 10 | 0.98 | 5.7 | CW/CCW | 100 | 360 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/600 | 1/600 | 12 | 1.96 | 3.3 | CW/CCW | 100 | 365 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/700 | 1/700 | 12 | 1.96 | 2.8 | CW/CCW | 100 | 365 | Right Angle |
| WG-40GM-41TYPE | 40 | DC Brushless Motor | 12 | 1/1050 | 1/1050 | 12 | 1.96 | 1.9 | CW/CCW | 100 | 365 | Right Angle |
