WG-40GM-02TYPE
DC Carbon-Brush Motor
- Single or dual output shaft are both available.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- We welcome customization to meet specific requirements.

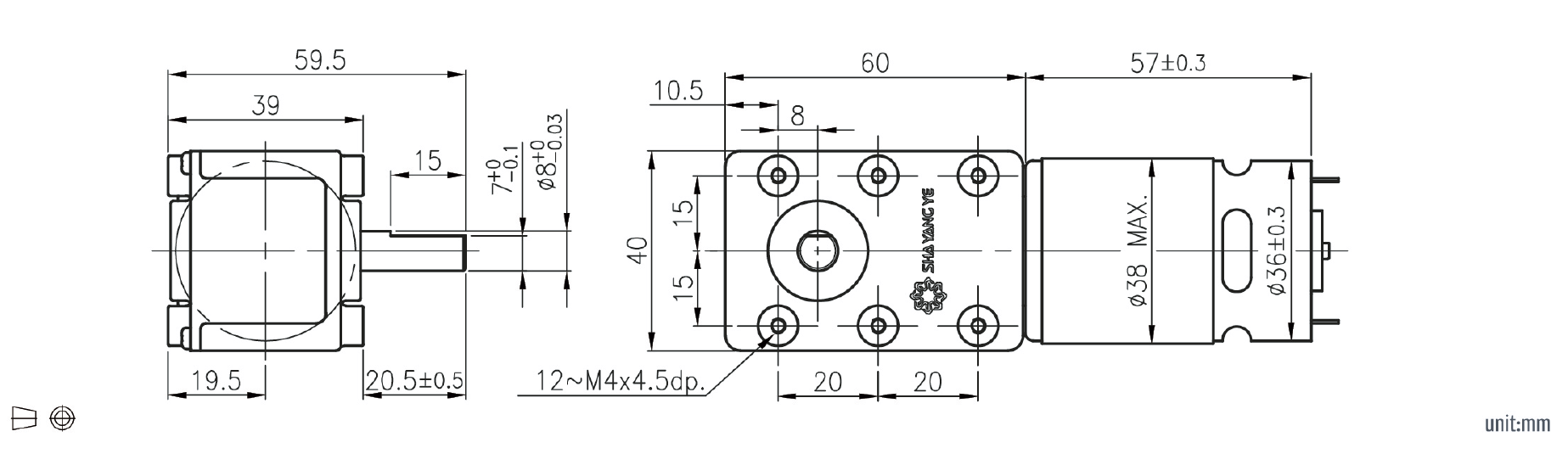

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/50 | 1/50 | 10 | 0.28 | 103 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/75 | 1/75 | 10 | 0.41 | 68 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/100 | 1/100 | 10 | 0.56 | 51 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/150 | 1/150 | 10 | 0.83 | 34 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/200 | 1/200 | 10 | 0.98 | 25.5 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/350 | 1/350 | 10 | 0.98 | 14.5 | CW | 117 | 435 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/600 | 1/600 | 12 | 1.96 | 8.5 | CCW | 117 | 440 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/700 | 1/700 | 12 | 1.96 | 7.9 | CCW | 117 | 440 | Right Angle |
| WG-40GM-02TYPE | 40 | DC Brushed Motor | 24 | 1/1050 | 1/1050 | 12 | 1.96 | 4.9 | CCW | 117 | 440 | Right Angle |
