RB-64GM-12TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.
Dimensional drawing

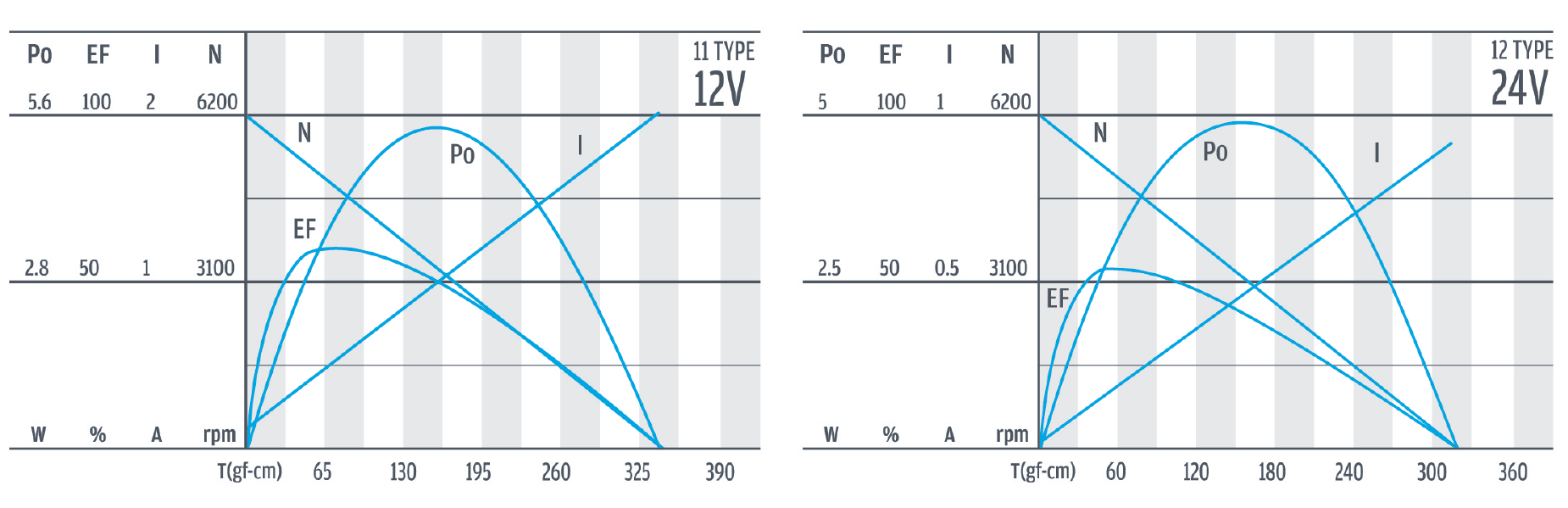

馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/30 | 1/29.92 | 0.13 | 162 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/45 | 1/45.25 | 0.19 | 109 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/60 | 1/59.53 | 0.25 | 81 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/90 | 1/88.18 | 0.29 | 57 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/120 | 1/120.31 | 0.29 | 45 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/150 | 1/150.18 | 0.29 | 37 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/225 | 1/225.32 | 0.29 | 25 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-64GM-12TYPE | 64 | DC Brushed Motor | 24 | 1/340 | 1/340.05 | 0.29 | 17 | CW | 40.65 | 165 | Spur Gearbox(Eccentric Output Shaft) |
