RB-60WGM-67TYPE
DC Brushless Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

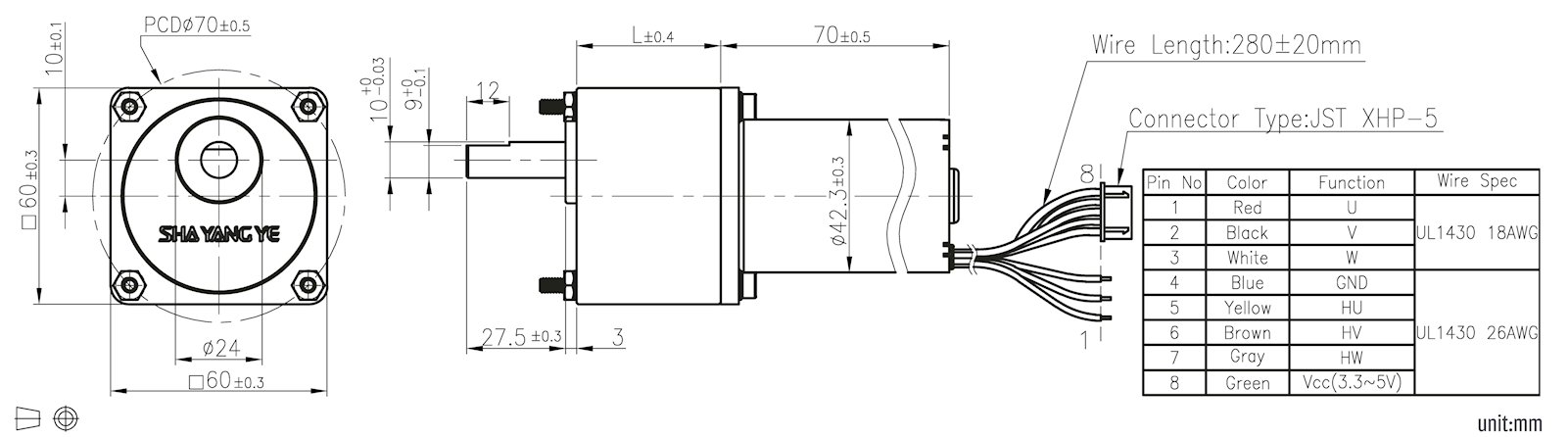

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/6 | 1/6 | 2 | 0.51 | 570 | CW/CCW | 104 | 800 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/9 | 1/9 | 2 | 0.98 | 368 | CW/CCW | 104 | 800 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/18 | 1/18 | 2 | 1.57 | 189.4 | CW/CCW | 104 | 800 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/25 | 1/25 | 3 | 2.06 | 135.6 | CW/CCW | 107 | 825 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/30 | 1/30 | 3 | 2.94 | 110.5 | CW/CCW | 107 | 825 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/50 | 1/50 | 4 | 4.8 | 65.4 | CW/CCW | 110 | 855 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/100 | 1/100 | 4 | 5.88 | 34.8 | CW/CCW | 110 | 855 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-67TYPE | 60 | DC Brushless Motor | 12 | 1/180 | 1/180 | 4 | 5.88 | 20.1 | CW/CCW | 110 | 855 | Spur Gearbox(Eccentric Output Shaft) |
