RB-60WGM-42TYPE
DC Brushless Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

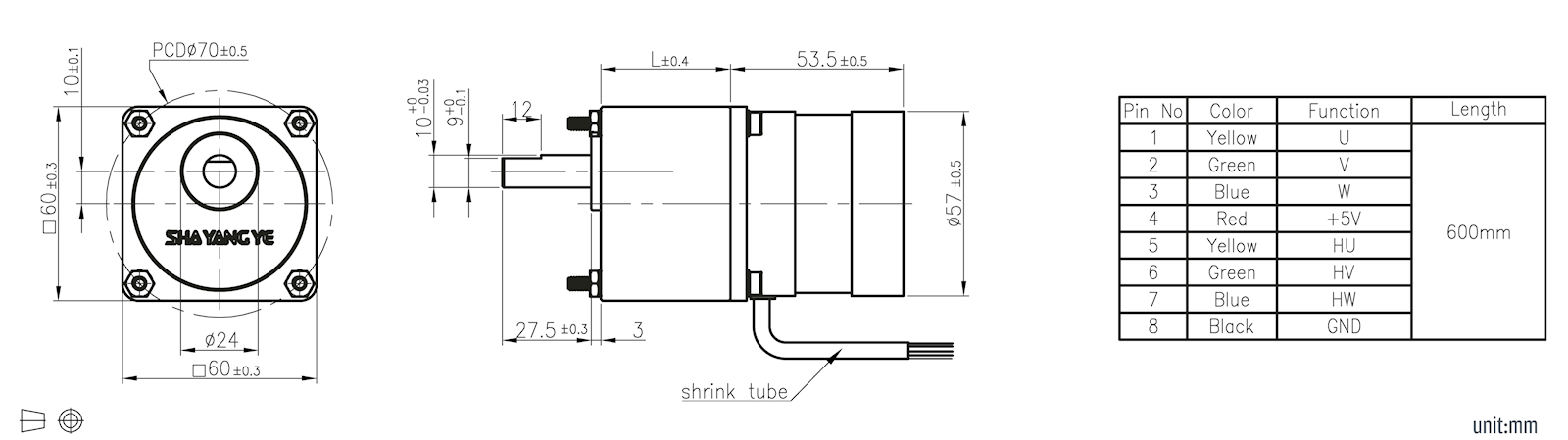

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/6 | 1/6 | 2 | 0.44 | 567 | CW/CCW | 87.5 | 746 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/9 | 1/9 | 2 | 0.66 | 377 | CW/CCW | 87.5 | 746 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/18 | 1/18 | 2 | 1.31 | 189 | CW/CCW | 87.5 | 746 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/25 | 1/25 | 3 | 1.64 | 136 | CW/CCW | 90.5 | 771 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/30 | 1/30 | 3 | 1.96 | 113 | CW/CCW | 90.5 | 771 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/50 | 1/50 | 4 | 2.94 | 68 | CW/CCW | 93.5 | 801 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/100 | 1/100 | 4 | 5.88 | 34 | CW/CCW | 93.5 | 801 | Spur Gearbox(Eccentric Output Shaft) |
| RB-60WGM-42TYPE | 60 | DC Brushless Motor | 24 | 1/180 | 1/180 | 4 | 5.88 | 20.6 | CW/CCW | 93.5 | 801 | Spur Gearbox(Eccentric Output Shaft) |
