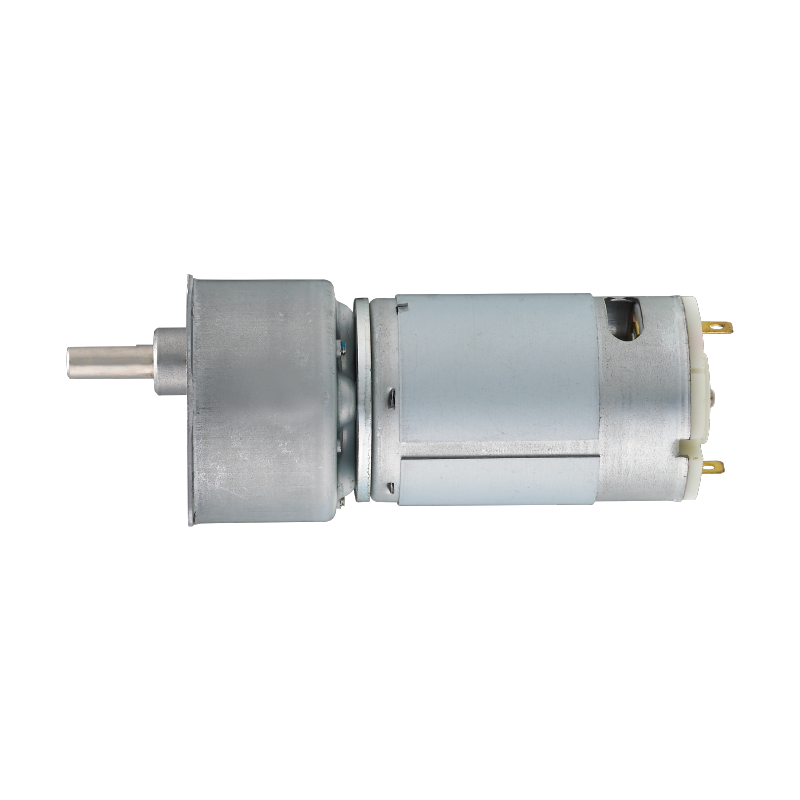

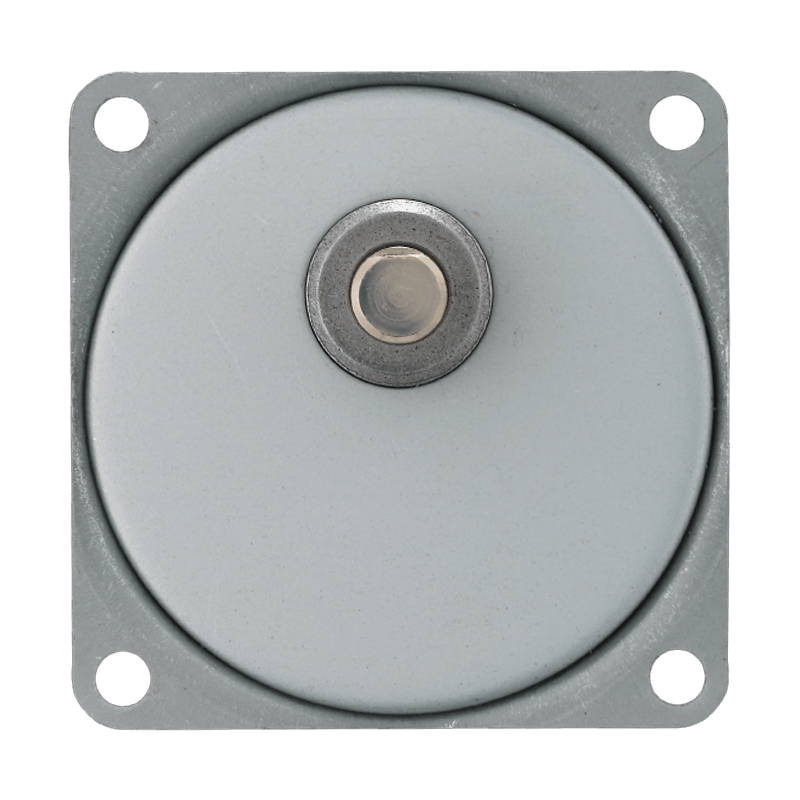

RB-40GM-04TYPE
DC Carbon-Brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

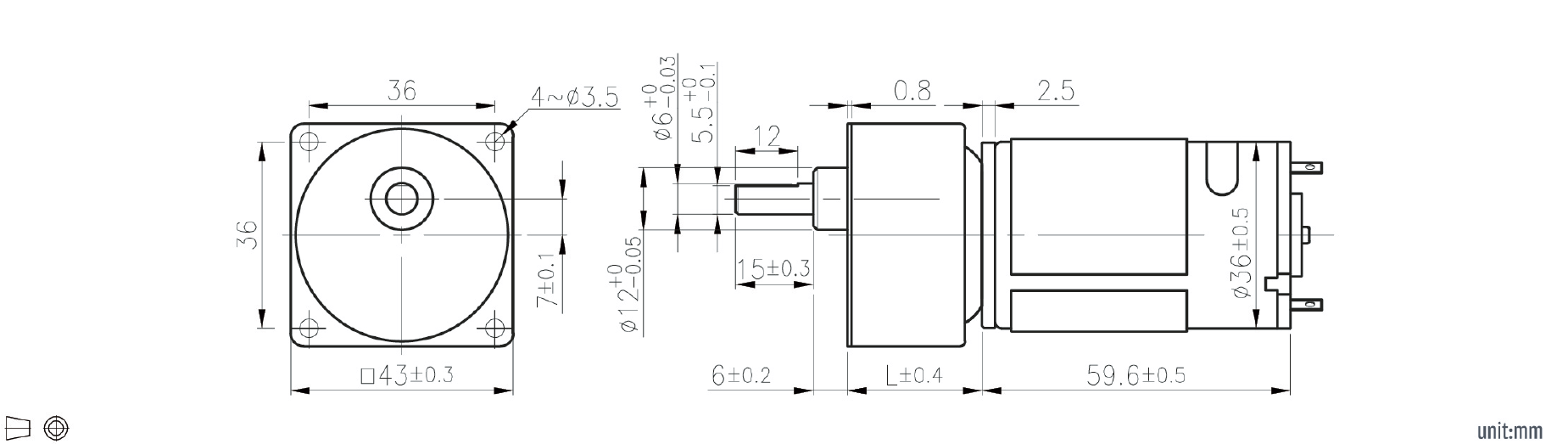

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/10 | 1/10 | 2 | 0.1 | 530 | CCW | 83.5 | 330 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/15 | 1/15 | 3 | 0.25 | 340 | CW | 86 | 336 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/18 | 1/18 | 3 | 0.29 | 283 | CW | 86 | 336 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/25 | 1/25 | 3 | 0.39 | 207 | CW | 86 | 336 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/30 | 1/30 | 3 | 0.39 | 176 | CW | 86 | 336 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/36 | 1/36 | 3 | 0.39 | 149 | CW | 86 | 336 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/50 | 1/50 | 4 | 0.49 | 107 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/60 | 1/60 | 4 | 0.49 | 92 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/75 | 1/75 | 4 | 0.49 | 73 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/90 | 1/90 | 4 | 0.69 | 61 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/100 | 1/100 | 4 | 0.69 | 54 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/120 | 1/120 | 4 | 0.69 | 46 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/150 | 1/150 | 4 | 0.69 | 37 | CCW | 88.5 | 345 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/180 | 1/180 | 5 | 0.69 | 31 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/200 | 1/200 | 5 | 0.69 | 28.5 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/250 | 1/250 | 5 | 0.69 | 23 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/300 | 1/300 | 5 | 0.69 | 19.1 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/360 | 1/360 | 5 | 0.69 | 16.2 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/400 | 1/400 | 5 | 0.69 | 14.5 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
| RB-40GM-04TYPE | 43 | DC Brushed Motor | 24 | 1/500 | 1/500 | 5 | 0.69 | 11.8 | CW | 91 | 350 | Spur Gearbox(Eccentric Output Shaft) |
