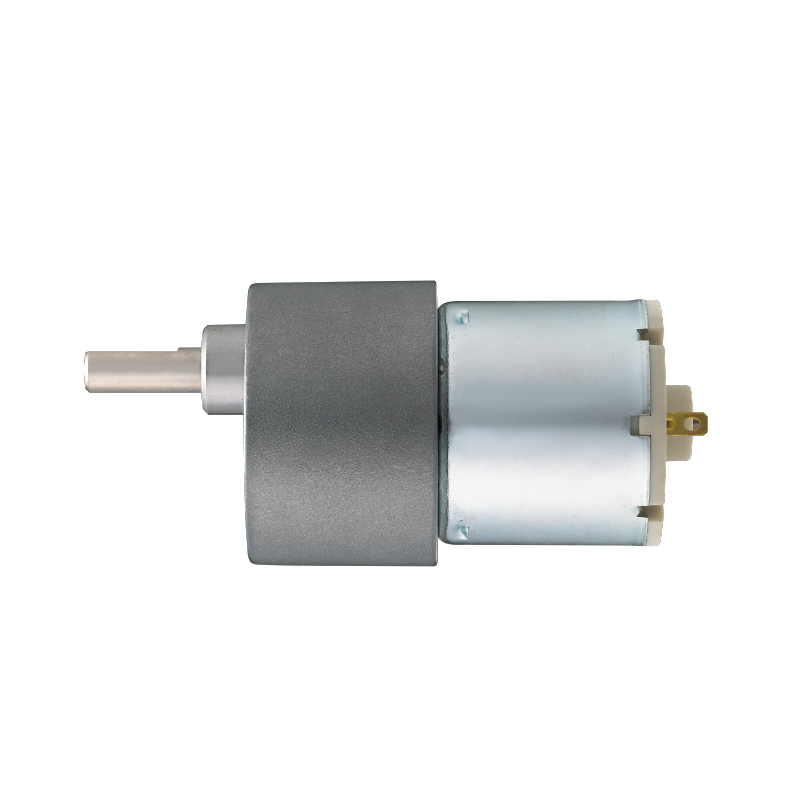

RB-37PGM-12TYPE
DC Carbon-Brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

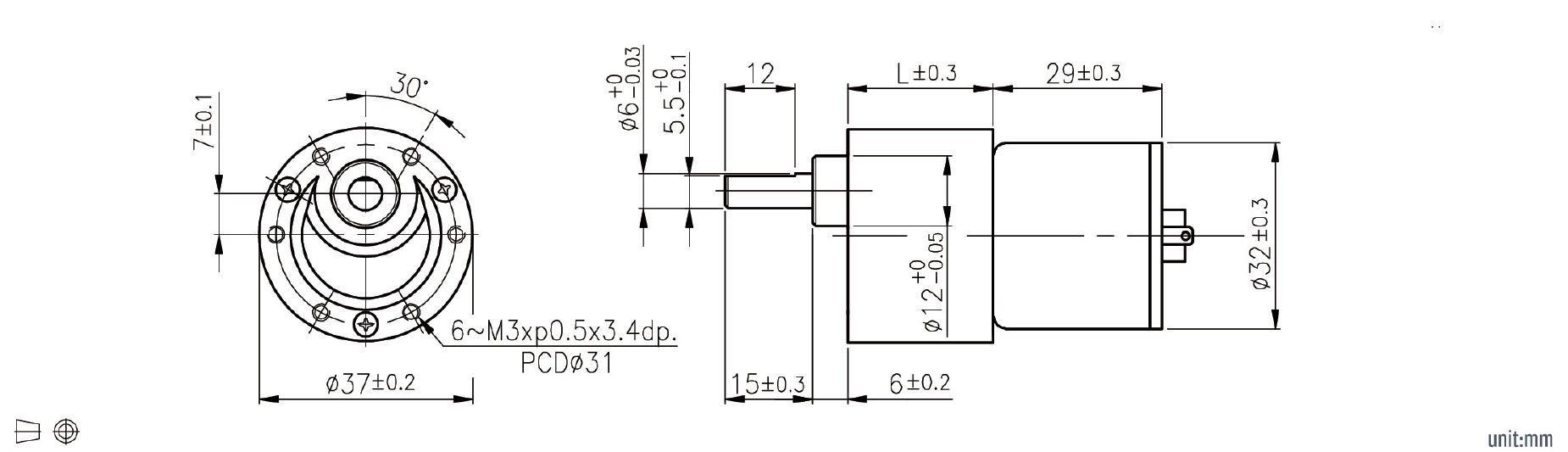

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/18 | 1/18 | 3 | 0.08 | 278 | CCW | 51 | 166 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/30 | 1/30 | 3 | 0.12 | 170 | CCW | 51 | 166 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/50 | 1/50 | 4 | 0.2 | 98 | CW | 53.5 | 173 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/60 | 1/60 | 4 | 0.2 | 84 | CW | 53.5 | 173 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/75 | 1/75 | 4 | 0.29 | 65 | CW | 53.5 | 173 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/90 | 1/90 | 4 | 0.29 | 57 | CW | 53.5 | 173 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/100 | 1/100 | 4 | 0.29 | 51 | CW | 53.5 | 173 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/120 | 1/120 | 5 | 0.39 | 42 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/150 | 1/150 | 5 | 0.39 | 35 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/180 | 1/180 | 5 | 0.39 | 31 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/200 | 1/200 | 5 | 0.39 | 29 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/250 | 1/250 | 5 | 0.39 | 23 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/300 | 1/300 | 5 | 0.39 | 20 | CCW | 56 | 179 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/500 | 1/500 | 6 | 0.39 | 12 | CW | 58.5 | 185 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/600 | 1/600 | 6 | 0.39 | 10 | CW | 58.5 | 185 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/750 | 1/750 | 6 | 0.39 | 8 | CW | 58.5 | 185 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/1000 | 1/1000 | 6 | 0.39 | 6.2 | CW | 58.5 | 185 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/1500 | 1/1500 | 7 | 0.39 | 4.1 | CCW | 61 | 193 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37PGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/3000 | 1/3000 | 7 | 0.39 | 2.1 | CCW | 61 | 193 | Spur Gearbox(Eccentric Output Shaft) |
