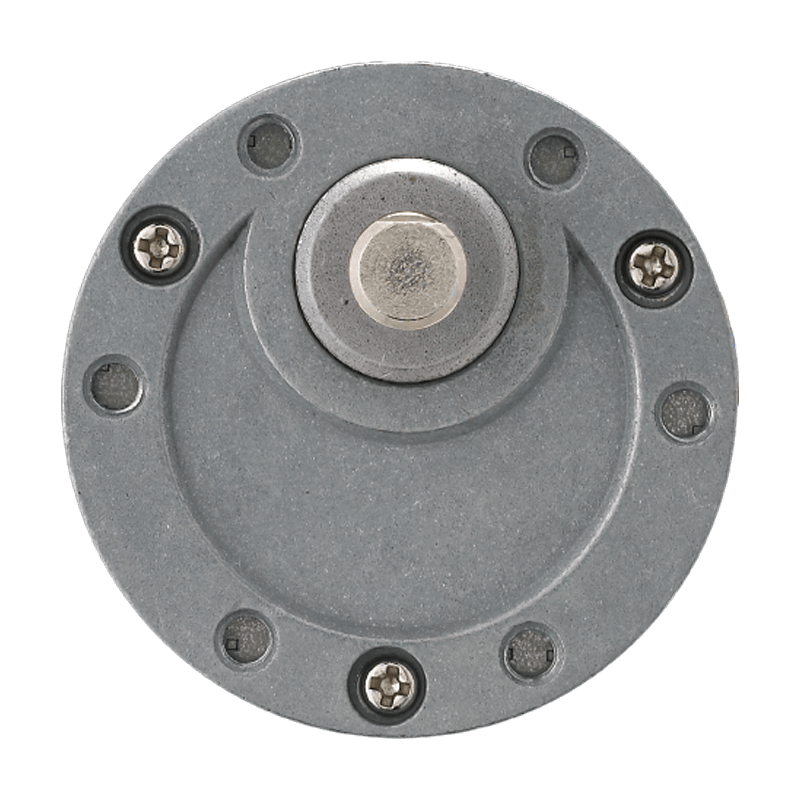

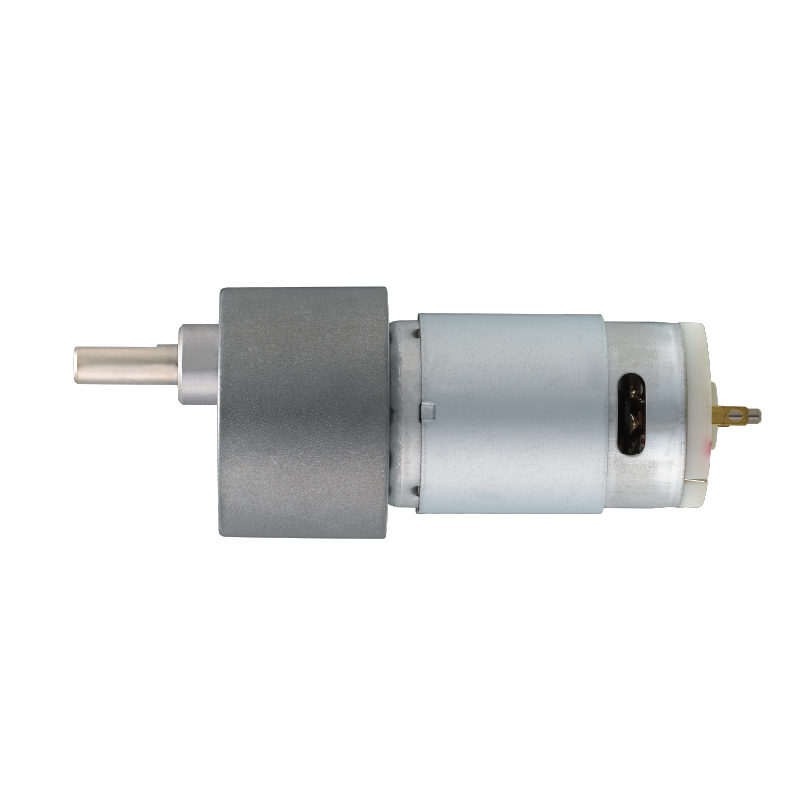

RB-37GM-13TYPE
DC Carbon-Brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

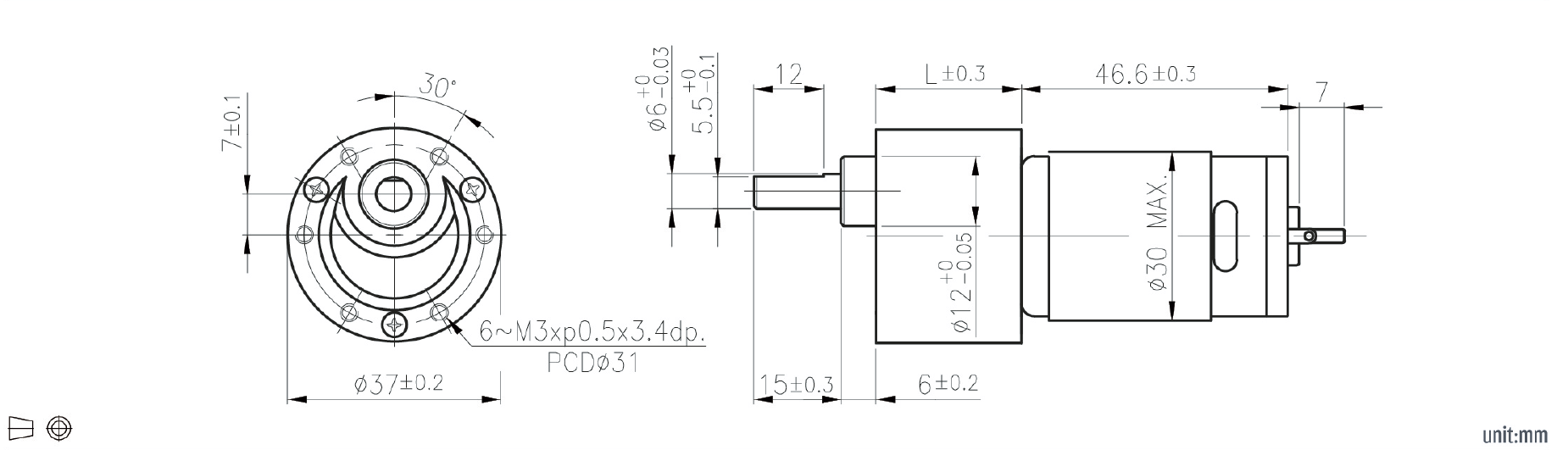

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/10 | 1/10 | 2 | 0.09 | 595 | CCW | 66.1 | 196 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/18 | 1/18 | 3 | 0.1 | 336 | CW | 68.6 | 203 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/30 | 1/30 | 3 | 0.2 | 200 | CW | 68.6 | 203 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/50 | 1/50 | 4 | 0.29 | 122 | CCW | 71.1 | 210 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/60 | 1/60 | 4 | 0.29 | 101 | CCW | 71.1 | 210 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/75 | 1/75 | 4 | 0.39 | 82 | CCW | 71.1 | 210 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/90 | 1/90 | 4 | 0.39 | 69 | CCW | 71.1 | 210 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/100 | 1/100 | 4 | 0.59 | 60 | CCW | 71.1 | 210 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/120 | 1/120 | 5 | 0.59 | 50 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/150 | 1/150 | 5 | 0.59 | 41 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/180 | 1/180 | 5 | 0.59 | 35 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/200 | 1/200 | 5 | 0.59 | 31 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/250 | 1/250 | 5 | 0.59 | 25 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/300 | 1/300 | 5 | 0.59 | 21 | CW | 73.6 | 216 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/500 | 1/500 | 6 | 0.59 | 12.6 | CCW | 76.1 | 222 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/600 | 1/600 | 6 | 0.59 | 10.5 | CCW | 76.1 | 222 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/750 | 1/750 | 6 | 0.59 | 8.4 | CCW | 76.1 | 222 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/1000 | 1/1000 | 6 | 0.59 | 6.4 | CCW | 76.1 | 222 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/1500 | 1/1500 | 7 | 0.59 | 4.3 | CW | 78.6 | 230 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-13TYPE | 37 | DC Brushed Motor | 12 | 1/3000 | 1/3000 | 7 | 0.59 | 2.2 | CW | 78.6 | 230 | Spur Gearbox(Eccentric Output Shaft) |
