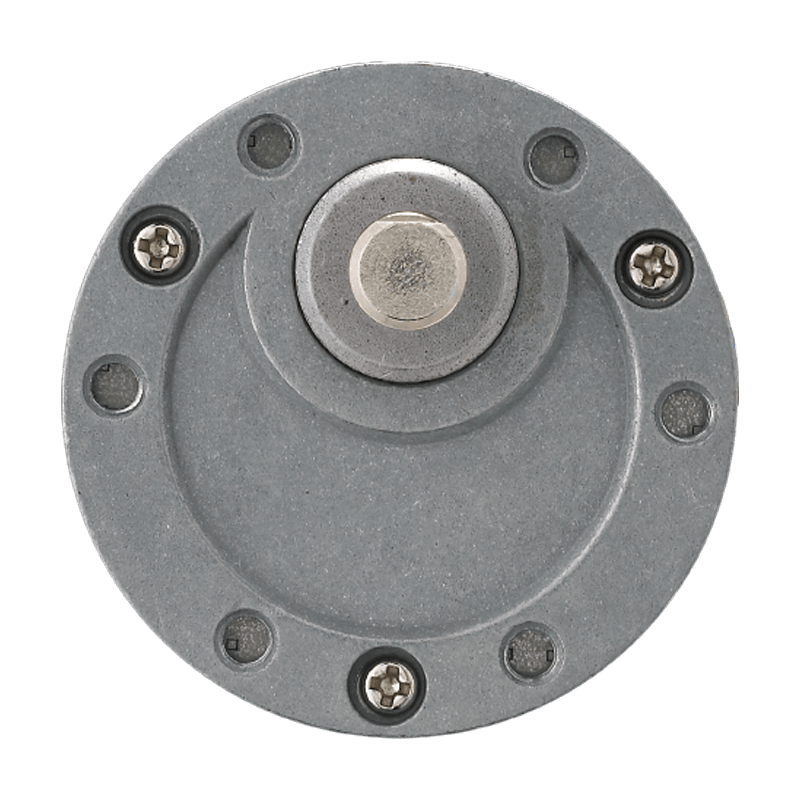

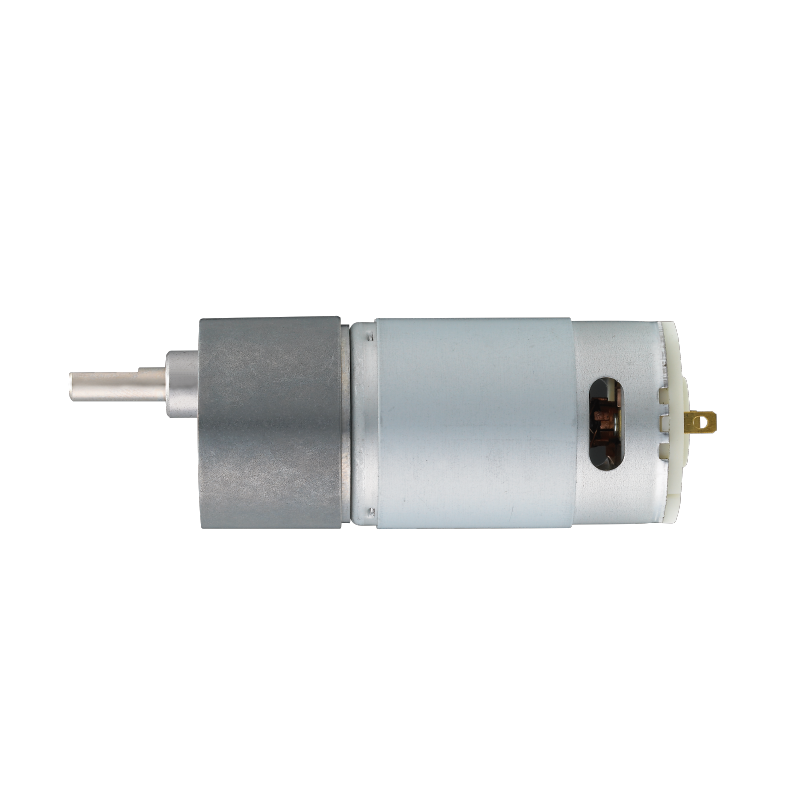

RB-37GM-07TYPE
DC Carbon-Brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

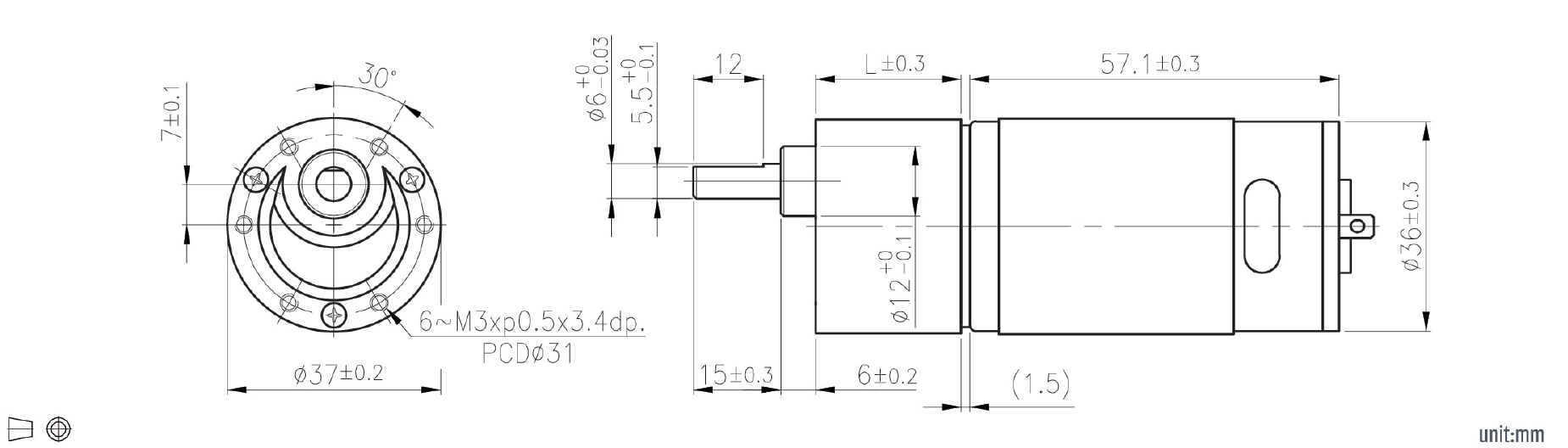

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/10 | 1/10 | 2 | 0.1 | 528 | CCW | 78.1 | 306 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/18 | 1/18 | 3 | 0.1 | 313 | CW | 80.6 | 313 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/30 | 1/30 | 3 | 0.2 | 185 | CW | 80.6 | 313 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/50 | 1/50 | 4 | 0.29 | 109 | CCW | 83.1 | 320 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/60 | 1/60 | 4 | 0.29 | 95 | CCW | 83.1 | 320 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/75 | 1/75 | 4 | 0.39 | 76 | CCW | 83.1 | 320 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/90 | 1/90 | 4 | 0.39 | 63 | CCW | 83.1 | 320 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/100 | 1/100 | 4 | 0.59 | 55 | CCW | 83.1 | 320 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/120 | 1/120 | 5 | 0.59 | 47 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/150 | 1/150 | 5 | 0.59 | 36 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/180 | 1/180 | 5 | 0.59 | 31.5 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/200 | 1/200 | 5 | 0.59 | 29 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/250 | 1/250 | 5 | 0.59 | 22.5 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/300 | 1/300 | 5 | 0.59 | 19.5 | CW | 85.6 | 326 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/500 | 1/500 | 6 | 0.59 | 11.5 | CCW | 88.1 | 332 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/600 | 1/600 | 6 | 0.59 | 9.8 | CCW | 88.1 | 332 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/750 | 1/750 | 6 | 0.59 | 8 | CCW | 88.1 | 332 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/1000 | 1/1000 | 6 | 0.59 | 5.9 | CCW | 88.1 | 332 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/1500 | 1/1500 | 7 | 0.59 | 3.9 | CW | 90.6 | 340 | Spur Gearbox(Eccentric Output Shaft) |
| RB-37GM-07TYPE | 37 | DC Brushed Motor | 12 | 1/3000 | 1/3000 | 7 | 0.59 | 2 | CW | 90.6 | 340 | Spur Gearbox(Eccentric Output Shaft) |
