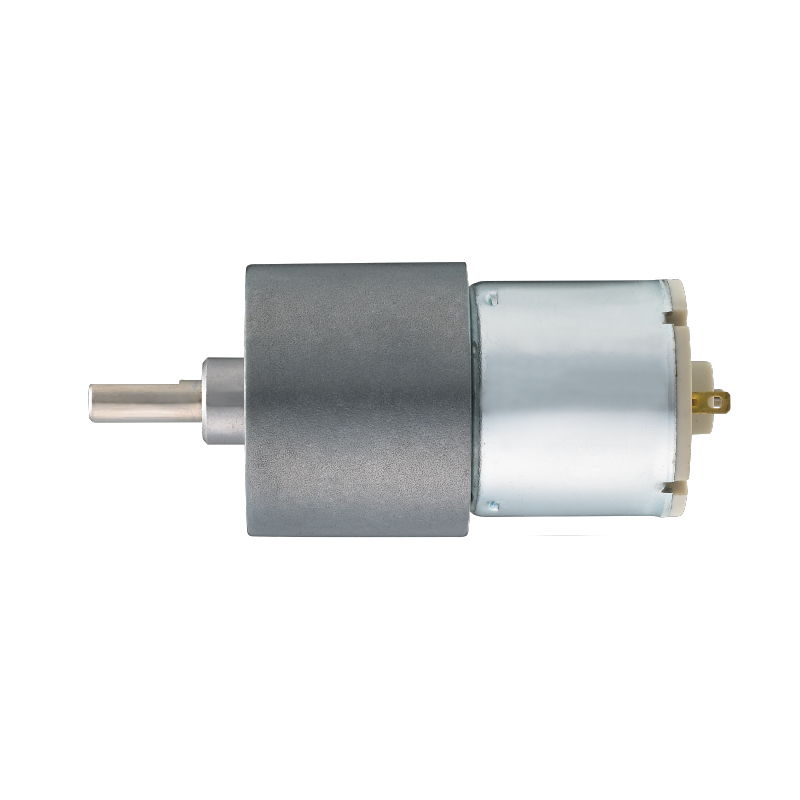

RA-37GM-11TYPE

DC Carbon-Brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/6 1/6.25 2 0.03 800 CW 51.3 172 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/16 1/15.63 3 0.07 310 CCW 54.1 178 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/21 1/20.83 3 0.09 245 CCW 54.1 178 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/31 1/31.25 4 0.12 155 CW 56.6 184 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/56 1/56.25 4 0.22 90 CW 56.6 184 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/75 1/75 5 0.25 67 CCW 59 192 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/104 1/104.17 5 0.35 49 CCW 59 192 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/125 1/125 5 0.43 41 CCW 59 192 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/156 1/156.25 5 0.54 33 CCW 59 192 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/187 1/187.5 5 0.59 28 CCW 59 192 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/219 1/219 6 0.59 24 CW 61.5 196 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/250 1/250 6 0.59 21.5 CW 61.5 196 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/312 1/312 6 0.59 17.6 CW 61.5 196 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/469 1/469 6 0.59 12.3 CW 61.5 196 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/625 1/625 6 0.59 9.1 CW 61.5 196 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/750 1/750 7 0.59 7.8 CCW 64 203 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/938 1/937.5 7 0.59 6.3 CCW 64 203 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/1875 1/1875 7 0.59 3.2 CCW 64 203 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/3750 1/3750 8 0.59 1.6 CW 66.5 206 Spur Gearbox(Center Output Shaft)
RA-37GM-11TYPE 37 DC Brushed Motor 12 1/5625 1/5625 8 0.59 1 CW 66.5 206 Spur Gearbox(Center Output Shaft)
