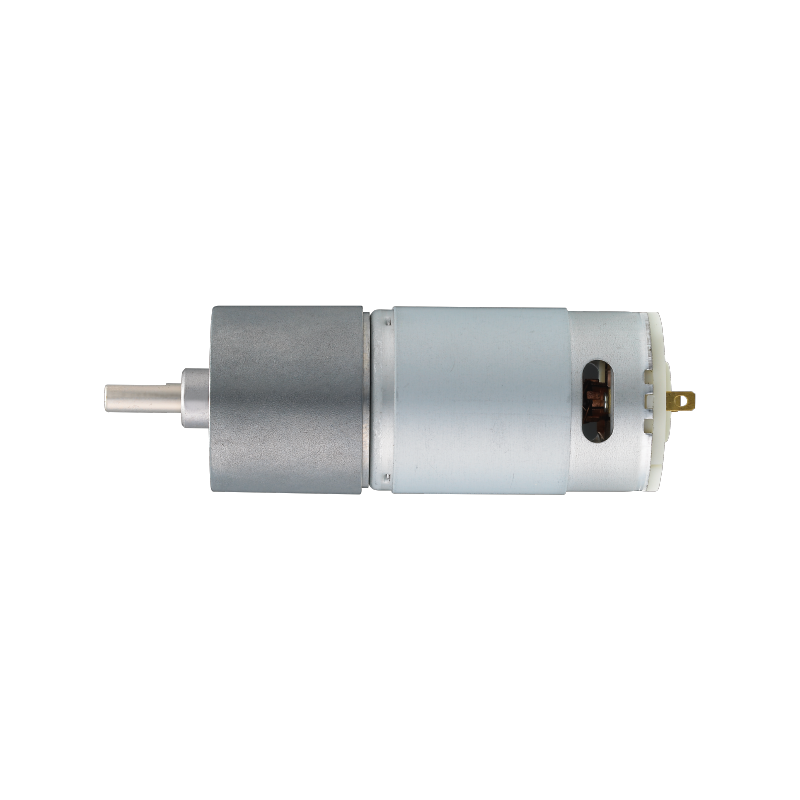

RA-37GM-09TYPE
DC Carbon-Brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

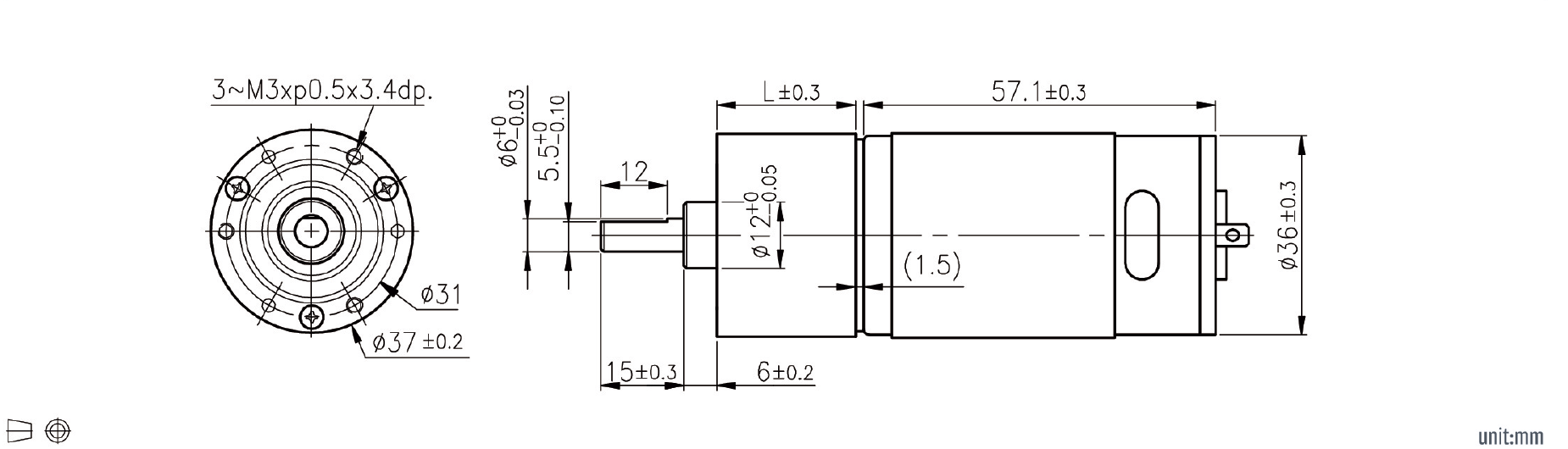

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/6 | 1/6.25 | 2 | 0.1 | 805 | CCW | 80.4 | 317 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/16 | 1/15.63 | 3 | 0.2 | 338 | CW | 83.2 | 323 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/21 | 1/20.83 | 3 | 0.2 | 260 | CW | 83.2 | 323 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/31 | 1/31.25 | 4 | 0.29 | 175 | CCW | 85.7 | 329 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/56 | 1/56.25 | 4 | 0.39 | 97 | CCW | 85.7 | 329 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/75 | 1/75 | 5 | 0.49 | 73 | CW | 88.1 | 337 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/104 | 1/104.17 | 5 | 0.49 | 55 | CW | 88.1 | 337 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/125 | 1/125 | 5 | 0.59 | 46 | CW | 88.1 | 337 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/156 | 1/156.25 | 5 | 0.59 | 38 | CW | 88.1 | 337 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/187 | 1/187.5 | 5 | 0.59 | 32 | CW | 88.1 | 337 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/219 | 1/219 | 6 | 0.59 | 26.8 | CCW | 90.6 | 341 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/250 | 1/250 | 6 | 0.59 | 23.4 | CCW | 90.6 | 341 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/312 | 1/312 | 6 | 0.59 | 18.8 | CCW | 90.6 | 341 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/469 | 1/469 | 6 | 0.59 | 12.5 | CCW | 90.6 | 341 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/625 | 1/625 | 6 | 0.59 | 9.5 | CCW | 90.6 | 341 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/750 | 1/750 | 7 | 0.59 | 7.8 | CW | 93.1 | 348 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/938 | 1/937.5 | 7 | 0.59 | 6.3 | CW | 93.1 | 348 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/1875 | 1/1875 | 7 | 0.59 | 3.2 | CW | 93.1 | 348 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/3750 | 1/3750 | 8 | 0.59 | 1.6 | CCW | 95.6 | 351 | Spur Gearbox(Center Output Shaft) |
| RA-37GM-09TYPE | 37 | DC Brushed Motor | 24 | 1/5625 | 1/5625 | 8 | 0.59 | 1 | CCW | 95.6 | 351 | Spur Gearbox(Center Output Shaft) |
