IG-42GM-60TYPE
DC Brushless Motor
- Ideal choice for high torque, with size options ranging from 16mm to 52mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

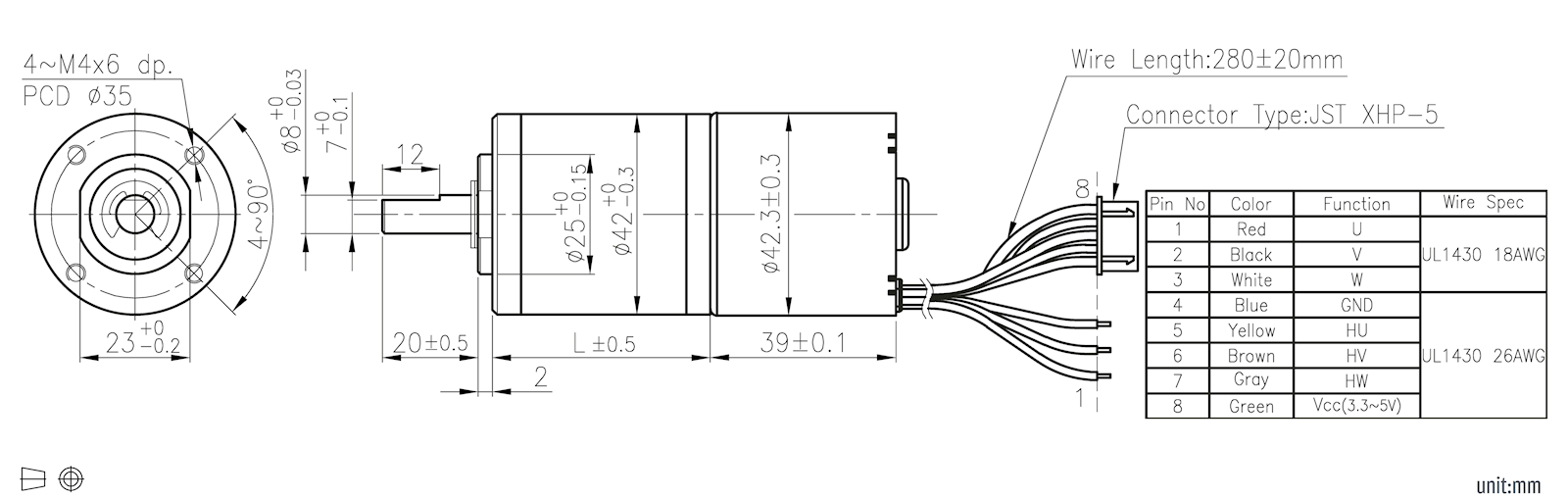

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/4 | 1/4 | 1 | 0.14 | 2250 | CW/CCW | 71.4 | 337 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/14 | 1/14 | 2 | 0.43 | 640 | CW/CCW | 78.1 | 389 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/17 | 1/17.33 | 2 | 0.53 | 515 | CW/CCW | 78.1 | 389 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/24 | 1/24 | 2 | 0.73 | 375 | CW/CCW | 78.1 | 389 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/49 | 1/49 | 3 | 1.27 | 180 | CW/CCW | 84.8 | 429 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/61 | 1/60.67 | 3 | 1.57 | 145 | CW/CCW | 84.8 | 429 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/84 | 1/84 | 3 | 1.76 | 110 | CW/CCW | 84.8 | 429 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/104 | 1/104 | 3 | 1.96 | 90 | CW/CCW | 84.8 | 429 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/144 | 1/144 | 3 | 1.96 | 65 | CW/CCW | 84.8 | 429 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/212 | 1/212.33 | 4 | 2.45 | 45 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/294 | 1/294 | 4 | 2.45 | 35 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/504 | 1/504 | 4 | 2.94 | 20 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/624 | 1/624 | 4 | 2.94 | 17 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/720 | 1/720 | 4 | 2.94 | 14 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/864 | 1/864 | 4 | 2.94 | 12 | CW/CCW | 91.5 | 479 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/1062 | 1/1061.67 | 5 | 2.94 | 10 | CW/CCW | 98.5 | 524 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/1470 | 1/1470 | 5 | 2.94 | 7.4 | CW/CCW | 98.5 | 524 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/2500 | 1/2500 | 5 | 2.94 | 4.4 | CW/CCW | 98.5 | 524 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/3000 | 1/3000 | 5 | 2.94 | 3.7 | CW/CCW | 98.5 | 524 | Planetary |
| IG-42GM-60TYPE | 42 | DC Brushless Motor | 12 | 1/3600 | 1/3600 | 5 | 2.94 | 3.1 | CW/CCW | 98.5 | 524 | Planetary |
