IG-22GM-41TYPE
DC Brushless Motor
- Ideal choice for high torque, with size options ranging from 16mm to 52mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

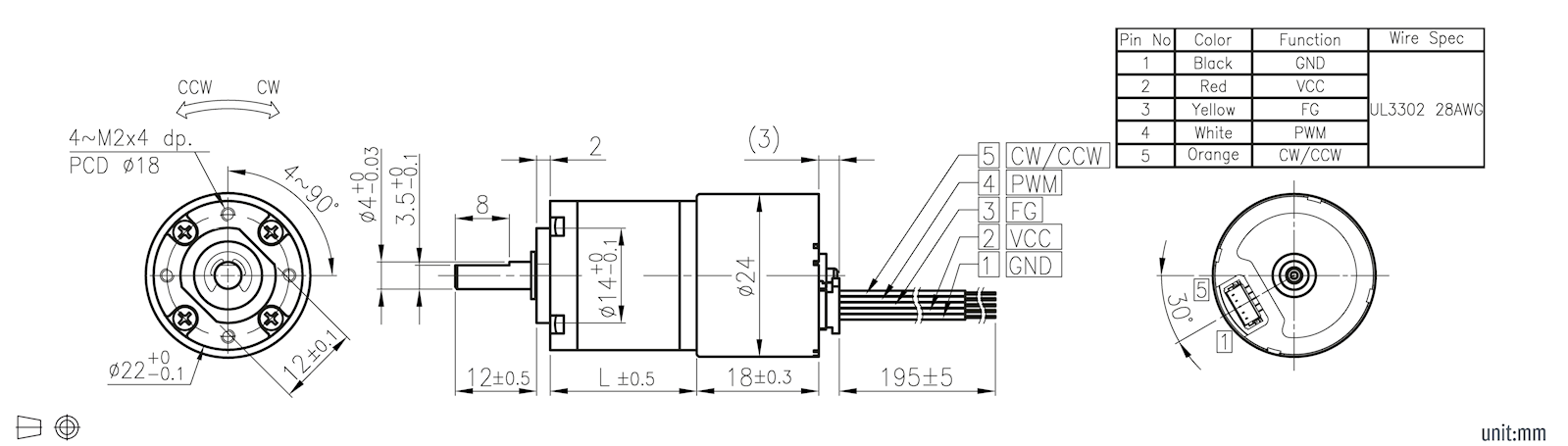

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/4 | 1/4.39 | 1 | 0.01 | 1335 | CW/CCW | 44.9 | 55 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/14 | 1/14.06 | 2 | 0.03 | 381 | CW/CCW | 48.55 | 59 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/16 | 1/16.44 | 2 | 0.03 | 334 | CW/CCW | 48.55 | 59 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/19 | 1/19.22 | 2 | 0.04 | 281 | CW/CCW | 48.55 | 59 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/53 | 1/52.73 | 3 | 0.09 | 101 | CW/CCW | 52.2 | 63 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/62 | 1/61.66 | 3 | 0.11 | 86 | CW/CCW | 52.2 | 63 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/72 | 1/72.09 | 3 | 0.13 | 74 | CW/CCW | 52.2 | 63 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/84 | 1/84.29 | 3 | 0.15 | 64 | CW/CCW | 52.2 | 63 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/104 | 1/103.81 | 3 | 0.18 | 51 | CW/CCW | 52.2 | 78 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/198 | 1/197.75 | 4 | 0.24 | 27 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/231 | 1/231.22 | 4 | 0.24 | 23 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/270 | 1/270.35 | 4 | 0.24 | 20 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/316 | 1/316.1 | 4 | 0.24 | 17 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/370 | 1/369.59 | 4 | 0.24 | 14 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/455 | 1/455.19 | 4 | 0.24 | 12 | CW/CCW | 55.85 | 88 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/742 | 1/741.58 | 5 | 0.29 | 7.2 | CW/CCW | 59.5 | 93 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/1014 | 1/1013.81 | 5 | 0.29 | 5.3 | CW/CCW | 59.5 | 93 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/1249 | 1/1248.59 | 5 | 0.29 | 4.3 | CW/CCW | 59.5 | 93 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/1621 | 1/1620.53 | 5 | 0.29 | 3.3 | CW/CCW | 59.5 | 93 | Planetary |
| IG-22GM-41TYPE | 22 | DC Brushless Motor | 12 | 1/1996 | 1/1995.81 | 5 | 0.29 | 2.7 | CW/CCW | 59.5 | 93 | Planetary |
