IG-16GM-60TYPE
DC Brushless Motor
- Ideal choice for high torque, with size options ranging from 16mm to 52mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

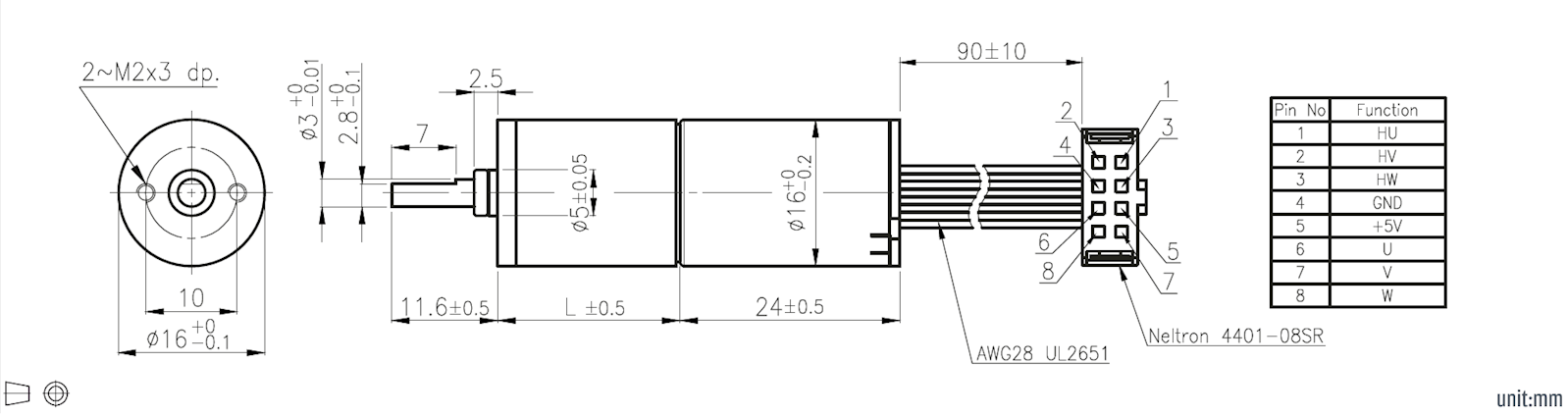

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/4 | 1/4.38 | 1 | 0.01 | 2210 | CW/CCW | 41.75 | 39 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/14 | 1/14.06 | 2 | 0.03 | 685 | CW/CCW | 45.4 | 43 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/16 | 1/16.44 | 2 | 0.04 | 585 | CW/CCW | 45.4 | 43 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/19 | 1/19.22 | 2 | 0.05 | 500 | CW/CCW | 45.4 | 43 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/29 | 1/29.16 | 2 | 0.07 | 330 | CW/CCW | 45.4 | 43 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/53 | 1/52.73 | 3 | 0.11 | 175 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/62 | 1/61.66 | 3 | 0.13 | 155 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/72 | 1/72.09 | 3 | 0.15 | 130 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/84 | 1/84.29 | 3 | 0.16 | 120 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/104 | 1/103.81 | 3 | 0.16 | 100 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/128 | 1/127.86 | 3 | 0.16 | 85 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/157 | 1/157.46 | 3 | 0.16 | 70 | CW/CCW | 49.05 | 47 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/231 | 1/231.22 | 4 | 0.2 | 45 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/316 | 1/316.1 | 4 | 0.2 | 35 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/370 | 1/369.6 | 4 | 0.2 | 30 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/455 | 1/455.19 | 4 | 0.2 | 25 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/561 | 1/560.6 | 4 | 0.2 | 20 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/690 | 1/690.42 | 4 | 0.2 | 17 | CW/CCW | 52.7 | 51 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/1014 | 1/1013.81 | 5 | 0.24 | 12 | CW/CCW | 56.35 | 55 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/1621 | 1/1620.53 | 5 | 0.24 | 7.5 | CW/CCW | 56.35 | 55 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/1996 | 1/1995.81 | 5 | 0.24 | 6.3 | CW/CCW | 56.35 | 55 | Planetary |
| IG-16GM-60TYPE | 16 | DC Brushless Motor | 12 | 1/3027 | 1/3027.22 | 5 | 0.24 | 4.2 | CW/CCW | 56.35 | 55 | Planetary |
