WG-50GM-41TYPE
DC Brushless Motor
- Single or dual output shaft are both available.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- We welcome customization to meet specific requirements.

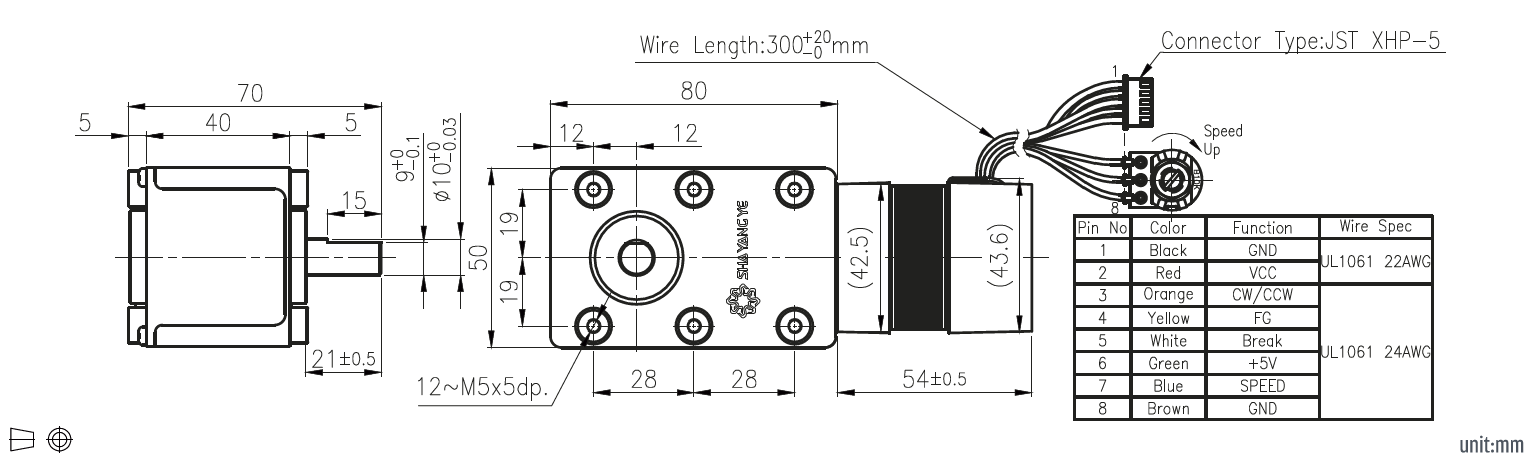

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/50 | 1/50 | 0.2 | 60 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/75 | 1/75 | 0.29 | 40 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/100 | 1/100 | 0.39 | 30 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/120 | 1/120 | 0.47 | 25 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/200 | 1/200 | 0.78 | 15 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/350 | 1/350 | 1.37 | 8.6 | 134 | 710 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/600 | 1/600 | 2.35 | 5 | 134 | 740 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/700 | 1/700 | 2.74 | 4.3 | 134 | 740 | Right Angle | ||
| WG-50GM-41TYPE | 50 | DC Brushless Motor | 12 | 1/1050 | 1/1050 | 3.92 | 2.9 | 134 | 740 | Right Angle |
