WG-50GM-04TYPE
DC Carbon-brush Motor
- Single or dual output shaft are both available.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- We welcome customization to meet specific requirements.

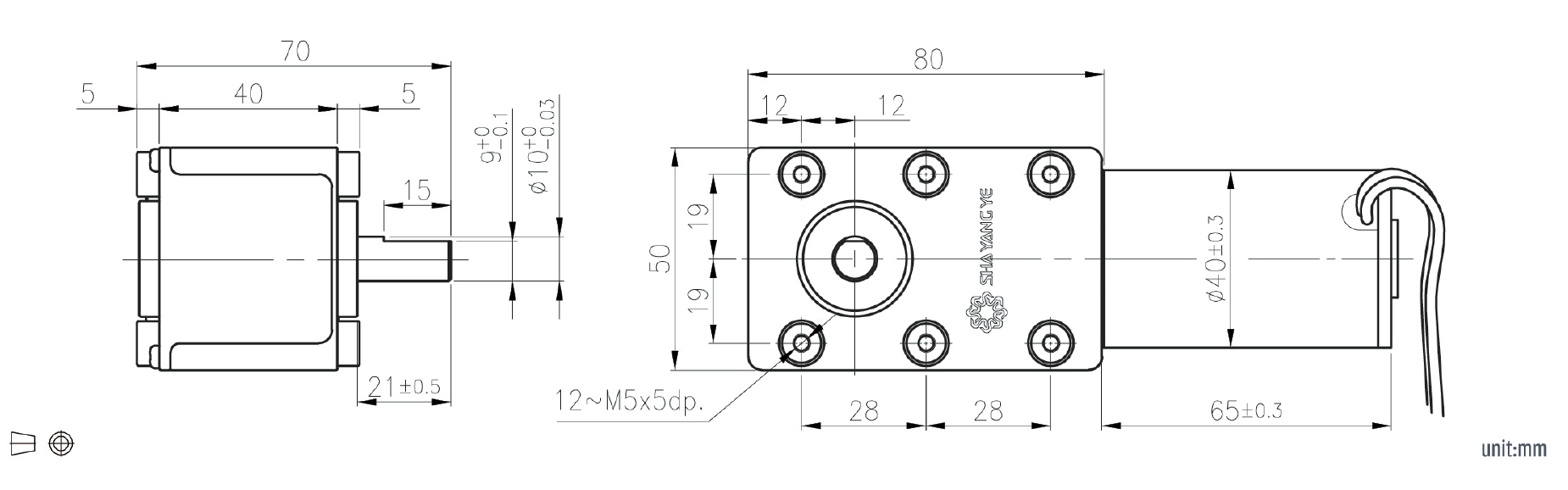

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/50 | 1/50 | 0.34 | 76 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/75 | 1/75 | 0.51 | 50.7 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/100 | 1/100 | 0.69 | 38 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/120 | 1/120 | 0.82 | 31.7 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/200 | 1/200 | 1.37 | 19 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/350 | 1/350 | 2.4 | 10.9 | CW | 145 | 760 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/600 | 1/600 | 3.92 | 6.3 | CCW | 145 | 790 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/700 | 1/700 | 3.92 | 5.4 | CCW | 145 | 790 | Right Angle | |
| WG-50GM-04TYPE | 50 | DC Brushed Motor | 24 | 1/1050 | 1/1050 | 3.92 | 3.6 | CCW | 145 | 790 | Right Angle |
