RB-99WGM-01TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

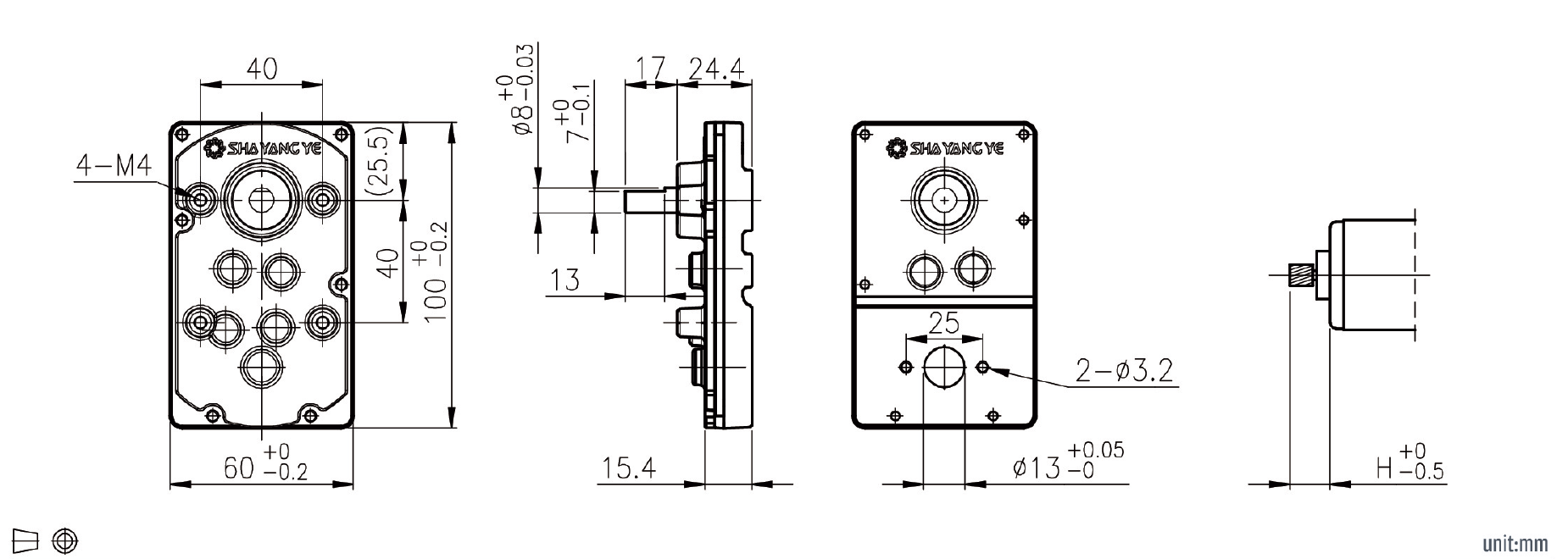

Dimensional drawing
馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/24 | 1/24.18 | 0.29 | 210 | CW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/30 | 1/30 | 0.29 | 170 | CW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/54 | 1/53.85 | 0.59 | 93 | CW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/81 | 1/80.87 | 0.78 | 63 | CW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/100 | 1/100.35 | 0.78 | 52 | CW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/147 | 1/147.45 | 0.78 | 35 | CCW | 72.4 | 545 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/246 | 1/246.15 | 0.98 | 22 | CCW | 72.4 | 560 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/305 | 1/305.45 | 0.98 | 17 | CCW | 72.4 | 560 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-99WGM-01TYPE | 100 | DC Brushed Motor | 12 | 1/459 | 1/458.74 | 0.98 | 12 | CCW | 72.4 | 560 | Spur Gearbox(Eccentric Output Shaft) |
