RB-37GM-12TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

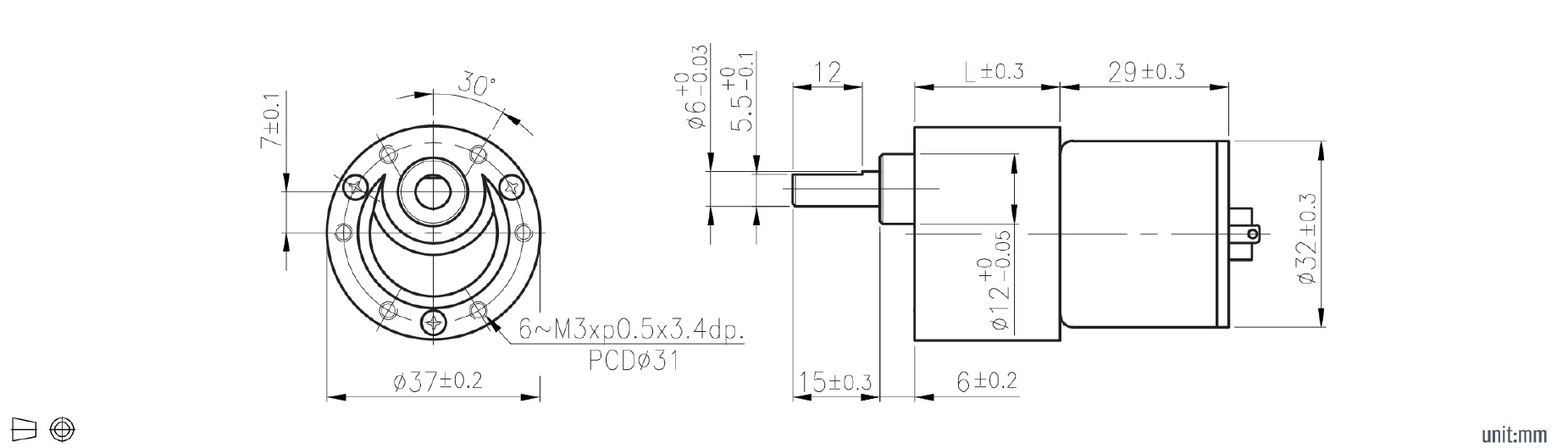

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/10 1/10 0.05 480 CW 19.5 161 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/18 1/18 0.08 250 CCW 22 168 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/30 1/30 0.14 160 CCW 22 168 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/50 1/50 0.2 98 CW 24.5 175 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/60 1/60 0.24 83 CW 24.5 175 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/75 1/75 0.29 65 CW 24.5 175 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/90 1/90 0.35 56 CW 24.5 175 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/100 1/100 0.39 50 CW 24.5 175 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/120 1/120 0.43 41.5 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/150 1/150 0.53 33 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/180 1/180 0.06 28.5 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/200 1/200 0.59 26 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/250 1/250 0.59 22 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/300 1/300 0.59 19 CCW 27 181 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/500 1/500 0.59 11 CW 29.5 187 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/600 1/600 0.59 9.3 CW 29.5 187 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/750 1/750 0.59 7.9 CW 29.5 187 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/1000 1/1000 0.59 5.9 CW 29.5 187 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/1500 1/1500 0.59 4 CCW 32 195 Spur Gearbox(Eccentric Output Shaft)
RB-37GM-12TYPE 37 DC Brushed Motor 24 1/3000 1/3000 0.59 2 CCW 32 195 Spur Gearbox(Eccentric Output Shaft)
