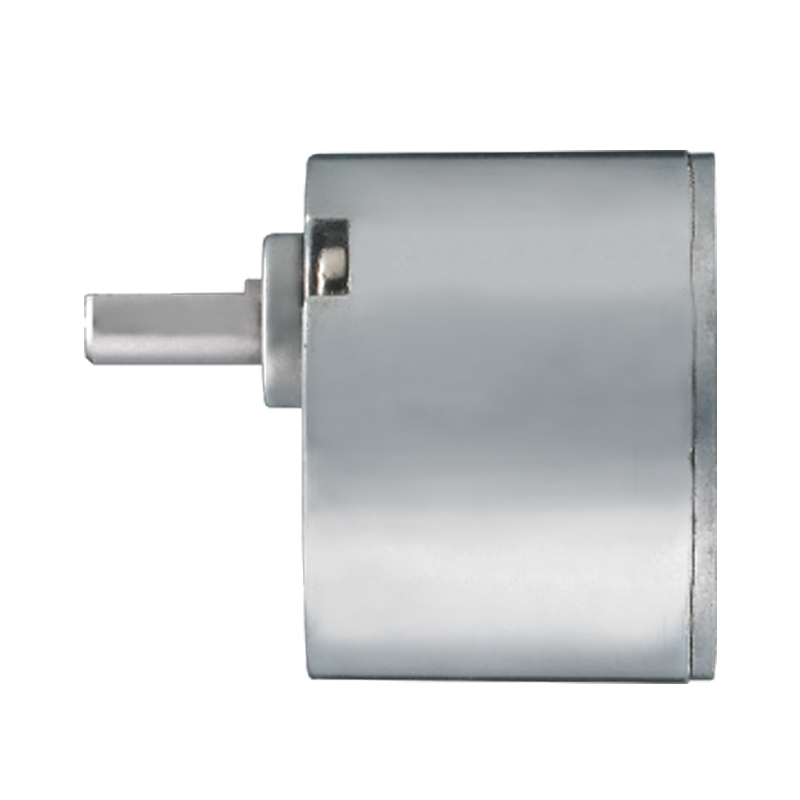

RB-30GM-03TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.
Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/20 | 1/20 | 0.1 | 258 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/30 | 1/30 | 0.15 | 168 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/36 | 1/36 | 0.15 | 150 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/50 | 1/50 | 0.2 | 107 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/60 | 1/60 | 0.2 | 91 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/75 | 1/75 | 0.29 | 73 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/90 | 1/90 | 0.29 | 62 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/100 | 1/100 | 0.29 | 56 | CCW | 23 | 162 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/120 | 1/120 | 0.39 | 46.3 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/150 | 1/150 | 0.39 | 37.4 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/180 | 1/180 | 0.44 | 31.8 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/200 | 1/200 | 0.44 | 28.7 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/250 | 1/250 | 0.44 | 24 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/300 | 1/300 | 0.44 | 19.5 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/400 | 1/400 | 0.44 | 15.1 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/500 | 1/500 | 0.44 | 12.1 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/600 | 1/600 | 0.44 | 10.3 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/810 | 1/810 | 0.44 | 7.7 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/900 | 1/900 | 0.44 | 6.9 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-30GM-03TYPE | 30 | DC Brushed Motor | 24 | 1/1000 | 1/1000 | 0.44 | 6.3 | CCW | 28 | 171 | Spur Gearbox(Eccentric Output Shaft) |
