RB-22GM-04TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

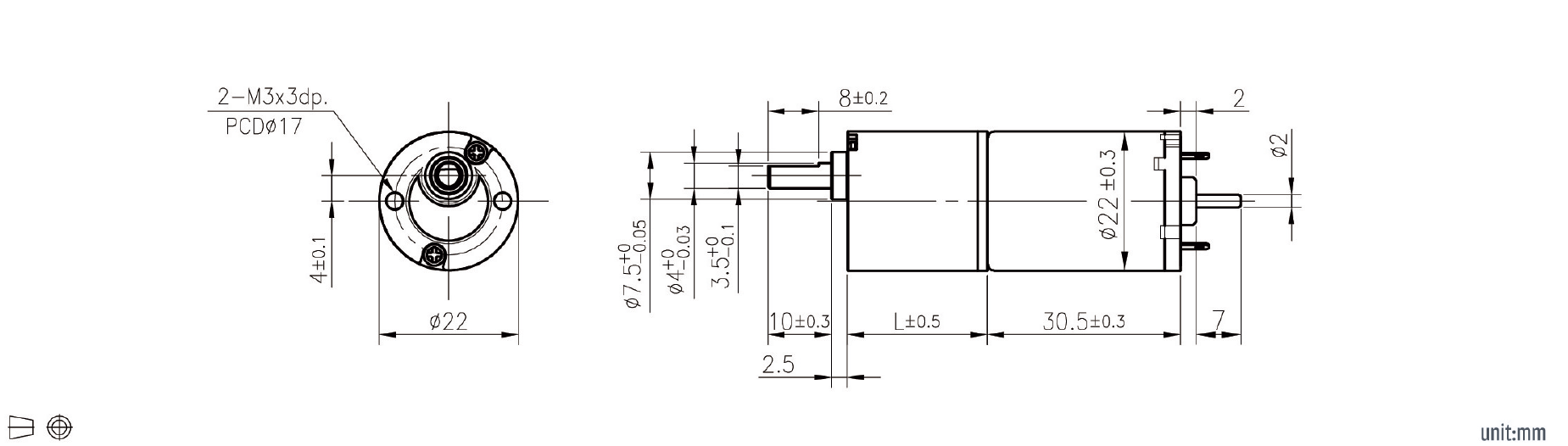

Dimensional drawing

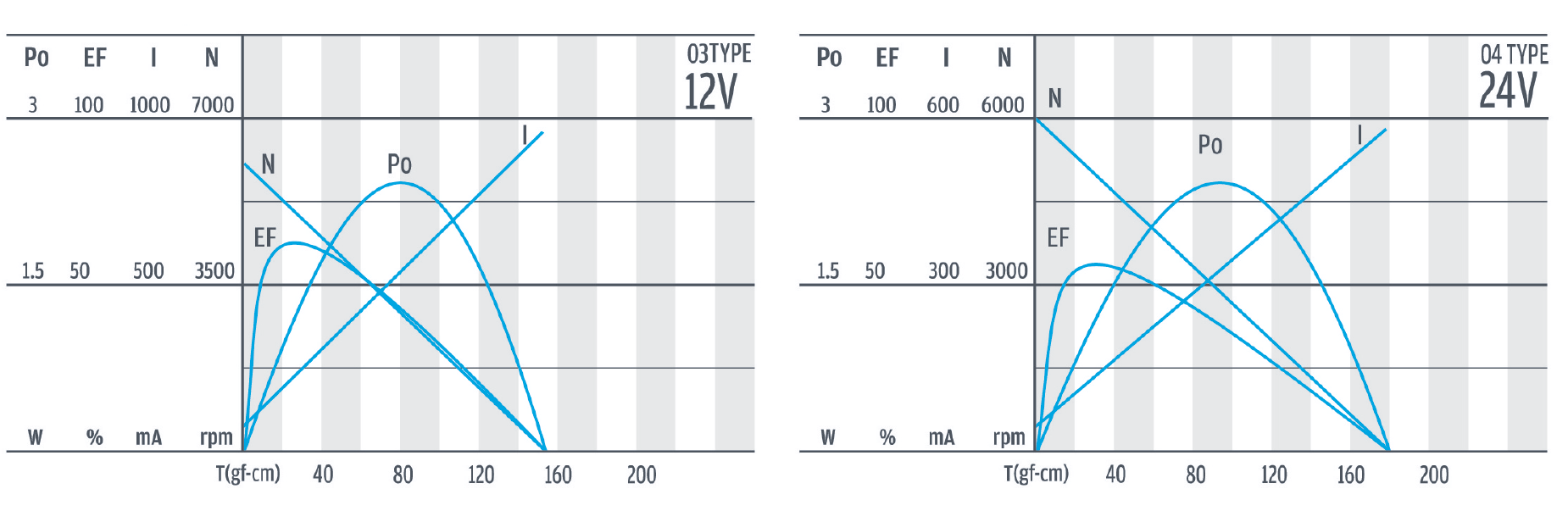

馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/9 | 1/9.04 | 0.02 | 520 | CCW | 17.7 | 66.9 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/19 | 1/18.84 | 0.05 | 250 | CW | 17.7 | 67.5 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/24 | 1/24.41 | 0.06 | 190 | CW | 17.7 | 67.5 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/39 | 1/39.25 | 0.08 | 120 | CCW | 22.1 | 69.3 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/51 | 1/50.86 | 0.11 | 92 | CCW | 22.1 | 69.3 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/82 | 1/81.76 | 0.12 | 57 | CW | 22.1 | 70 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/106 | 1/105.96 | 0.12 | 43 | CW | 22.1 | 70 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/112 | 1/111.90 | 0.12 | 41 | CW | 22.1 | 70 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/137 | 1/137.33 | 0.15 | 33 | CW | 22.1 | 70 | Spur Gearbox(Eccentric Output Shaft) | |
| RB-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/145 | 1/145.02 | 0.15 | 31 | CW | 22.1 | 70 | Spur Gearbox(Eccentric Output Shaft) |
