RA-37AGM-12TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

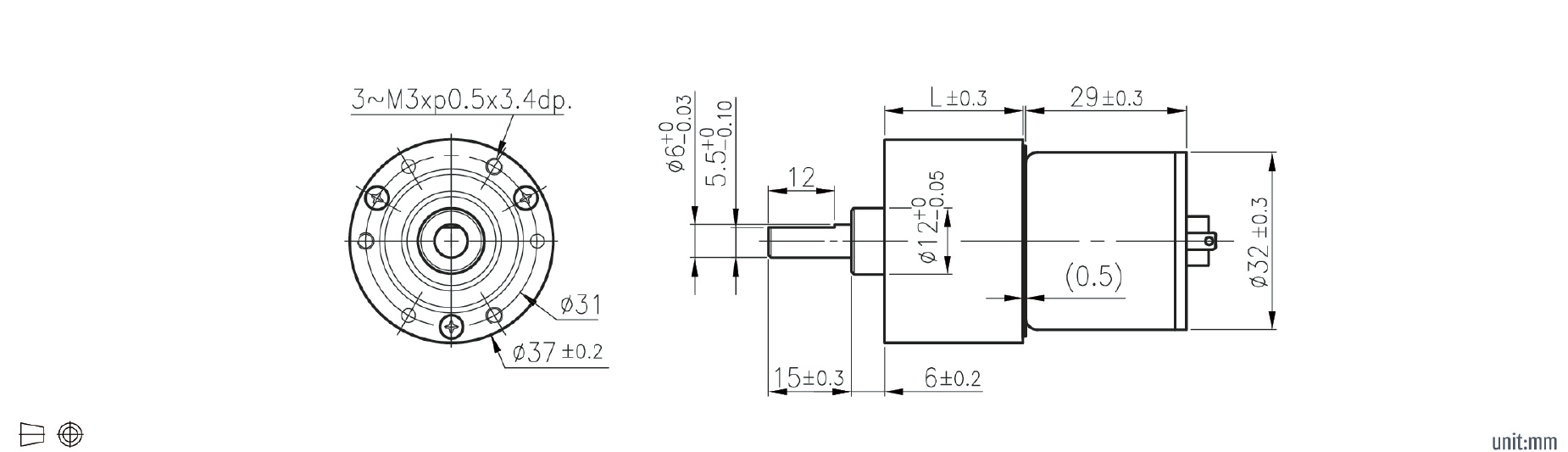

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/16 | 1/15.63 | 0.07 | 308 | CCW | 56.1 | 183 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/21 | 1/20.83 | 0.09 | 240 | CCW | 56.1 | 183 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/31 | 1/31.25 | 0.12 | 150 | CW | 58.5 | 189 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/56 | 1/56.25 | 0.23 | 87 | CW | 58.5 | 189 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/75 | 1/75 | 0.26 | 65 | CCW | 61 | 197 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/104 | 1/104.17 | 0.37 | 48 | CCW | 61 | 197 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/125 | 1/125 | 0.44 | 40 | CCW | 61 | 197 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/156 | 1/156.25 | 0.56 | 32 | CCW | 61 | 197 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/187 | 1/187.5 | 0.59 | 27 | CCW | 61 | 197 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/219 | 1/219 | 0.59 | 23.5 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/250 | 1/250 | 0.59 | 21.5 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/281 | 1/281 | 0.59 | 18.5 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/312 | 1/312 | 0.59 | 17.5 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/375 | 1/375 | 0.59 | 14.7 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/422 | 1/422 | 0.59 | 13.2 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/469 | 1/469 | 0.59 | 12 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/563 | 1/562.5 | 0.59 | 10.2 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) | |
| RA-37AGM-12TYPE | 37 | DC Brushed Motor | 24 | 1/625 | 1/625 | 0.59 | 9 | CW | 63.5 | 201 | Spur Gearbox(Center Output Shaft) |
