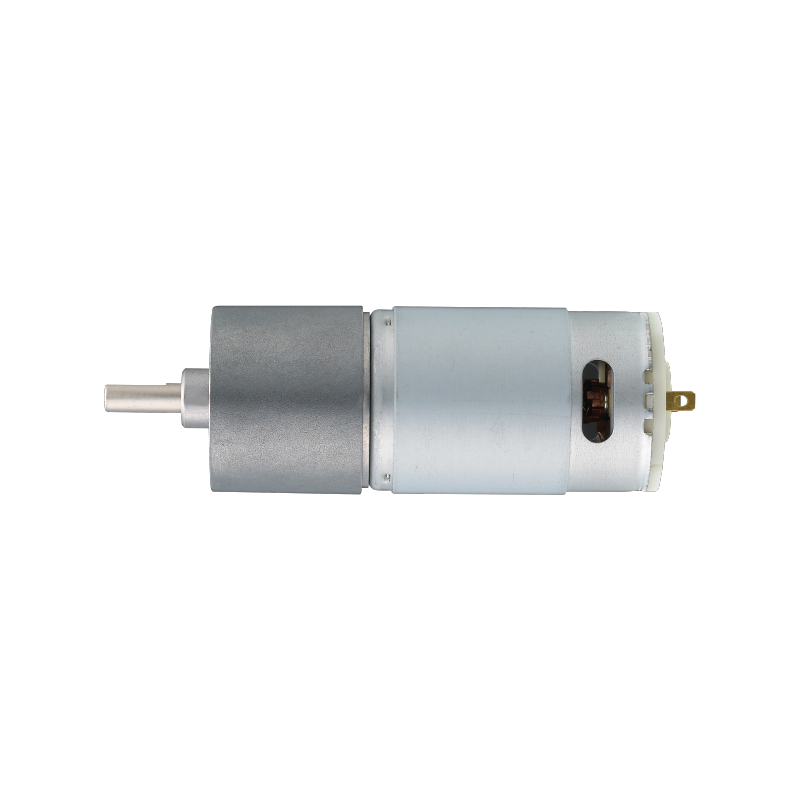

RA-37AGM-09TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

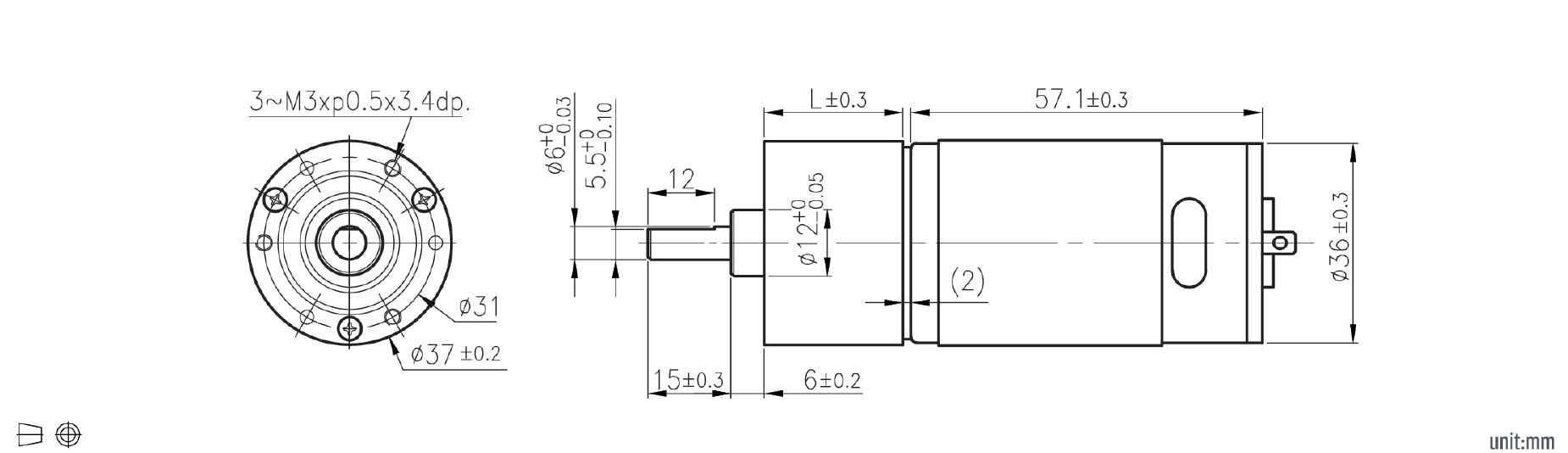

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/16 1/15.63 0.2 338 CW 84.2 328 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/21 1/20.83 0.2 260 CW 84.2 328 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/31 1/31.25 0.29 175 CCW 86.6 334 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/56 1/56.25 0.39 97 CCW 86.6 334 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/75 1/75 0.49 73 CW 89.1 342 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/104 1/104.17 0.49 55 CW 89.1 342 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/125 1/125 0.59 46 CW 89.1 342 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/156 1/156.25 0.59 38 CW 89.1 342 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/187 1/187.5 0.59 32 CW 89.1 342 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/219 1/219 0.59 26.8 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/250 1/250 0.59 23.4 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/281 1/281 0.59 23.4 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/312 1/312 0.59 18.8 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/375 1/375 0.59 15.2 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/422 1/422 0.59 13.7 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/469 1/469 0.59 12.5 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/563 1/562.5 0.59 10.5 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
RA-37AGM-09TYPE 37 DC Brushed Motor 24 1/625 1/625 0.59 9.5 CCW 91.6 346 Spur Gearbox(Center Output Shaft)
