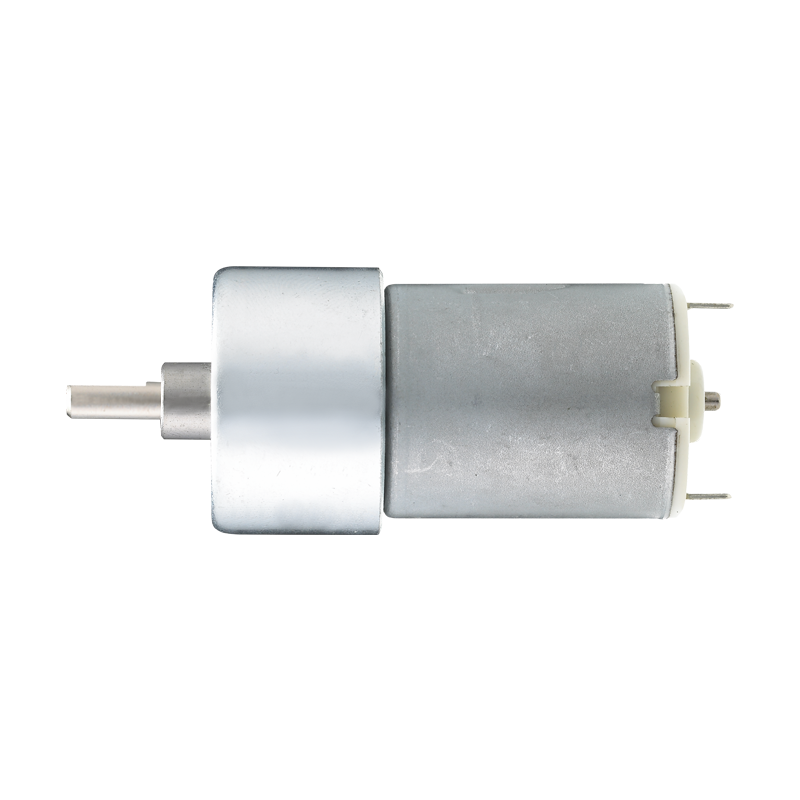

RA-27GM-03TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.
Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/10 | 1/10 | 0.02 | 325 | CW | 47.8 | 75 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/15 | 1/15 | 0.02 | 220 | CCW | 47.8 | 76 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/21 | 1/21.33 | 0.03 | 153 | CCW | 47.8 | 76 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/30 | 1/30 | 0.04 | 105 | CW | 47.8 | 77 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/44 | 1/44 | 0.05 | 77 | CW | 47.8 | 77 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/60 | 1/60 | 0.07 | 56 | CW | 47.8 | 77 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/77 | 1/76.8 | 0.08 | 44 | CW | 47.8 | 77 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/100 | 1/100.12 | 0.1 | 34 | CW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/112 | 1/112.64 | 0.1 | 33 | CW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/150 | 1/150 | 0.12 | 22 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/170 | 1/170.67 | 0.12 | 20 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/200 | 1/200.25 | 0.12 | 18 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/250 | 1/250.31 | 0.12 | 14.5 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/320 | 1/320.40 | 0.12 | 11.5 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/360 | 1/360.44 | 0.12 | 10.5 | CCW | 47.8 | 78 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/500 | 1/500.62 | 0.15 | 7.5 | CW | 49.8 | 79 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/700 | 1/699.05 | 0.15 | 5.6 | CW | 49.8 | 79 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/800 | 1/801.00 | 0.15 | 5 | CW | 49.8 | 79 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/900 | 1/901.12 | 0.15 | 4.5 | CW | 49.8 | 79 | Spur Gearbox(Center Output Shaft) | |
| RA-27GM-03TYPE | 27 | DC Brushed Motor | 24 | 1/1153 | 1/1153.43 | 0.15 | 3.6 | CW | 49.8 | 79 | Spur Gearbox(Center Output Shaft) |
