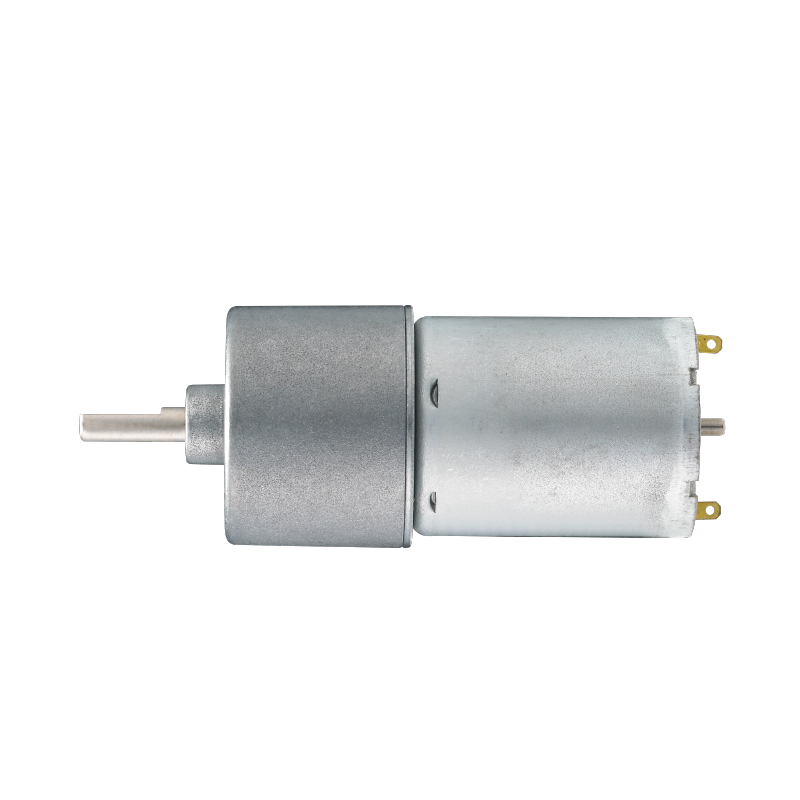

RA-27CGM-02TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

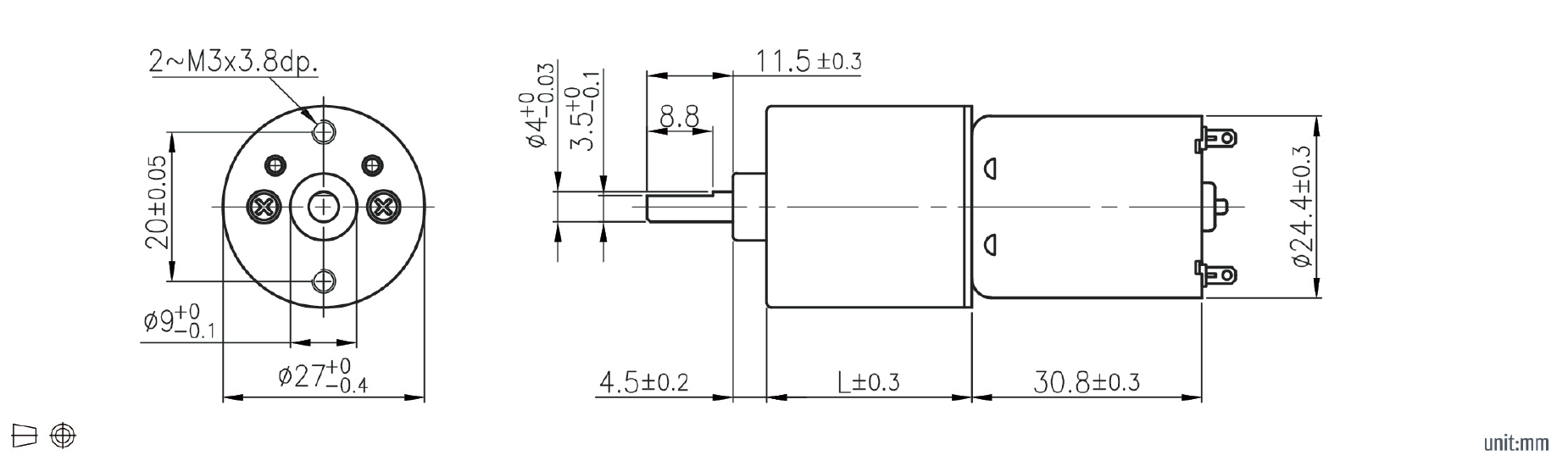

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/10 1/9.58 0.02 365 CW 45.45 83 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/20 1/19.97 0.03 175 CCW 45.45 84 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/42 1/41.59 0.06 84 CW 50.2 85 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/54 1/53.54 0.07 65 CW 50.2 85 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/87 1/86.65 0.11 40 CCW 50.2 85 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/112 1/111.55 0.12 32 CCW 50.2 85 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/181 1/180.53 0.16 21 CW 54.95 86 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/232 1/232.38 0.16 16.8 CW 54.95 86 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/376 1/376.10 0.2 10.6 CCW 54.95 86 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/484 1/484.12 0.2 8.5 CCW 54.95 86 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/784 1/783.55 0.24 5.3 CW 57.4 86 Spur Gearbox(Center Output Shaft)
RA-27CGM-02TYPE 27 DC Brushed Motor 12 1/1009 1/1008.59 0.24 4.1 CW 57.4 86 Spur Gearbox(Center Output Shaft)
