RA-22GM-04TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

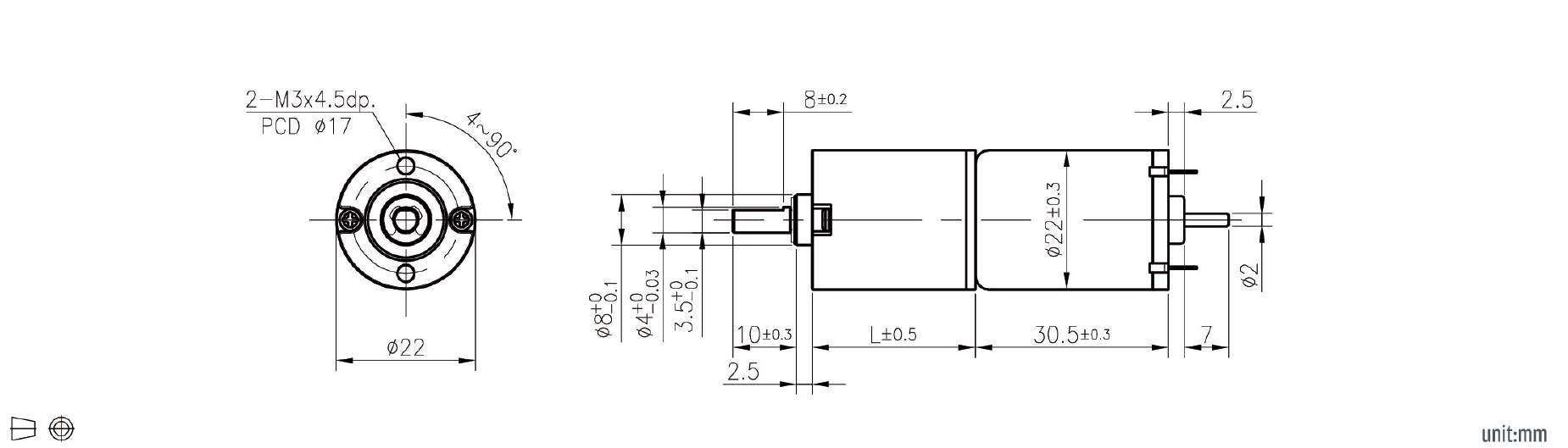

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/9 | 1/9.04 | 0.02 | 520 | CCW | 47.5 | 67.6 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/19 | 1/18.84 | 0.04 | 250 | CW | 49.7 | 68.4 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/24 | 1/24.41 | 0.06 | 190 | CW | 49.7 | 68.4 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/39 | 1/39.25 | 0.08 | 120 | CCW | 51.9 | 69.2 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/51 | 1/50.86 | 0.1 | 92 | CCW | 51.9 | 69.2 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/70 | 1/69.61 | 0.1 | 68 | CCW | 51.9 | 69.2 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/82 | 1/81.76 | 0.12 | 56 | CW | 54.1 | 70 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/106 | 1/105.96 | 0.12 | 43 | CW | 54.1 | 70 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/112 | 1/111.90 | 0.12 | 41 | CW | 54.1 | 70 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/137 | 1/137.33 | 0.15 | 33 | CW | 54.1 | 70 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/145 | 1/145.02 | 0.15 | 31 | CW | 54.1 | 70 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/180 | 1/179.88 | 0.18 | 25 | CCW | 56.3 | 70.7 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/233 | 1/233.12 | 0.18 | 19 | CCW | 56.3 | 70.7 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/286 | 1/286.10 | 0.18 | 15 | CCW | 56.3 | 70.7 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/392 | 1/391.55 | 0.18 | 11 | CCW | 56.3 | 70.7 | Spur Gearbox(Center Output Shaft) | |
| RA-22GM-04TYPE | 22 | DC Brushed Motor | 24 | 1/507 | 1/507.45 | 0.18 | 8 | CCW | 56.3 | 70.7 | Spur Gearbox(Center Output Shaft) |
