RA-22GM-01TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

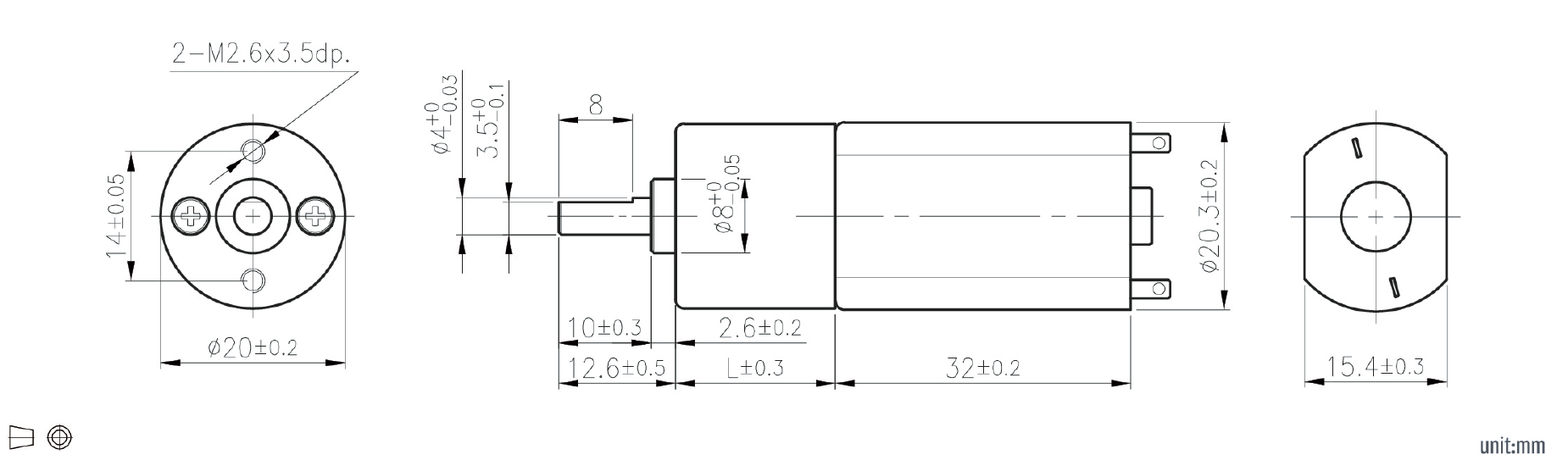

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/9 1/9.04 0.01 740 CCW 49 56.6 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/19 1/18.84 0.03 350 CW 51.2 57.4 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/24 1/24.41 0.03 270 CW 51.2 57.4 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/39 1/39.25 0.05 170 CCW 53.4 58.2 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/51 1/50.86 0.06 130 CCW 53.4 58.2 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/70 1/69.61 0.08 95 CCW 53.4 58.2 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/82 1/81.76 0.09 80 CW 55.6 59 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/106 1/105.96 0.11 65 CW 55.6 59 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/112 1/111.90 0.12 60 CW 55.6 59 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/137 1/137.33 0.15 50 CW 55.6 59 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/145 1/145.02 0.15 45 CW 55.6 59 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/180 1/179.88 0.17 37 CCW 57.8 59.7 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/233 1/233.12 0.18 27 CCW 57.8 59.7 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/286 1/286.10 0.18 22 CCW 57.8 59.7 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/392 1/391.55 0.18 16 CCW 57.8 59.7 Spur Gearbox(Center Output Shaft)
RA-22GM-01TYPE 22 DC Brushed Motor 12 1/507 1/507.45 0.18 12 CCW 57.8 59.7 Spur Gearbox(Center Output Shaft)
