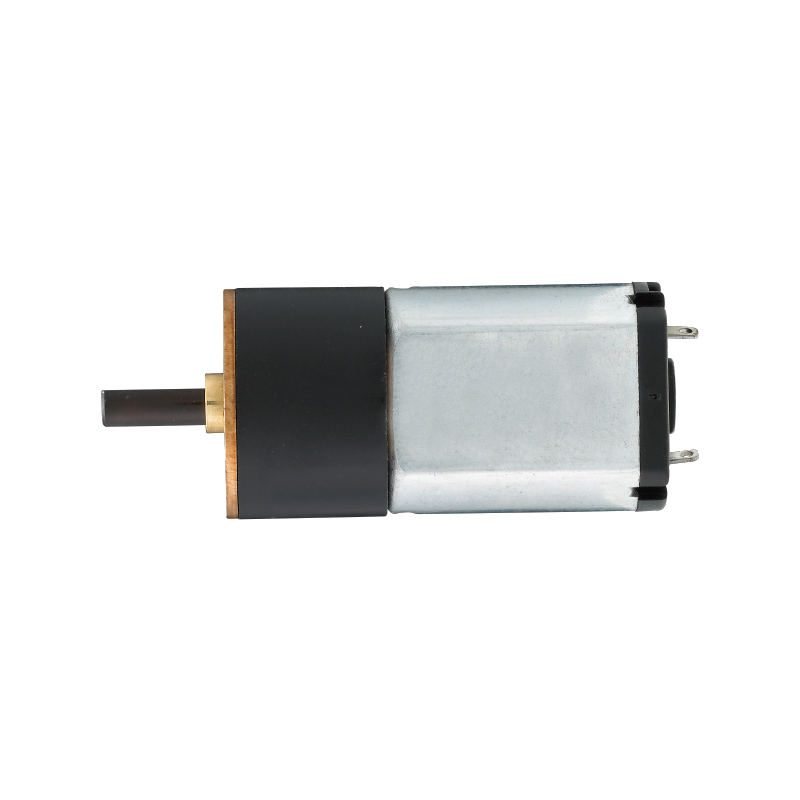

RA-15GM-01TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

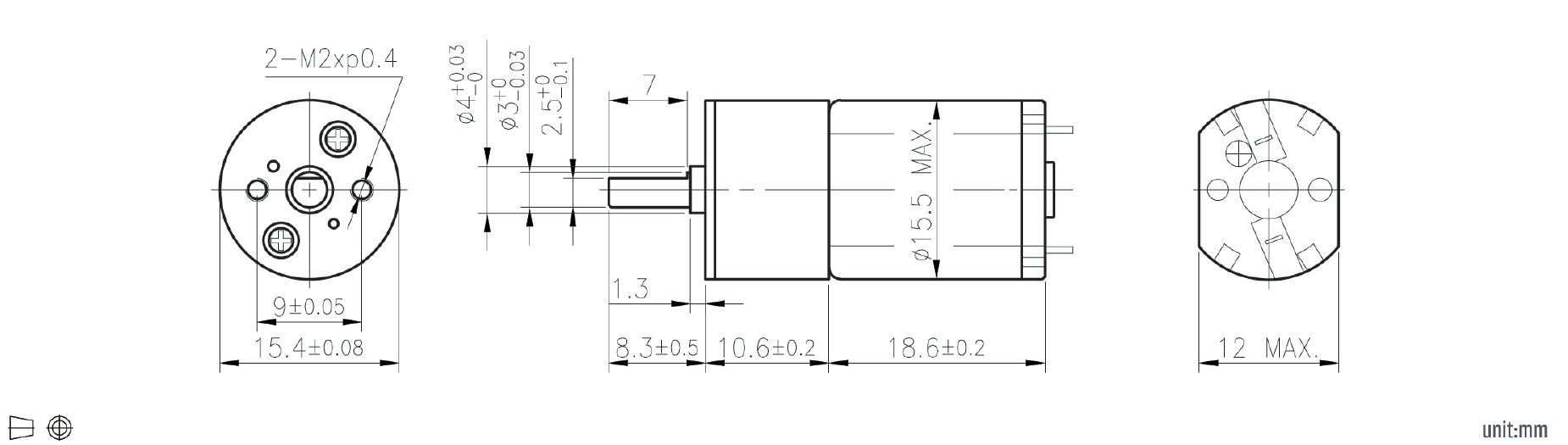

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/10 1/9.95 0.0029 950 CW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/21 1/21.37 0.01 445 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/34 1/34.18 0.01 270 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/59 1/59.47 0.02 160 CW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/75 1/75.44 0.02 125 CW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/105 1/104.73 0.03 91 CW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/146 1/146.3 0.03 65 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/203 1/202.91 0.05 47 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/257 1/256.59 0.06 37 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/294 1/293.74 0.07 32 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
RA-15GM-01TYPE 15 DC Brushed Motor 6 1/360 1/359.68 0.08 26 CCW 29.2 16 Spur Gearbox(Center Output Shaft)
