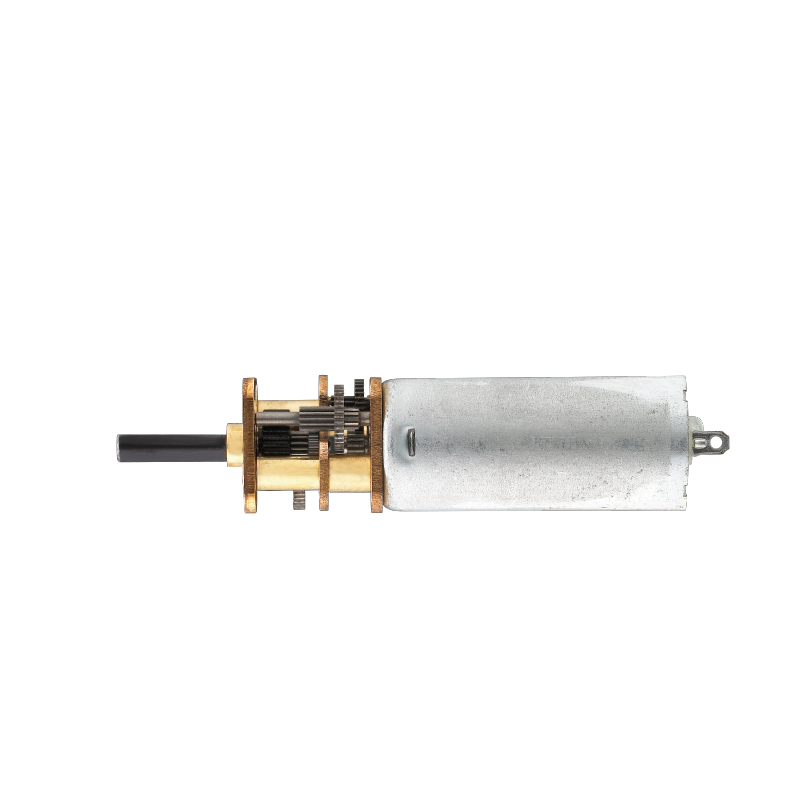

RA-14WGM-04TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

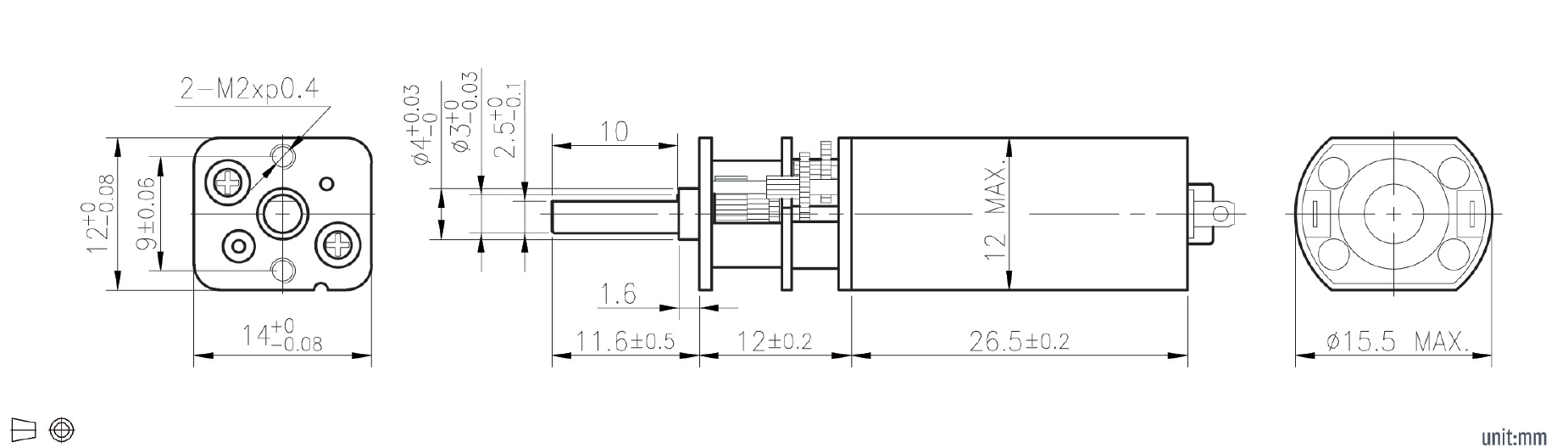

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-14WGM-04TYPE | 14 | DC Brushed Motor | 24 | 1/6 | 1/6.10 | 0.0039 | 1800 | CW | 38.5 | 24.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14WGM-04TYPE | 14 | DC Brushed Motor | 24 | 1/36 | 1/36.18 | 0.02 | 300 | CW | 38.5 | 24.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14WGM-04TYPE | 14 | DC Brushed Motor | 24 | 1/62 | 1/61.50 | 0.04 | 175 | CW | 38.5 | 24.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14WGM-04TYPE | 14 | DC Brushed Motor | 24 | 1/123 | 1/123.01 | 0.06 | 89 | CCW | 38.5 | 24.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14WGM-04TYPE | 14 | DC Brushed Motor | 24 | 1/209 | 1/209.11 | 0.1 | 53 | CCW | 38.5 | 24.2 | Spur Gearbox(Center Output Shaft) |
