RA-14GM-01TYPE
DC Carbon-brush Motor
- Achieving low noise and minimal current consumption.
- Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
- Tailored customization available for shaft, reduction ratio, flange, and pinion.
- We welcome customization to meet specific requirements.

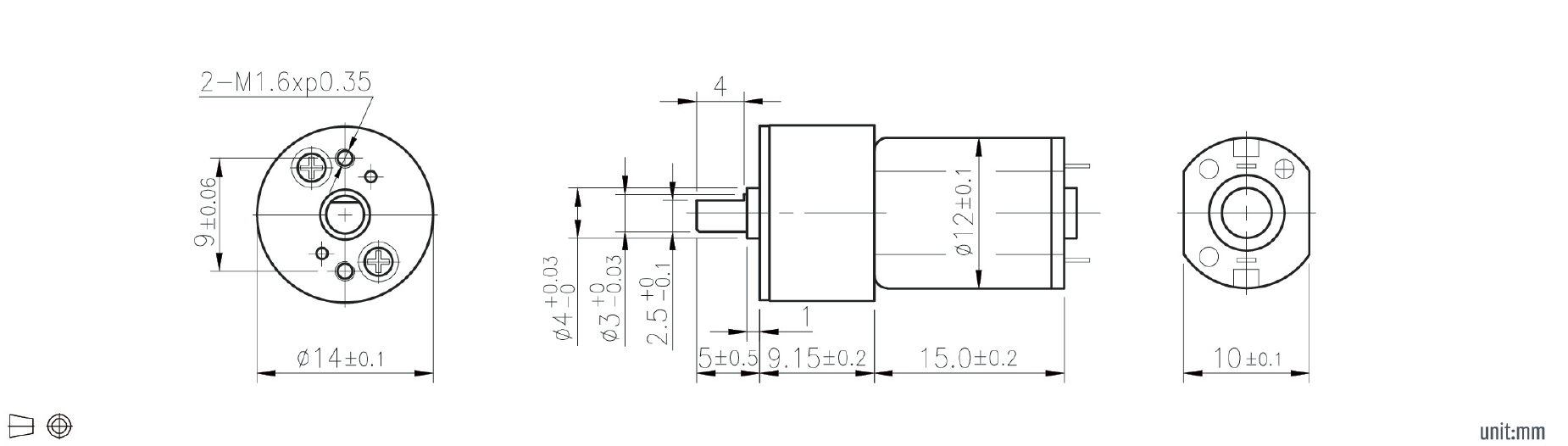

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/10 | 1/9.96 | 0.0015 | 1400 | CW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/19 | 1/19.22 | 0.0024 | 720 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/29 | 1/29.12 | 0.0039 | 480 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/60 | 1/59.68 | 0.01 | 230 | CW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/76 | 1/75.70 | 0.01 | 180 | CW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/102 | 1/101.91 | 0.01 | 135 | CW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/134 | 1/134.46 | 0.02 | 100 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/197 | 1/196.63 | 0.02 | 70 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/235 | 1/234.85 | 0.03 | 59 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) | |
| RA-14GM-01TYPE | 14 | DC Brushed Motor | 3 | 1/298 | 1/297.92 | 0.03 | 46 | CCW | 24.15 | 10.2 | Spur Gearbox(Center Output Shaft) |
