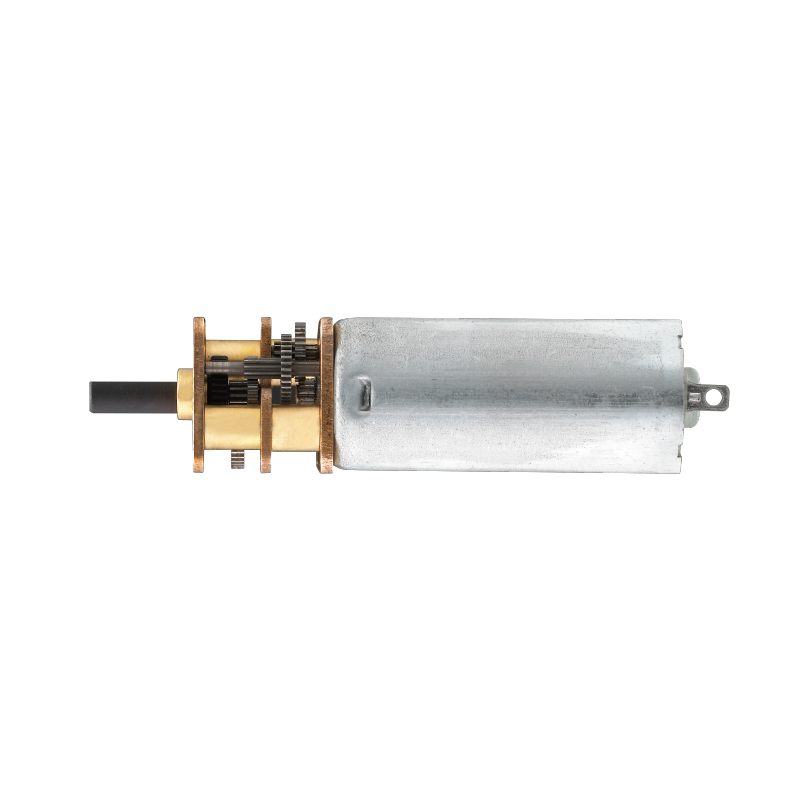

RA-13WGM-04TYPE

DC Carbon-brush Motor

  • Achieving low noise and minimal current consumption.
  • Various gear materials are available, including options for bakelite, steel, plastic, or powder metal.
  • Tailored customization available for shaft, reduction ratio, flange, and pinion.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

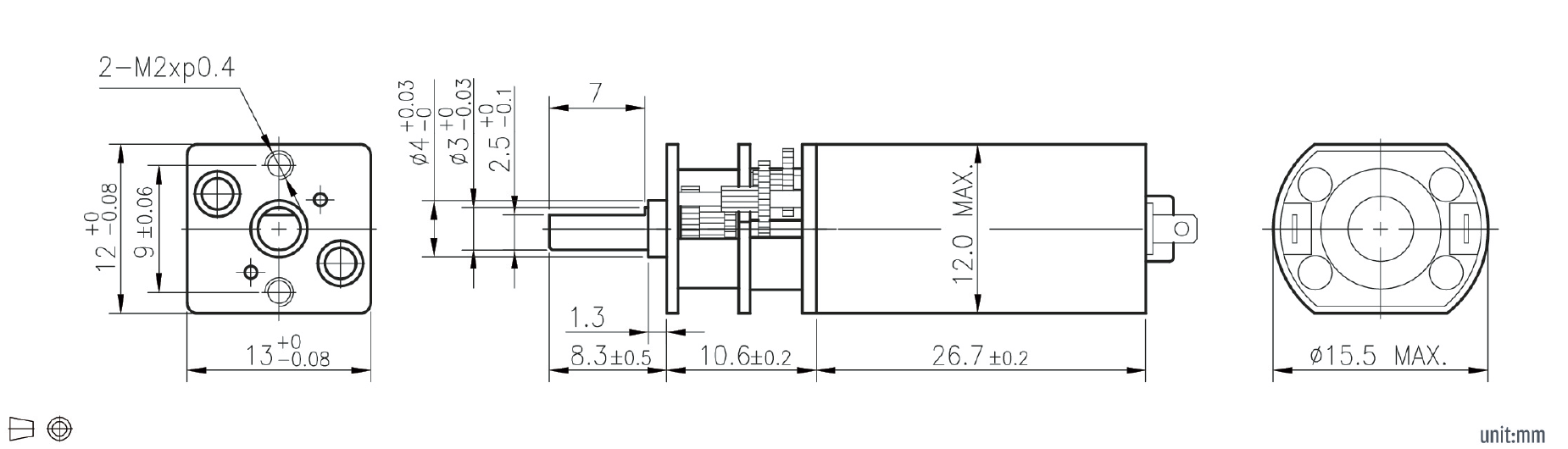

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/10 1/9.95 0.0044 620 CW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/21 1/21.37 0.01 290 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/34 1/34.18 0.01 180 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/59 1/59.47 0.02 100 CW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/75 1/75.44 0.03 82 CW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/105 1/104.73 0.04 59 CW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/146 1/146.3 0.05 42 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/203 1/202.91 0.07 30 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/257 1/256.59 0.09 24 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/294 1/293.74 0.1 21 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
RA-13WGM-04TYPE 13 DC Brushed Motor 12 1/360 1/359.68 0.1 18 CCW 37.3 23.3 Spur Gearbox(Center Output Shaft)
