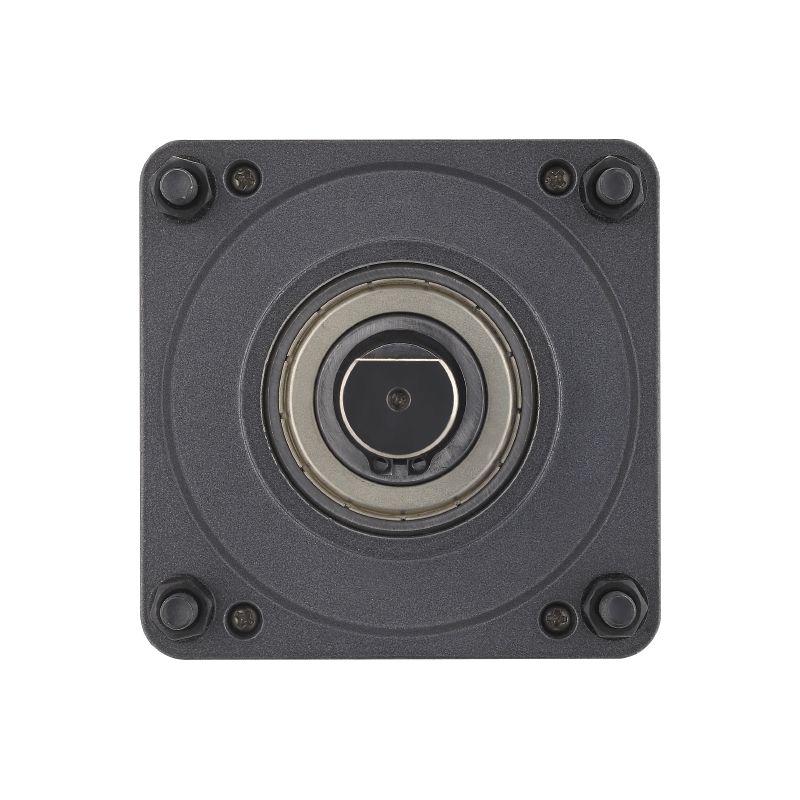

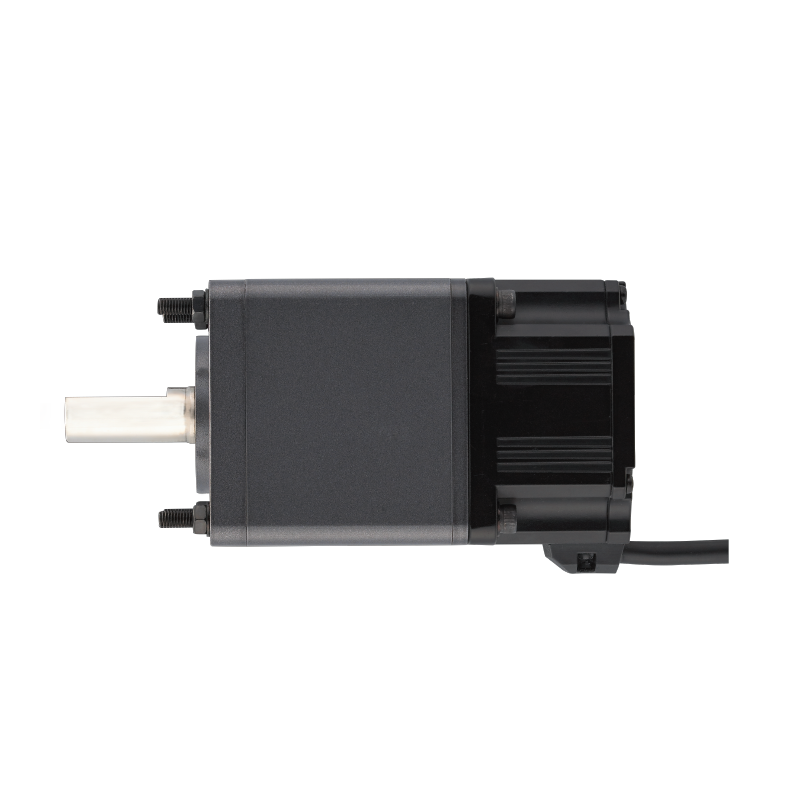

IG-90WGM-41TYPE
DC Brushless Motor
- 高扭力環境下使用，尺寸從 8mm~90mm 可以選擇
- 不同材質齒輪或是不同規格齒輪可供選擇，如塑膠或金屬齒輪
- 大部分系列有滾珠軸承可供選用
- 特殊環境下使用的特殊規格可以討論
- 接受特殊客製化規格

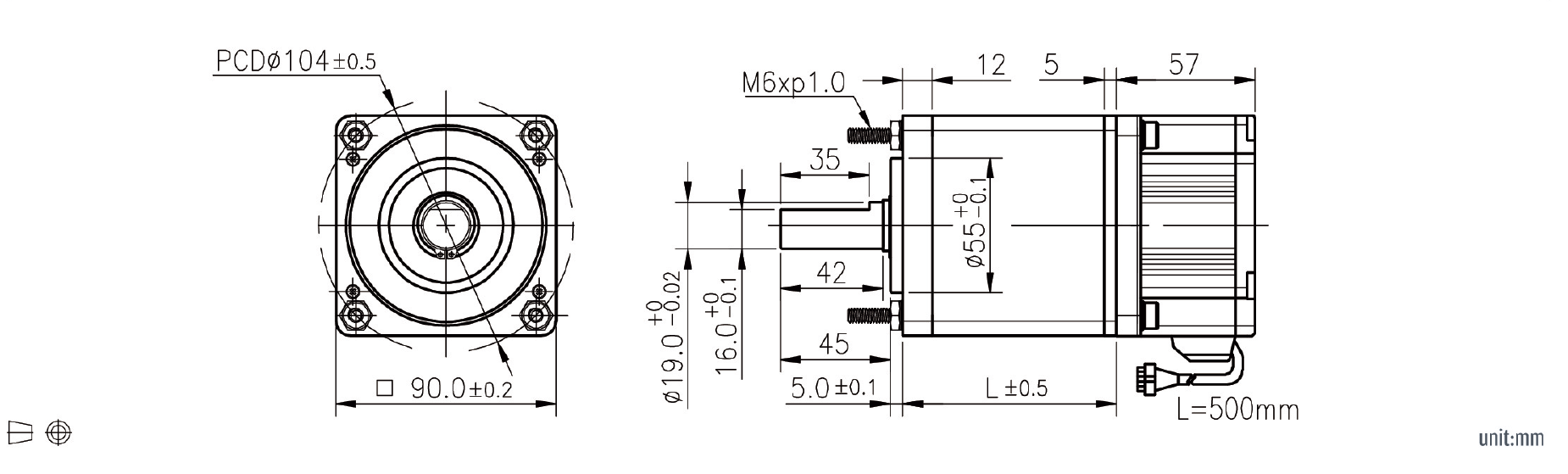

Dimensional drawing

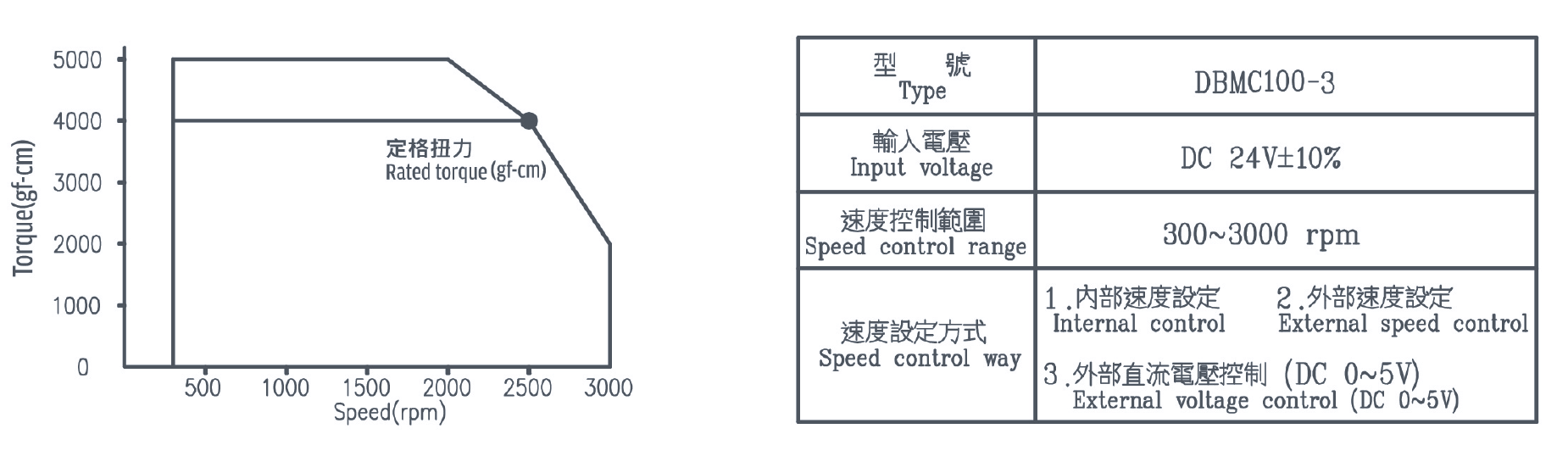

馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/4 | 1/3.57 | 1 | 1.08 | 700 | CW/CCW | 110.3 | 2790 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/15 | 1/14.61 | 2 | 3.92 | 171 | CW/CCW | 126.8 | 3420 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/19 | 1/18.75 | 2 | 5.1 | 133 | CW/CCW | 126.8 | 3420 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/52 | 1/52.48 | 3 | 12.25 | 47 | CW/CCW | 143.3 | 4050 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/60 | 1/59.77 | 3 | 14.01 | 41.8 | CW/CCW | 143.3 | 4050 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/77 | 1/76.70 | 3 | 14.7 | 32.5 | CW/CCW | 143.3 | 4050 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/98 | 1/98.44 | 3 | 14.7 | 25.4 | CW/CCW | 143.3 | 4050 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/201 | 1/201.17 | 4 | 17.64 | 12 | CW/CCW | 159.8 | 4680 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/294 | 1/294.03 | 4 | 17.64 | 8.5 | CW/CCW | 159.8 | 4680 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/403 | 1/402.70 | 4 | 17.64 | 6.2 | CW/CCW | 159.8 | 4680 | Planetary |
| IG-90WGM-41TYPE | 90 | DC Brushless Motor | 24 | 1/517 | 1/516.80 | 4 | 17.64 | 4.8 | CW/CCW | 159.8 | 4680 | Planetary |
