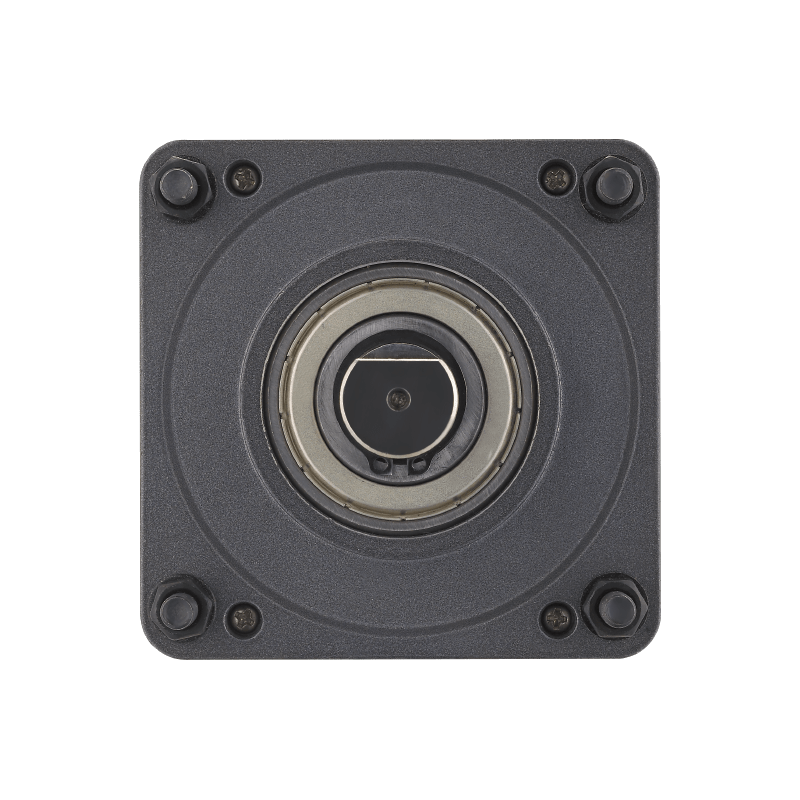

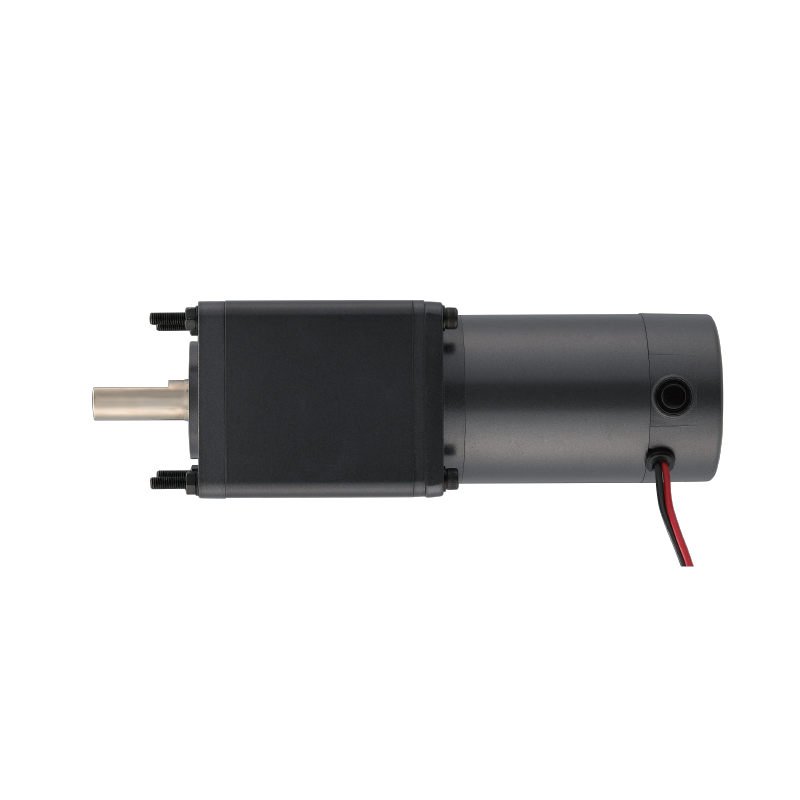

IG-90WGM-02TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

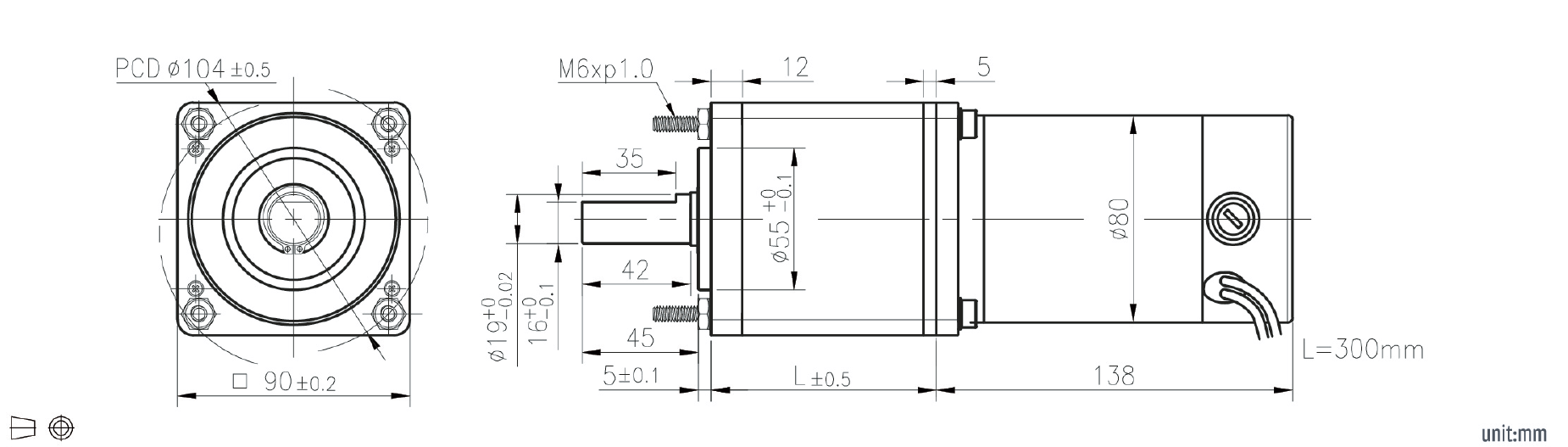

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/4 | 1/3.57 | 1 | 0.88 | 500 | CW | 191.3 | 3640 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/15 | 1/14.61 | 2 | 3.14 | 123 | CW | 207.8 | 4270 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/19 | 1/18.75 | 2 | 4.12 | 96 | CW | 207.8 | 4270 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/52 | 1/52.48 | 3 | 9.8 | 34 | CW | 224.3 | 4900 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/60 | 1/59.77 | 3 | 11.17 | 30 | CW | 224.3 | 4900 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/77 | 1/76.70 | 3 | 14.41 | 23 | CW | 224.3 | 4900 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/98 | 1/98.44 | 3 | 14.7 | 18.5 | CW | 224.3 | 4900 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/201 | 1/201.17 | 4 | 17.64 | 9.3 | CW | 240.8 | 5530 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/294 | 1/294.03 | 4 | 17.64 | 6.4 | CW | 240.8 | 5530 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/403 | 1/402.70 | 4 | 17.64 | 4.6 | CW | 240.8 | 5530 | Planetary |
| IG-90WGM-02TYPE | 90 | DC Brushed Motor | 24 | 1/517 | 1/516.80 | 4 | 17.64 | 3.7 | CW | 240.8 | 5530 | Planetary |
