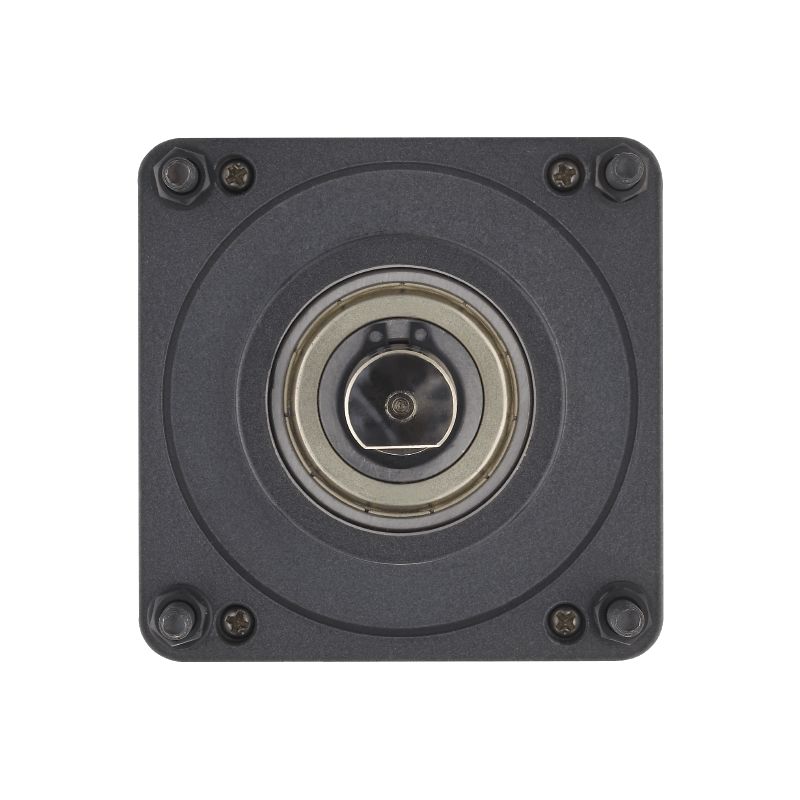

IG-80WGM-41TYPE
DC Brushless Motor
- 高扭力環境下使用，尺寸從 8mm~90mm 可以選擇
- 不同材質齒輪或是不同規格齒輪可供選擇，如塑膠或金屬齒輪
- 大部分系列有滾珠軸承可供選用
- 特殊環境下使用的特殊規格可以討論
- 接受特殊客製化規格

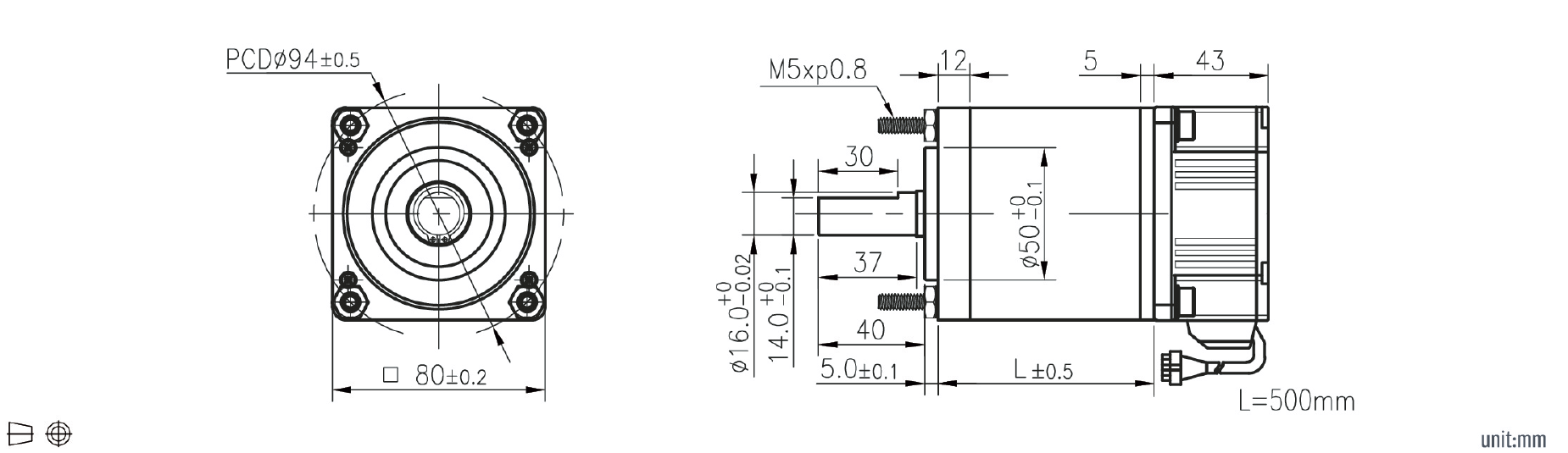

Dimensional drawing
馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/4 | 1/3.81 | 1 | 0.59 | 657 | CW/CCW | 92.3 | 1900 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/13 | 1/12.8 | 2 | 1.75 | 195 | CW/CCW | 108.8 | 2370 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/15 | 1/14.51 | 2 | 1.96 | 172 | CW/CCW | 108.8 | 2370 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/19 | 1/18.61 | 2 | 2.55 | 134 | CW/CCW | 108.8 | 2370 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/21 | 1/21.10 | 2 | 2.84 | 119 | CW/CCW | 108.8 | 2370 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/49 | 1/48.76 | 3 | 5.68 | 51 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/55 | 1/55.29 | 3 | 6.47 | 45 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/71 | 1/70.89 | 3 | 8.33 | 35 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/80 | 1/80.38 | 3 | 9.41 | 31.2 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/103 | 1/103.07 | 3 | 12.05 | 24.2 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/117 | 1/116.86 | 3 | 12.25 | 21.3 | CW/CCW | 125.3 | 2840 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/186 | 1/186.76 | 4 | 12.25 | 13.4 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/210 | 1/210.61 | 4 | 12.25 | 11.9 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/306 | 1/306.20 | 4 | 12.25 | 8.1 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/393 | 1/392.63 | 4 | 12.25 | 6.3 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/445 | 1/445.16 | 4 | 12.25 | 5.6 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/571 | 1/570.83 | 4 | 12.25 | 4.3 | CW/CCW | 141.8 | 3310 | Planetary |
| IG-80WGM-41TYPE | 80 | DC Brushless Motor | 24 | 1/647 | 1/647.20 | 4 | 12.25 | 3.8 | CW/CCW | 141.8 | 3310 | Planetary |
