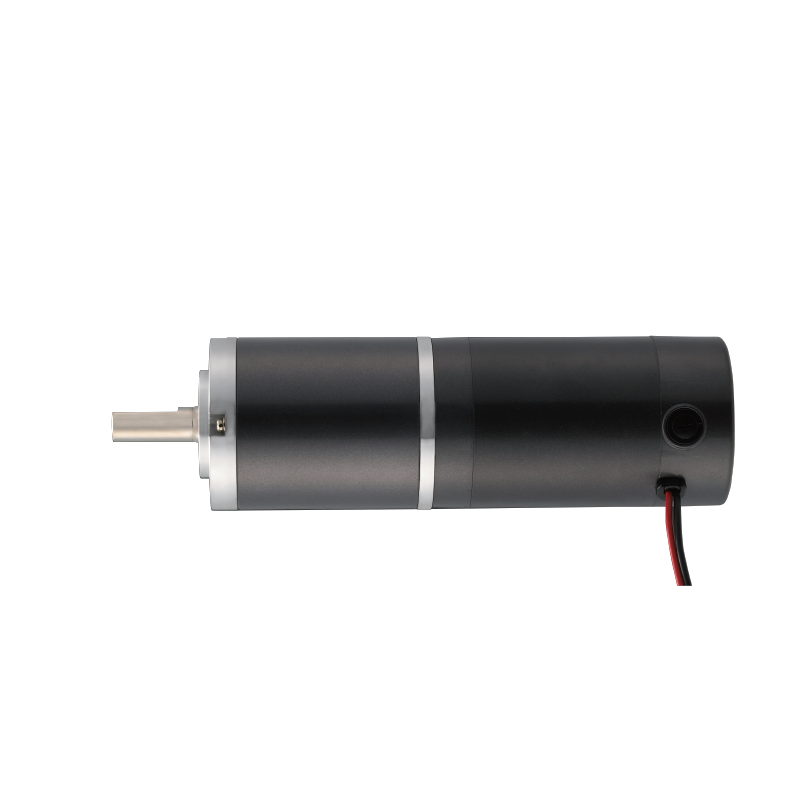

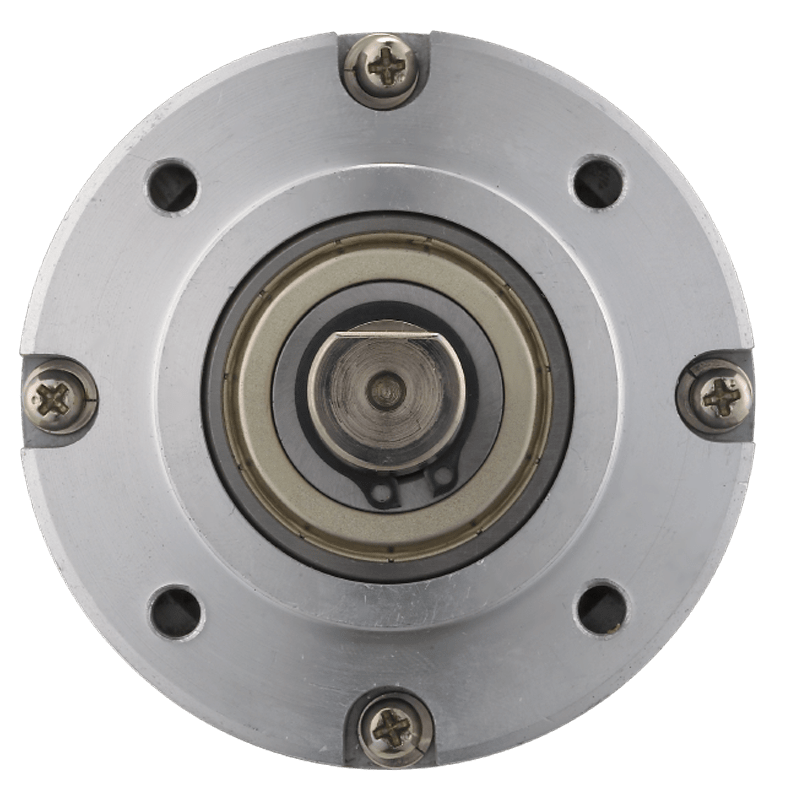

IG-80GM-01TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

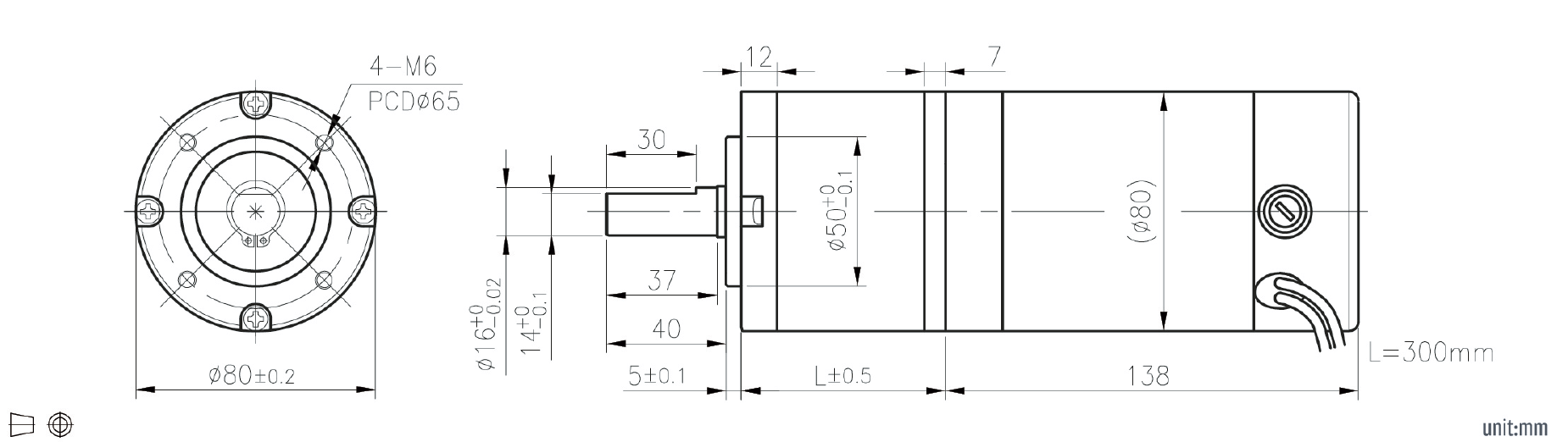

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/4 | 1/3.81 | 1 | 0.74 | 445 | CW | 190.3 | 2850 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/13 | 1/12.8 | 2 | 2.2 | 130 | CW | 206.8 | 3300 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/15 | 1/14.51 | 2 | 2.45 | 115 | CW | 206.8 | 3300 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/19 | 1/18.61 | 2 | 3.14 | 90 | CW | 206.8 | 3300 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/21 | 1/21.10 | 2 | 3.53 | 80 | CW | 206.8 | 3300 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/49 | 1/48.76 | 3 | 7.15 | 34 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/55 | 1/55.29 | 3 | 8.04 | 30 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/71 | 1/70.89 | 3 | 10.29 | 23.5 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/80 | 1/80.38 | 3 | 11.76 | 21 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/103 | 1/103.07 | 3 | 12.25 | 16.7 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/117 | 1/116.86 | 3 | 12.25 | 14.7 | CW | 223.3 | 3750 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/186 | 1/186.76 | 4 | 12.25 | 9.3 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/210 | 1/210.61 | 4 | 12.25 | 8.3 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/306 | 1/306.20 | 4 | 12.25 | 5.8 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/393 | 1/392.63 | 4 | 12.25 | 4.5 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/445 | 1/445.16 | 4 | 12.25 | 4 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/571 | 1/570.83 | 4 | 12.25 | 3.2 | CW | 239.8 | 4200 | Planetary |
| IG-80GM-01TYPE | 80 | DC Brushed Motor | 12 | 1/647 | 1/647.20 | 4 | 12.25 | 2.8 | CW | 239.8 | 4200 | Planetary |
