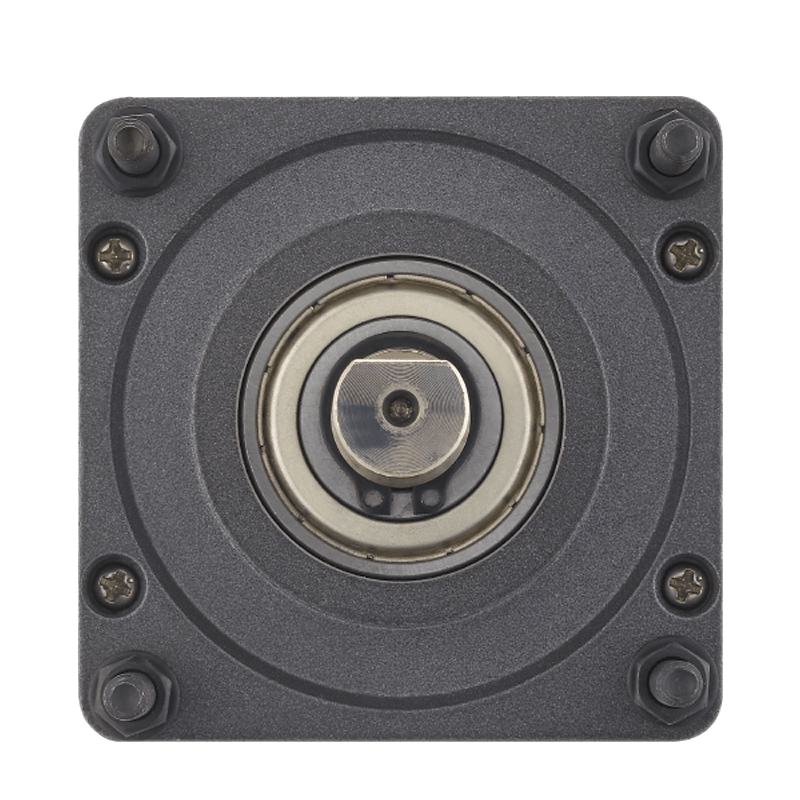

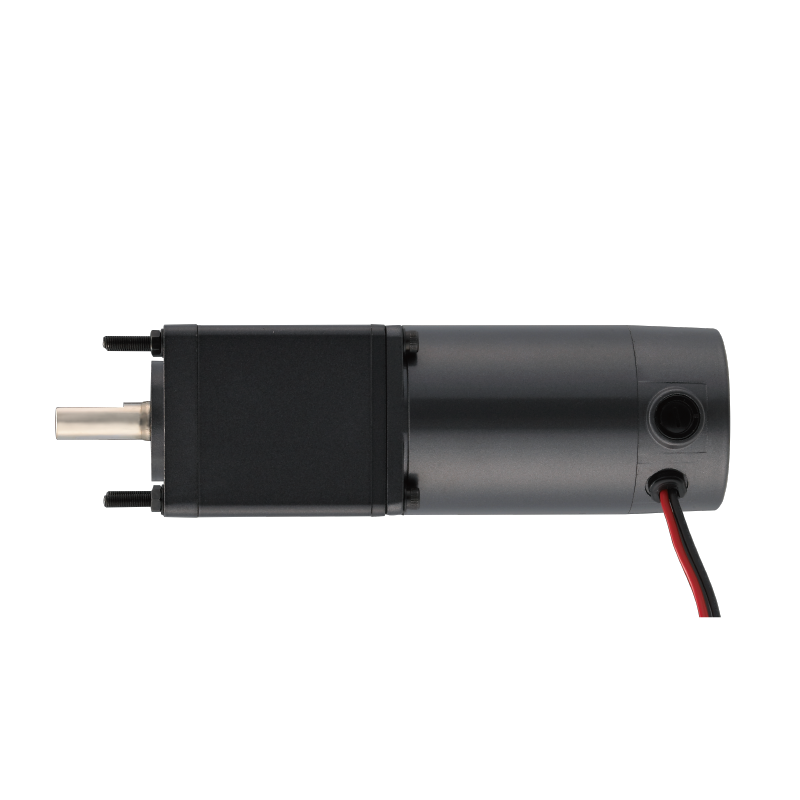

IG-70WGM-01TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

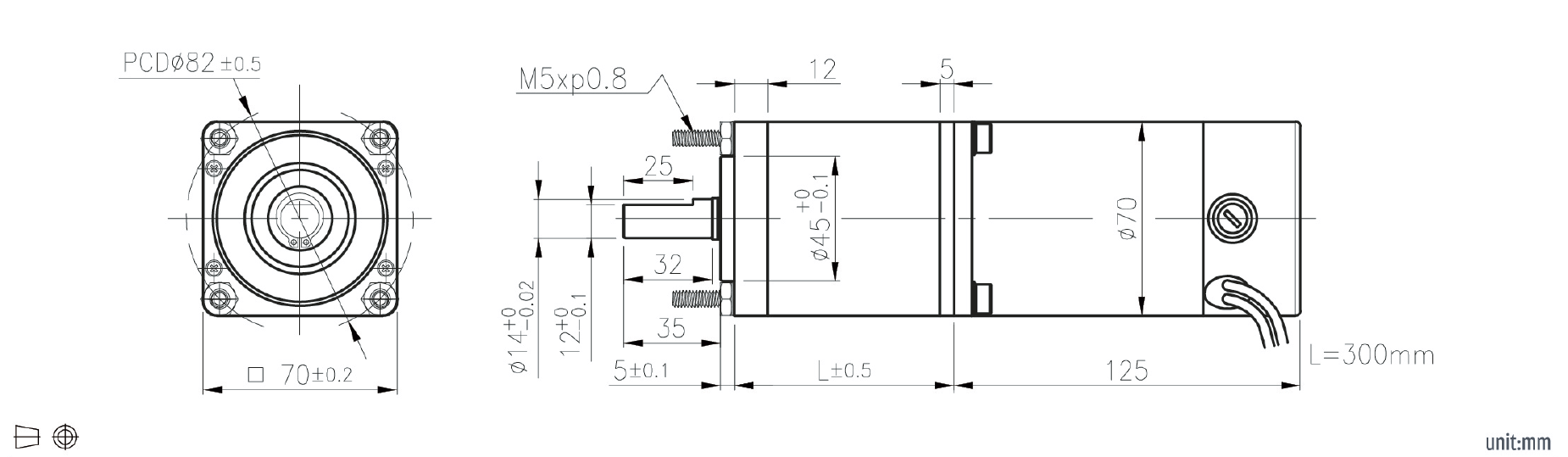

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/4 | 1/3.5 | 1 | 0.41 | 510 | CW | 172.3 | 2430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/13 | 1/13.22 | 2 | 1.35 | 135 | CW | 188.8 | 2760 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/16 | 1/16 | 2 | 1.65 | 112 | CW | 188.8 | 2760 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/20 | 1/19.81 | 2 | 2 | 90.9 | CW | 188.8 | 2760 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/50 | 1/49.95 | 3 | 4.4 | 36 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/60 | 1/60.44 | 3 | 5.29 | 29.7 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/75 | 1/74.84 | 3 | 6.57 | 24 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/91 | 1/90.56 | 3 | 7.94 | 19.7 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/102 | 1/101.77 | 3 | 8.92 | 17.6 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/126 | 1/126 | 3 | 11.07 | 14.2 | CW | 205.3 | 3090 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/189 | 1/188.70 | 4 | 12.25 | 9.5 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/242 | 1/242.07 | 4 | 12.25 | 7.5 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/300 | 1/299.70 | 4 | 12.25 | 6.2 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/363 | 1/362.67 | 4 | 12.25 | 5.1 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/414 | 1/413.98 | 4 | 12.25 | 4.4 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/493 | 1/493.19 | 4 | 12.25 | 3.7 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/543 | 1/543.35 | 4 | 12.25 | 3.4 | CW | 221.8 | 3430 | Planetary |
| IG-70WGM-01TYPE | 70 | DC Brushed Motor | 12 | 1/611 | 1/610.62 | 4 | 12.25 | 3 | CW | 221.8 | 3430 | Planetary |
