IG-60WGM-02TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

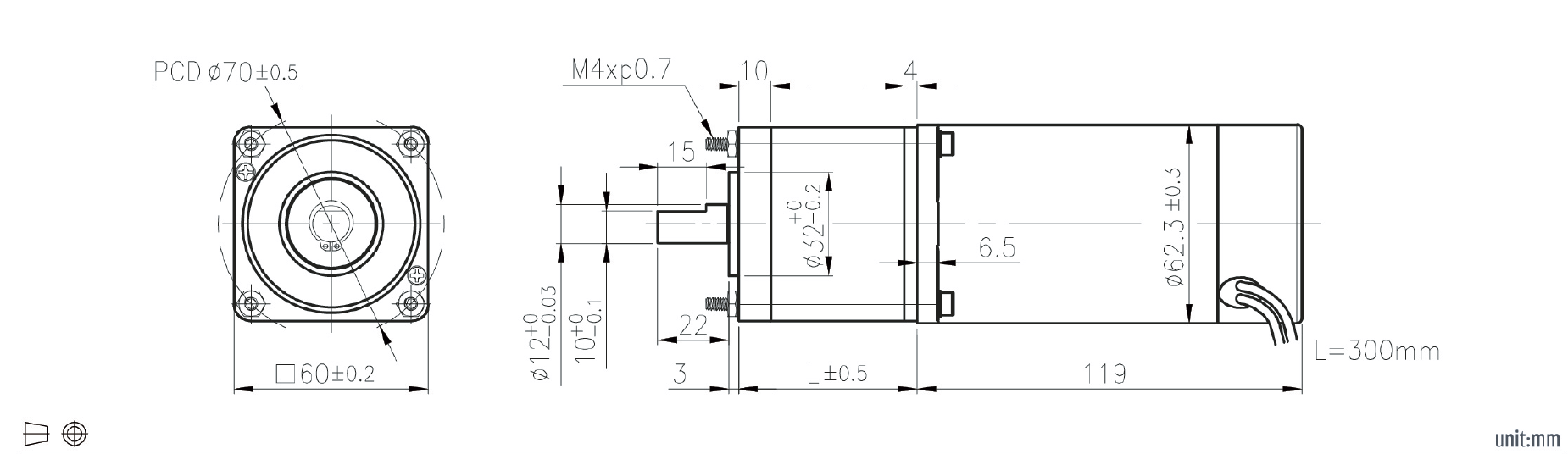

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/3 | 1/3.5 | 1 | 0.26 | 1380 | CW | 162.3 | 1660 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/4 | 1/4.33 | 1 | 0.33 | 1100 | CW | 162.3 | 1660 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/12 | 1/12.25 | 2 | 0.83 | 390 | CW | 177.8 | 1880 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/15 | 1/15.17 | 2 | 1.03 | 310 | CW | 177.8 | 1880 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/19 | 1/18.78 | 2 | 1.27 | 255 | CW | 177.8 | 1880 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/43 | 1/42.88 | 3 | 2.45 | 110 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/53 | 1/53.08 | 3 | 3.04 | 90 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/66 | 1/65.72 | 3 | 3.82 | 73 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/81 | 1/81.37 | 3 | 4.7 | 59 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/100 | 1/100.29 | 3 | 5.88 | 48 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/113 | 1/112.67 | 3 | 6.57 | 42 | CW | 193.3 | 2130 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/150 | 1/150.06 | 4 | 7.35 | 32 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/230 | 1/230.03 | 4 | 9.8 | 21 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/285 | 1/284.80 | 4 | 9.8 | 17.1 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/353 | 1/352.60 | 4 | 9.8 | 13.8 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/488 | 1/488.22 | 4 | 9.8 | 10 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/546 | 1/546 | 4 | 9.8 | 9 | CW | 208.8 | 2360 | Planetary |
| IG-60WGM-02TYPE | 60 | DC Brushed Motor | 24 | 1/676 | 1/676 | 4 | 9.8 | 7.3 | CW | 208.8 | 2360 | Planetary |
