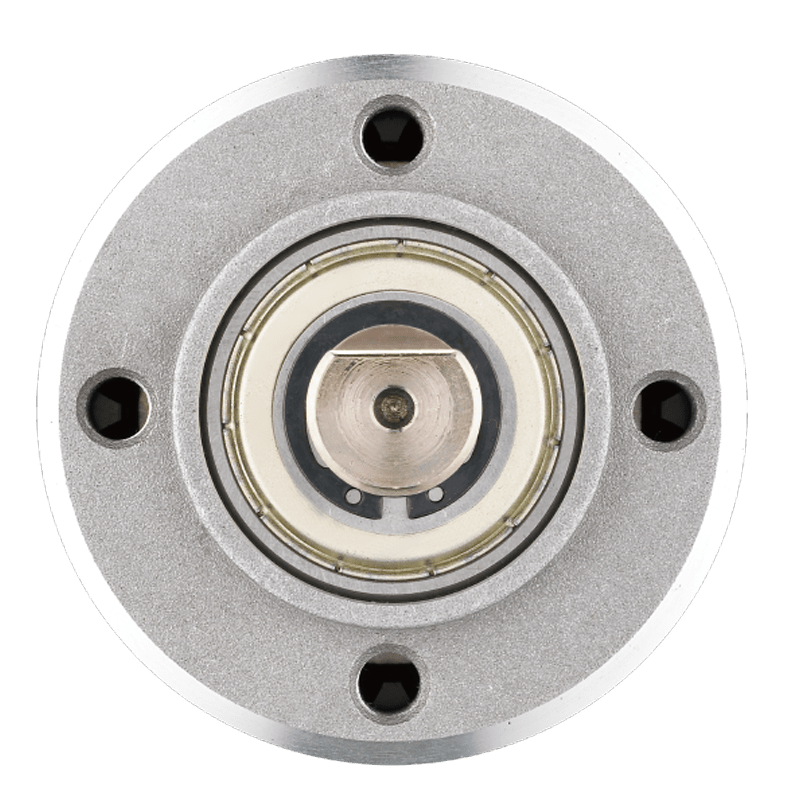

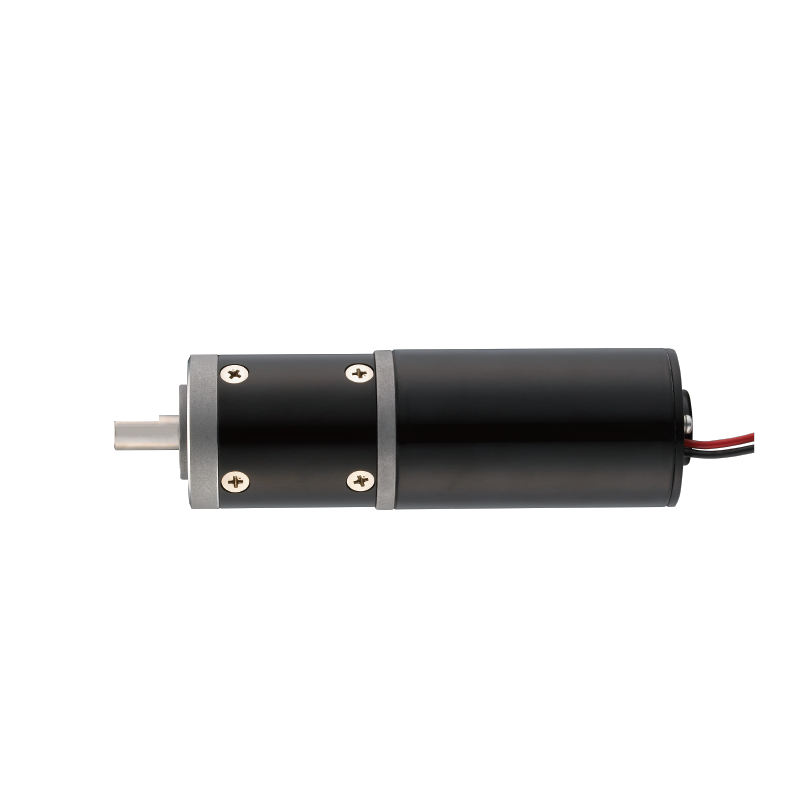

IG-52GM-04TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

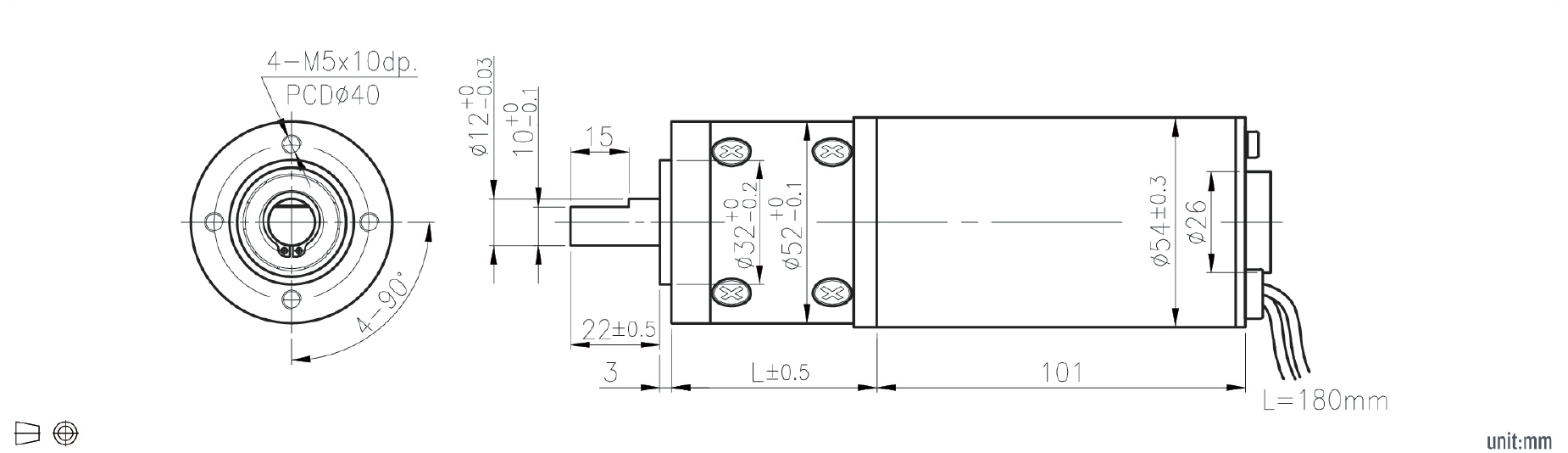

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/3 | 1/3.5 | 1 | 0.35 | 1000 | CW | 154 | 1395 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/4 | 1/4.33 | 1 | 0.44 | 815 | CW | 154 | 1395 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/12 | 1/12.25 | 2 | 1.08 | 285 | CW | 169.5 | 1580 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/15 | 1/15.17 | 2 | 1.32 | 230 | CW | 169.5 | 1580 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/19 | 1/18.78 | 2 | 1.67 | 185 | CW | 169.5 | 1580 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/26 | 1/26 | 2 | 2.25 | 136 | CW | 169.5 | 1580 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/43 | 1/42.88 | 3 | 3.23 | 82 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/53 | 1/53.08 | 3 | 4.02 | 67 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/66 | 1/65.72 | 3 | 5 | 54 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/81 | 1/81.37 | 3 | 6.08 | 44 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/100 | 1/100.29 | 3 | 7.64 | 35 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/113 | 1/112.67 | 3 | 8.62 | 31 | CW | 185 | 1770 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/150 | 1/150.06 | 4 | 9.51 | 23.5 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/230 | 1/230.03 | 4 | 9.8 | 15.6 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/285 | 1/284.80 | 4 | 9.8 | 12.9 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/353 | 1/352.60 | 4 | 9.8 | 10.5 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/488 | 1/488.22 | 4 | 9.8 | 7.7 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/546 | 1/546 | 4 | 9.8 | 6.8 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/676 | 1/676 | 4 | 9.8 | 5.7 | CW | 200.5 | 1940 | Planetary |
| IG-52GM-04TYPE | 52 | DC Brushed Motor | 24 | 1/936 | 1/936 | 4 | 9.8 | 4.1 | CW | 200.5 | 1940 | Planetary |
