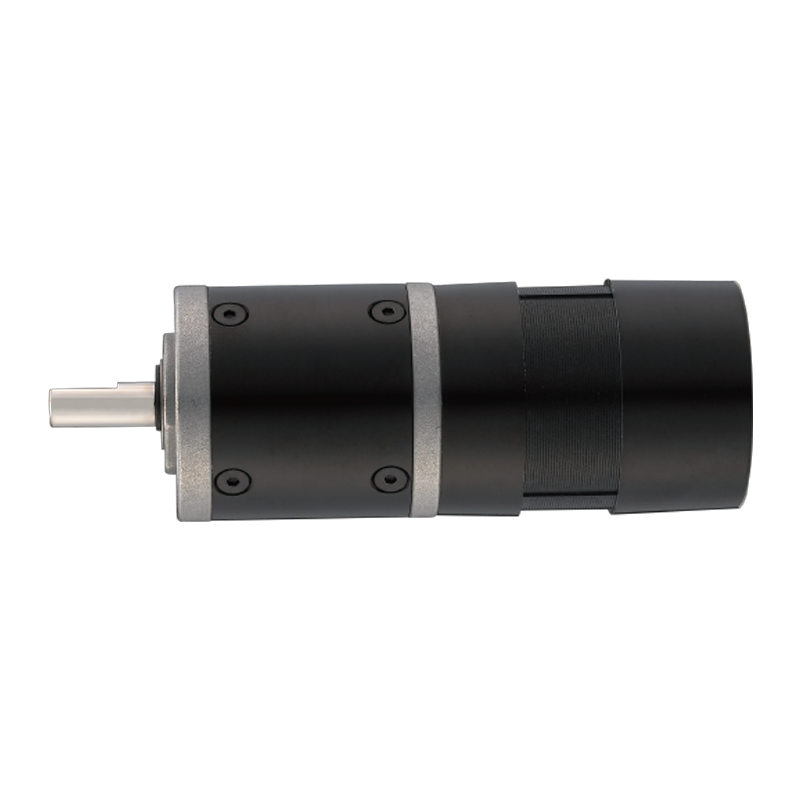

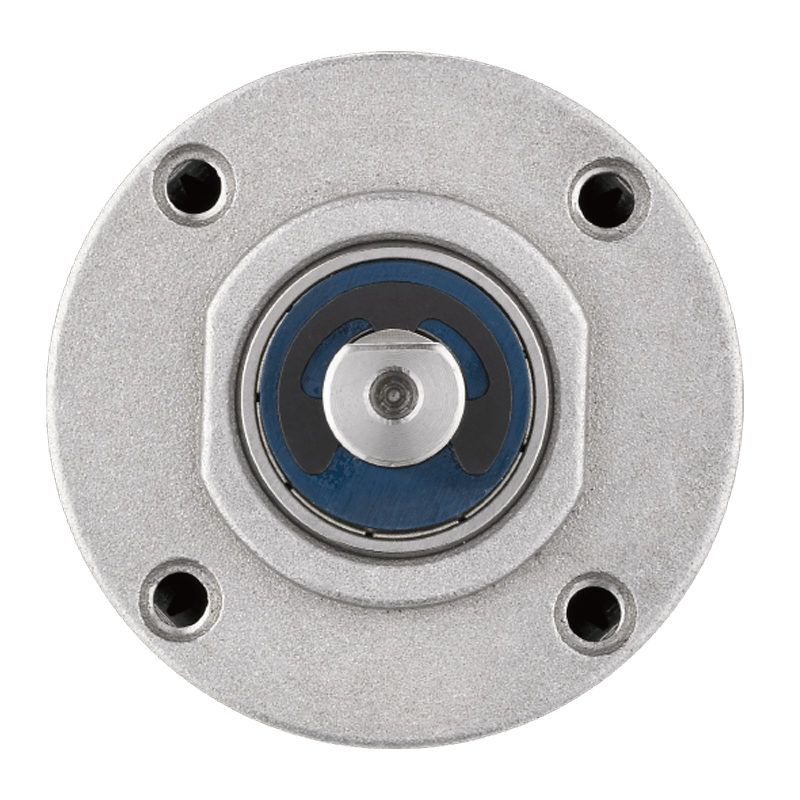

IG-42HGM-42TYPE
DC Brushless Motor
- 高扭力環境下使用，尺寸從 8mm~90mm 可以選擇
- 不同材質齒輪或是不同規格齒輪可供選擇，如塑膠或金屬齒輪
- 大部分系列有滾珠軸承可供選用
- 特殊環境下使用的特殊規格可以討論
- 接受特殊客製化規格

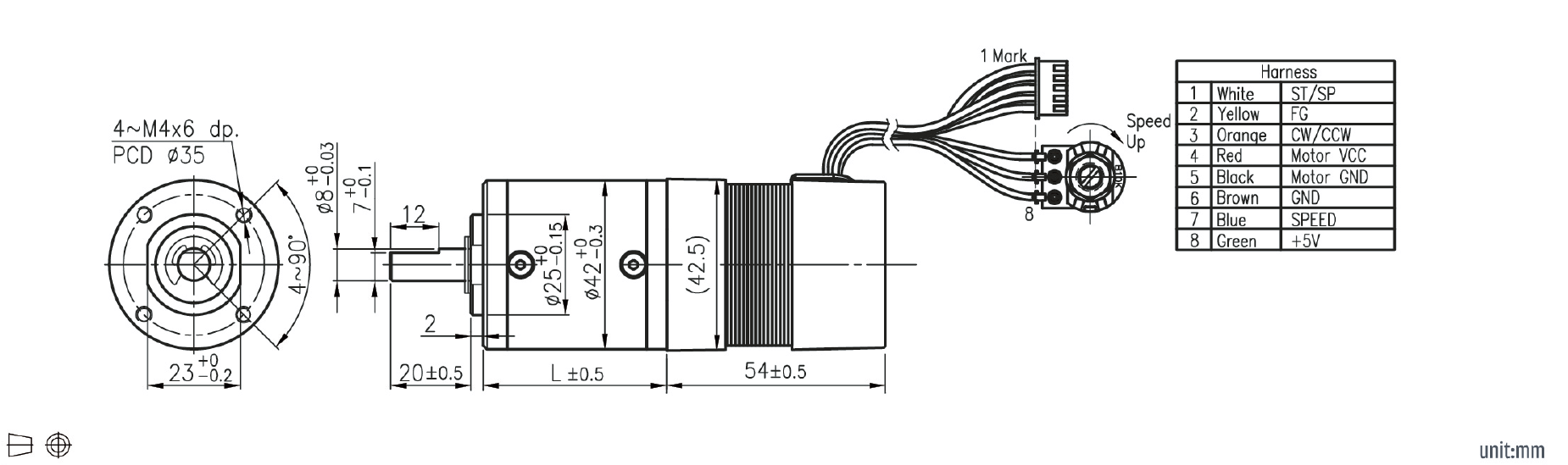

Dimensional drawing

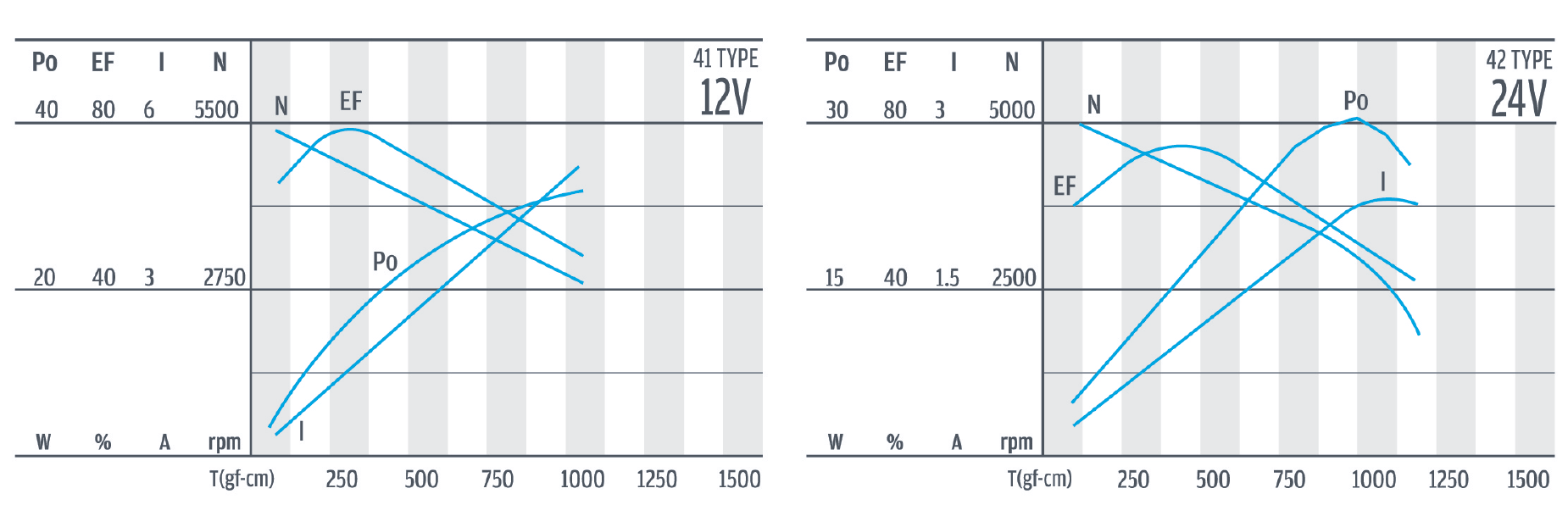

馬達單體特性
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/15 | 1/14.67 | 1 | 0.38 | 280 | 93.2 | 443 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/17 | 1/16.8 | 1 | 0.44 | 245 | 93.2 | 443 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/20 | 1/20 | 1 | 0.51 | 210 | 93.2 | 443 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/25 | 1/25.33 | 1 | 0.63 | 170 | 93.2 | 443 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/51 | 1/51.33 | 2 | 1.13 | 80 | 99.9 | 483 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/64 | 1/63.56 | 2 | 1.42 | 65 | 99.9 | 483 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/84 | 1/84 | 2 | 1.82 | 50 | 99.9 | 483 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/100 | 1/100 | 2 | 2.16 | 42 | 99.9 | 483 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/120 | 1/120 | 2 | 2.61 | 35 | 99.9 | 483 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/180 | 1/179.67 | 3 | 2.74 | 24 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/222 | 1/222.44 | 3 | 2.94 | 20 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/294 | 1/294 | 3 | 2.94 | 15.5 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/500 | 1/500 | 3 | 2.94 | 9.6 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/600 | 1/600 | 3 | 2.94 | 8 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/720 | 1/720 | 3 | 2.94 | 6.8 | 106.6 | 533 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/1062 | 1/1061.67 | 4 | 2.94 | 4.6 | 113.6 | 578 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/1470 | 1/1470 | 4 | 2.94 | 3.4 | 113.6 | 578 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/2500 | 1/2500 | 4 | 2.94 | 2 | 113.6 | 578 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/3000 | 1/3000 | 4 | 2.94 | 1.7 | 113.6 | 578 | Planetary | |
| IG-42HGM-42TYPE | 42 | DC Brushless Motor | 24 | 1/3600 | 1/3600 | 4 | 2.94 | 1.4 | 113.6 | 578 | Planetary |
