IG-42GM-65TYPE
DC Brushless Motor
- 高扭力環境下使用，尺寸從 8mm~90mm 可以選擇
- 不同材質齒輪或是不同規格齒輪可供選擇，如塑膠或金屬齒輪
- 大部分系列有滾珠軸承可供選用
- 特殊環境下使用的特殊規格可以討論
- 接受特殊客製化規格

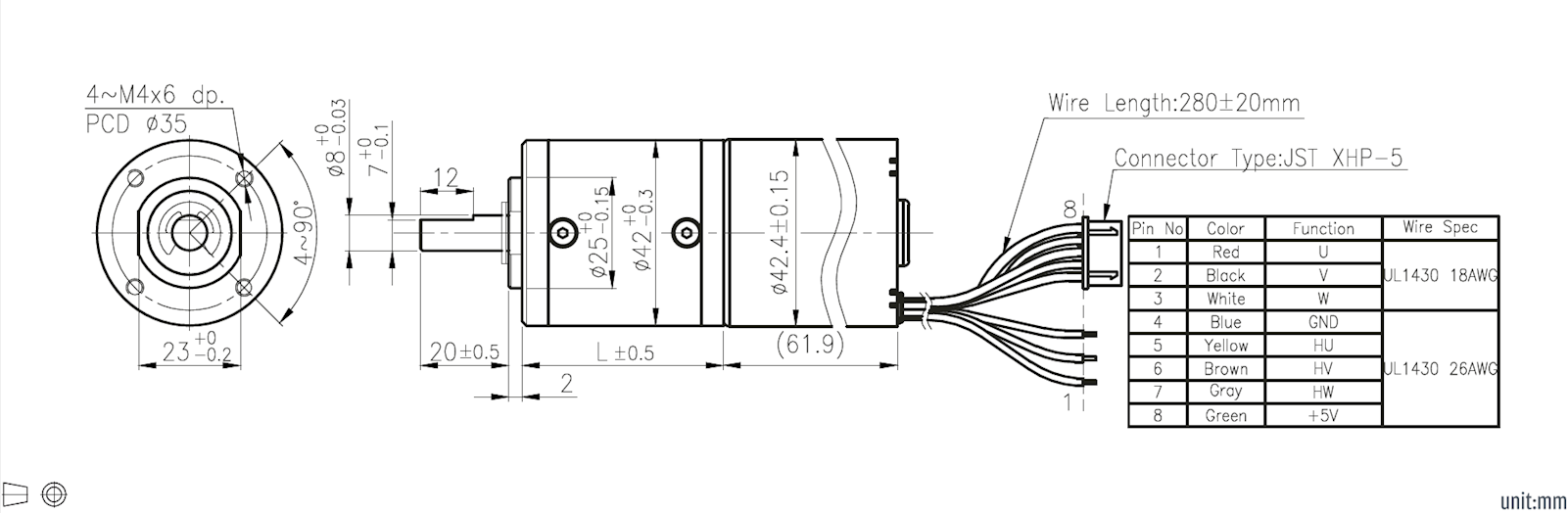

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/4 | 1/4 | 1 | 0.26 | 1125 | CW/CCW | 94.4 | 506 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/14 | 1/14 | 2 | 0.78 | 325 | CW/CCW | 101.1 | 558 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/17 | 1/17.33 | 2 | 0.78 | 270 | CW/CCW | 101.1 | 558 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/24 | 1/24 | 2 | 0.78 | 200 | CW/CCW | 101.1 | 558 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/49 | 1/49 | 3 | 1.76 | 95 | CW/CCW | 107.8 | 598 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/61 | 1/60.67 | 3 | 1.76 | 75 | CW/CCW | 107.8 | 598 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/84 | 1/84 | 3 | 1.76 | 55 | CW/CCW | 107.8 | 598 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/104 | 1/104 | 3 | 1.96 | 45 | CW/CCW | 107.8 | 598 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/144 | 1/144 | 3 | 1.96 | 35 | CW/CCW | 107.8 | 598 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/212 | 1/212.33 | 4 | 2.45 | 24 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/294 | 1/294 | 4 | 2.45 | 17 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/504 | 1/504 | 4 | 2.94 | 10 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/624 | 1/624 | 4 | 2.94 | 8.4 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/720 | 1/720 | 4 | 2.94 | 7.3 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/864 | 1/864 | 4 | 2.94 | 6 | CW/CCW | 114.5 | 648 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/1062 | 1/1061.67 | 5 | 2.94 | 5 | CW/CCW | 121.5 | 693 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/1470 | 1/1470 | 5 | 2.94 | 3.5 | CW/CCW | 121.5 | 693 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/2500 | 1/2500 | 5 | 2.94 | 2.1 | CW/CCW | 121.5 | 693 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/3000 | 1/3000 | 5 | 2.94 | 1.7 | CW/CCW | 121.5 | 693 | Planetary |
| IG-42GM-65TYPE | 42 | DC Brushless Motor | 24 | 1/3600 | 1/3600 | 5 | 2.94 | 1.4 | CW/CCW | 121.5 | 693 | Planetary |
