IG-42GM-62TYPE
DC Brushless Motor
- 高扭力環境下使用，尺寸從 8mm~90mm 可以選擇
- 不同材質齒輪或是不同規格齒輪可供選擇，如塑膠或金屬齒輪
- 大部分系列有滾珠軸承可供選用
- 特殊環境下使用的特殊規格可以討論
- 接受特殊客製化規格

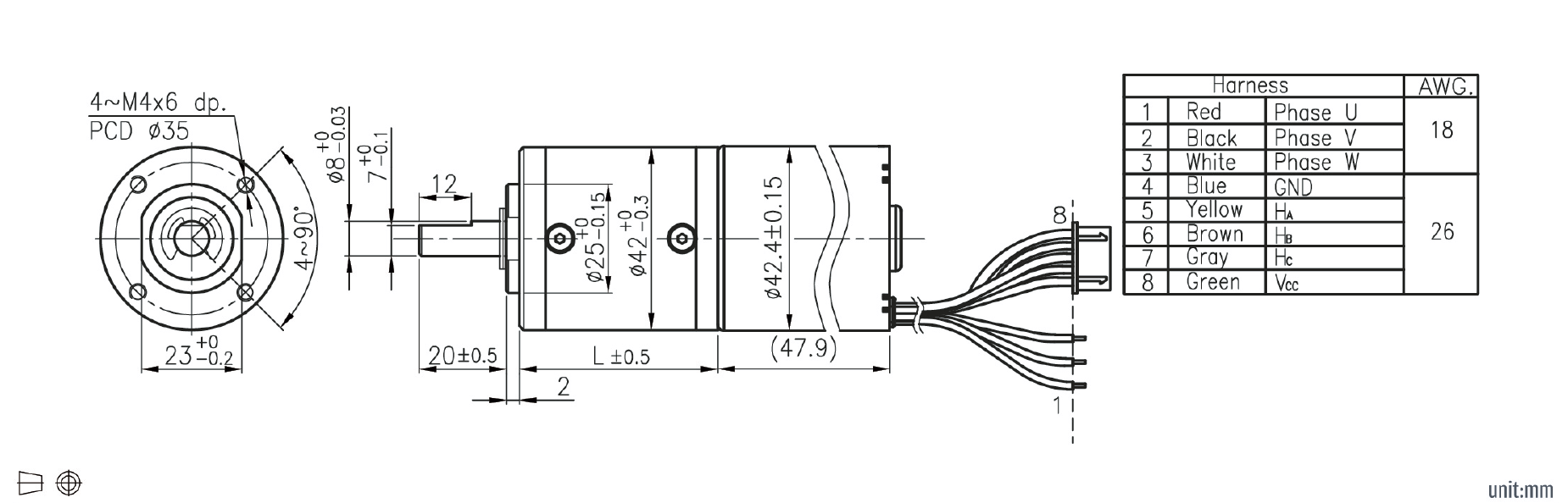

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/4 | 1/4 | 1 | 0.15 | 900 | CW/CCW | 80.4 | 406 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/14 | 1/14 | 2 | 0.46 | 255 | CW/CCW | 87.1 | 458 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/17 | 1/17.33 | 2 | 0.57 | 205 | CW/CCW | 87.1 | 458 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/24 | 1/24 | 2 | 0.78 | 150 | CW/CCW | 87.1 | 458 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/49 | 1/49 | 3 | 1.37 | 73 | CW/CCW | 93.8 | 498 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/61 | 1/60.67 | 3 | 1.71 | 55 | CW/CCW | 93.8 | 498 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/84 | 1/84 | 3 | 1.76 | 45 | CW/CCW | 93.8 | 498 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/104 | 1/104 | 3 | 1.96 | 35 | CW/CCW | 93.8 | 498 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/144 | 1/144 | 3 | 1.96 | 25 | CW/CCW | 93.8 | 498 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/212 | 1/212.33 | 4 | 2.45 | 18 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/294 | 1/294 | 4 | 2.45 | 14 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/504 | 1/504 | 4 | 2.94 | 8 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/624 | 1/624 | 4 | 2.94 | 6.5 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/720 | 1/720 | 4 | 2.94 | 5.5 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/864 | 1/864 | 4 | 2.94 | 5 | CW/CCW | 100.5 | 548 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/1062 | 1/1061.67 | 5 | 2.94 | 4 | CW/CCW | 107.5 | 593 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/1470 | 1/1470 | 5 | 2.94 | 2.5 | CW/CCW | 107.5 | 593 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/2500 | 1/2500 | 5 | 2.94 | 1.7 | CW/CCW | 107.5 | 593 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/3000 | 1/3000 | 5 | 2.94 | 1.4 | CW/CCW | 107.5 | 593 | Planetary |
| IG-42GM-62TYPE | 42 | DC Brushless Motor | 12 | 1/3600 | 1/3600 | 5 | 2.94 | 1.2 | CW/CCW | 107.5 | 593 | Planetary |
