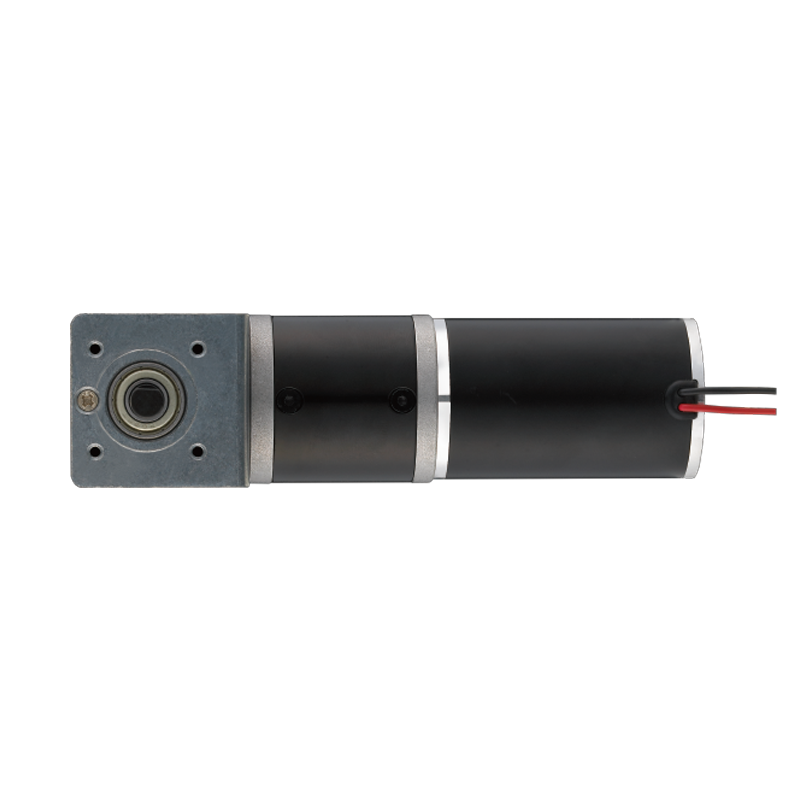

IG-42CRGM-04TYPE
DC Carbon-brush Motor
- Single or dual output shaft are both available.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- We welcome customization to meet specific requirements.

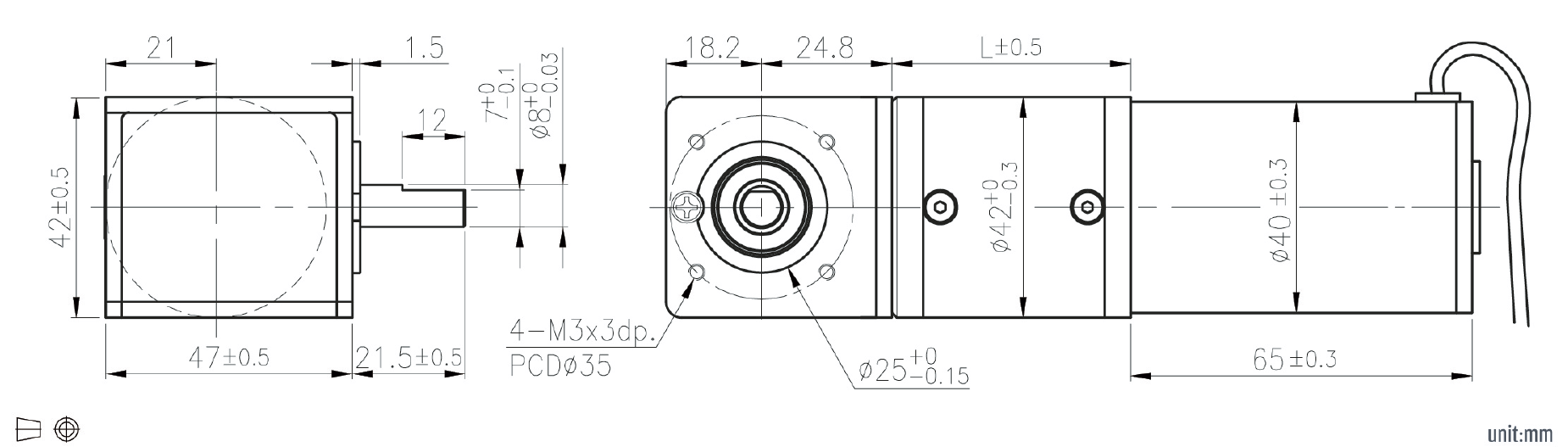

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/4 | 1/4 | 1 | 0.1 | 945 | CW | 140.5 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/14 | 1/14 | 2 | 0.29 | 270 | CW | 147.2 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/17 | 1/17.33 | 2 | 0.37 | 215 | CW | 147.2 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/24 | 1/24 | 2 | 0.51 | 155 | CW | 147.2 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/49 | 1/49 | 3 | 0.9 | 76 | CW | 153.9 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/61 | 1/60.67 | 3 | 1.12 | 62 | CW | 153.9 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/84 | 1/84 | 3 | 1.57 | 45 | CW | 153.9 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/104 | 1/104 | 3 | 1.96 | 36 | CW | 153.9 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/144 | 1/144 | 3 | 1.96 | 27 | CW | 153.9 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/212 | 1/212.33 | 4 | 2.45 | 18.5 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/294 | 1/294 | 4 | 2.45 | 14 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/504 | 1/504 | 4 | 2.94 | 8.3 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/624 | 1/624 | 4 | 2.94 | 6.9 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/720 | 1/720 | 4 | 2.94 | 5.9 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/864 | 1/864 | 4 | 2.94 | 4.9 | CW | 160.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/1062 | 1/1061.67 | 5 | 2.94 | 4 | CW | 167.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/1470 | 1/1470 | 5 | 2.94 | 2.8 | CW | 167.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/2500 | 1/2500 | 5 | 2.94 | 1.7 | CW | 167.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/3000 | 1/3000 | 5 | 2.94 | 1.4 | CW | 167.6 | Right Angle | |
| IG-42CRGM-04TYPE | 42 | DC Brushed Motor | 24 | 1/3600 | 1/3600 | 5 | 2.94 | 1.2 | CW | 167.6 | Right Angle |
