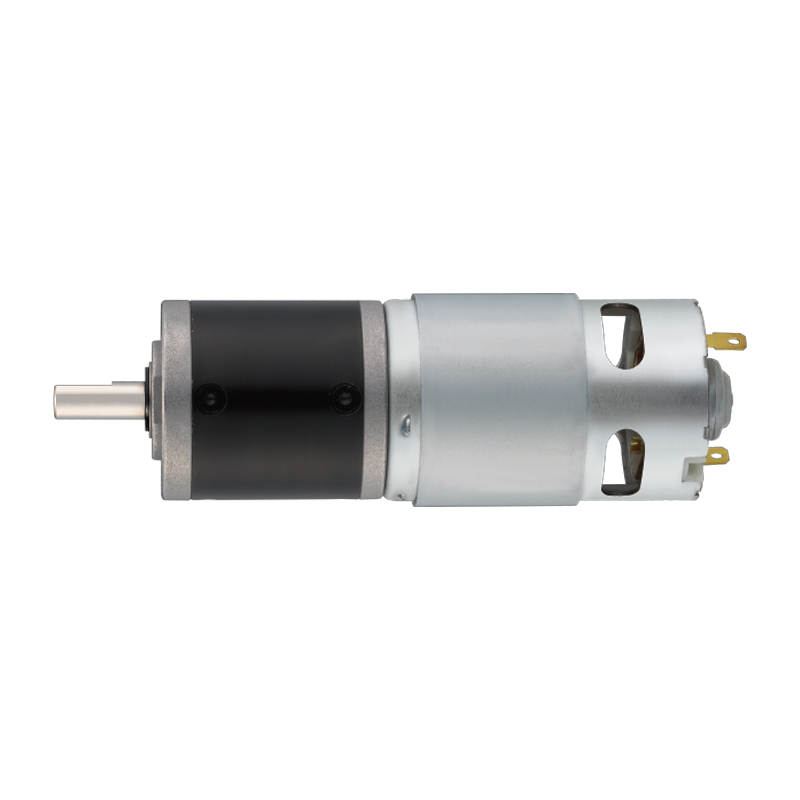

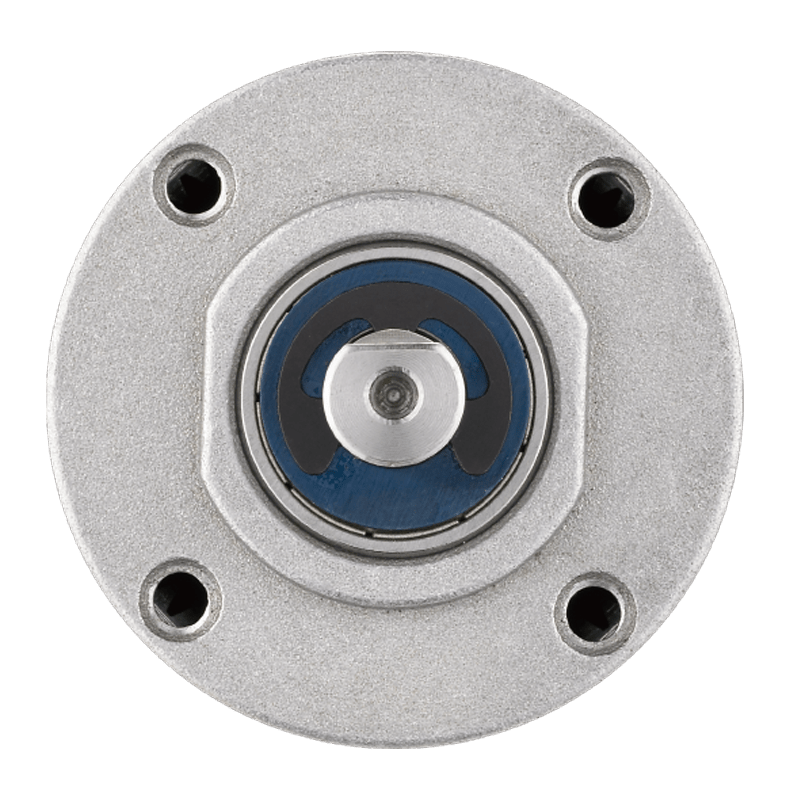

IG-42CGM-02TYPE
DC Carbon-brush Motor
- Ideal choice for high torque, with size options ranging from 8mm to 90mm.
- Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
- Most series come with the option of ball bearings for enhanced performance.
- Special specifications for use in unique environments can be discussed.
- We welcome customization to meet specific requirements.

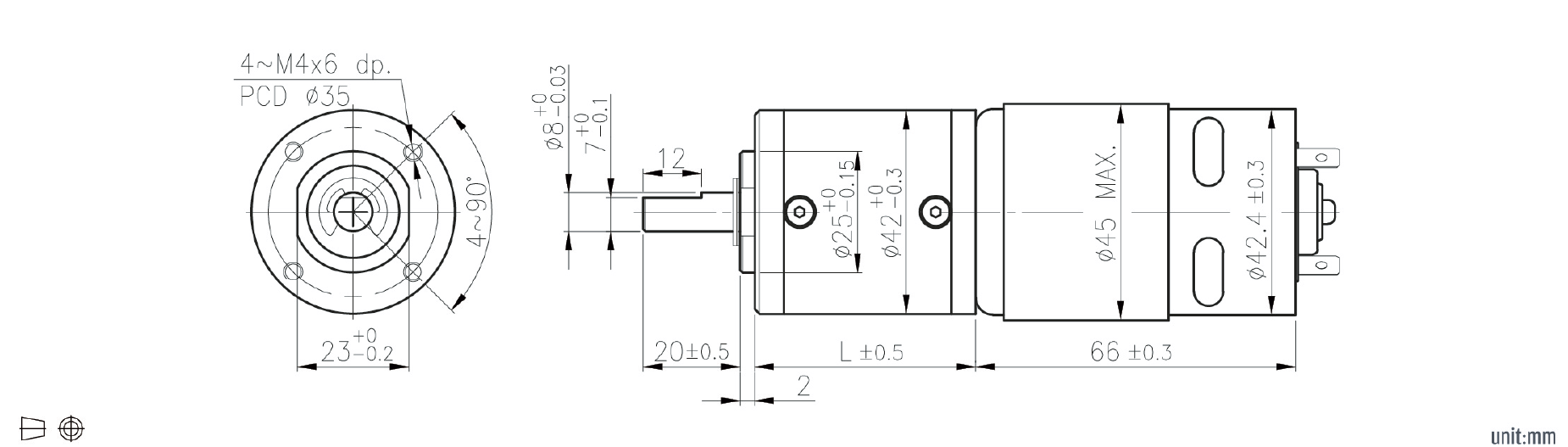

Dimensional drawing
Spec
| No. | Outer diameter(mm) | Motor type | Rated volt(V) | Reduction ratio | Absolute reduction | Number of stages | Rated torque(N-m) | Rated speed(rpm) | Rotation direction | Gear motor length(mm) | Gear motor weight(g) | Gearbox series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/4 | 1/4 | 1 | 0.18 | 1445 | CCW | 98.5 | 501 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/14 | 1/14 | 2 | 0.53 | 420 | CCW | 105.2 | 553 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/17 | 1/17.33 | 2 | 0.65 | 340 | CCW | 105.2 | 553 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/24 | 1/24 | 2 | 0.78 | 246 | CCW | 105.2 | 553 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/49 | 1/49 | 3 | 1.57 | 122 | CCW | 111.9 | 593 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/61 | 1/60.67 | 3 | 1.76 | 102 | CCW | 111.9 | 593 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/84 | 1/84 | 3 | 1.76 | 77.5 | CCW | 111.9 | 593 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/104 | 1/104 | 3 | 1.96 | 63 | CCW | 111.9 | 593 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/144 | 1/144 | 3 | 1.96 | 47 | CCW | 111.9 | 593 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/212 | 1/212.33 | 4 | 2.45 | 31 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/294 | 1/294 | 4 | 2.45 | 21.8 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/504 | 1/504 | 4 | 2.94 | 13.5 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/624 | 1/624 | 4 | 2.94 | 10.9 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/720 | 1/720 | 4 | 2.94 | 9.5 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/864 | 1/864 | 4 | 2.94 | 8 | CCW | 118.6 | 643 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/1062 | 1/1061.67 | 5 | 2.94 | 6.5 | CCW | 125.6 | 688 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/1470 | 1/1470 | 5 | 2.94 | 4.6 | CCW | 125.6 | 688 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/2500 | 1/2500 | 5 | 2.94 | 2.7 | CCW | 125.6 | 688 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/3000 | 1/3000 | 5 | 2.94 | 2.3 | CCW | 125.6 | 688 | Planetary |
| IG-42CGM-02TYPE | 42 | DC Brushed Motor | 24 | 1/3600 | 1/3600 | 5 | 2.94 | 1.9 | CCW | 125.6 | 688 | Planetary |
