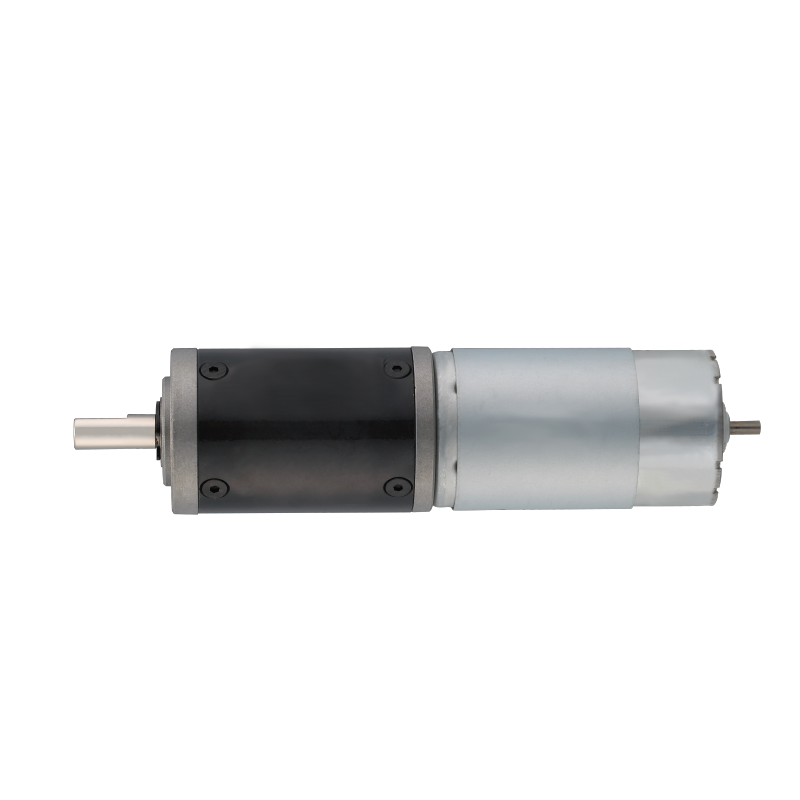

IG-38PGM-01TYPE

DC Carbon-brush Motor

  • Ideal choice for high torque, with size options ranging from 8mm to 90mm.
  • Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
  • Most series come with the option of ball bearings for enhanced performance.
  • Special specifications for use in unique environments can be discussed.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

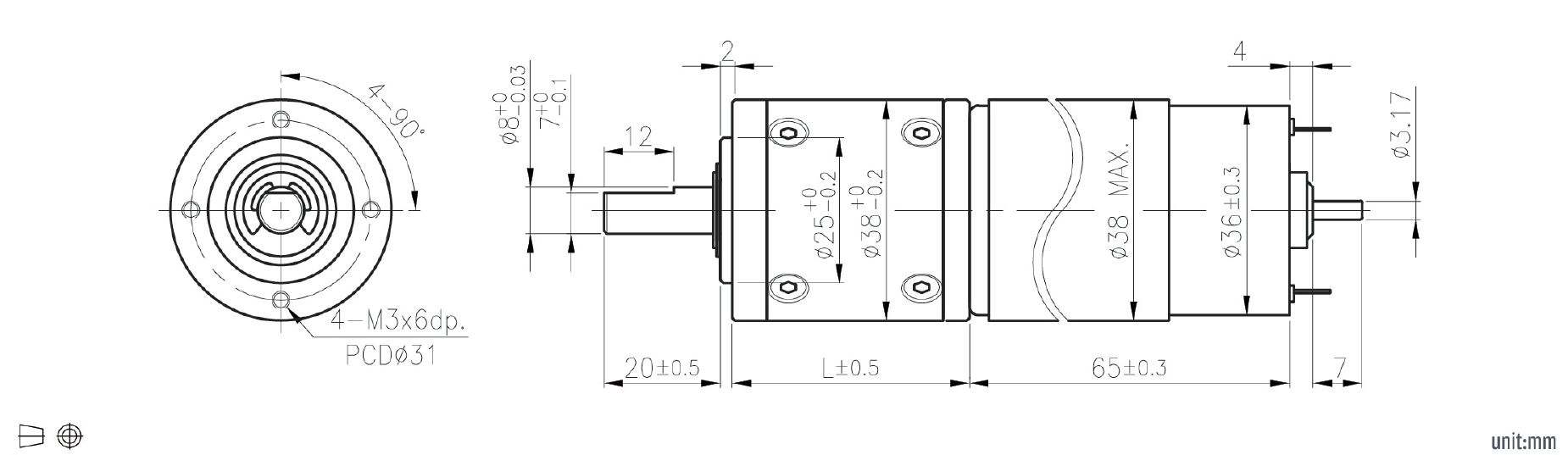

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/5 1/5.18 1 0.1 1100 CW 98.1 411 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/14 1/13.73 2 0.24 420 CW 106.8 459 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/19 1/19.2 2 0.32 300 CW 106.8 459 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/27 1/26.85 2 0.46 210 CW 106.8 459 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/51 1/50.89 3 0.74 110 CW 115.5 507 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/71 1/71.16 3 0.98 81 CW 115.5 507 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/100 1/99.51 3 1.47 58 CW 115.5 507 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/139 1/139.14 3 1.96 41 CW 115.5 507 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/189 1/188.61 4 2.25 30 CW 124.2 555 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/264 1/263.73 4 2.45 22.5 CW 124.2 555 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/516 1/515.63 4 2.94 11.6 CW 124.2 555 Planetary
IG-38PGM-01TYPE 38 DC Brushed Motor 12 1/721 1/720.99 4 2.94 8.4 CW 124.2 555 Planetary
