IG-32RGM-04TYPE

DC Carbon-brush Motor

  • Single or dual output shaft are both available.
  • Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

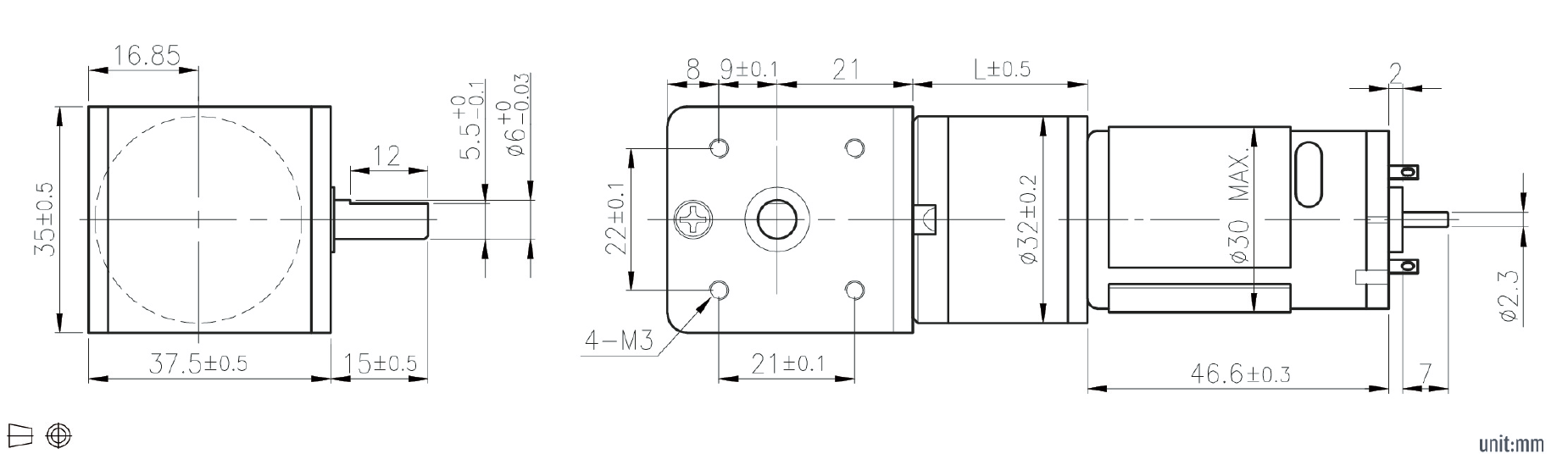

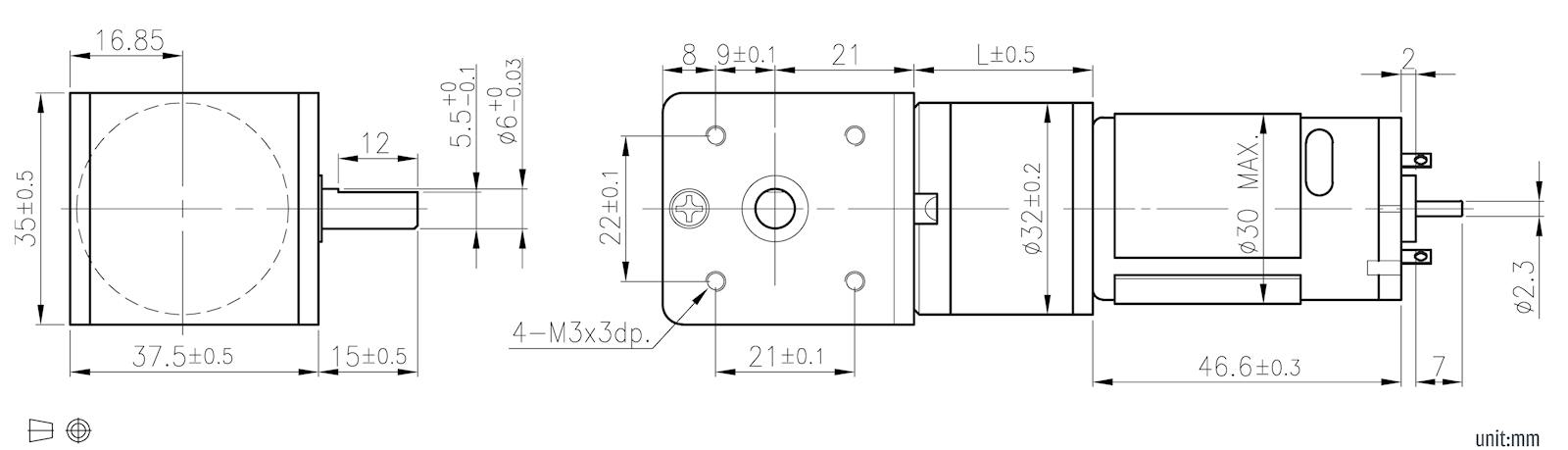

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/5 1/5.18 1 0.05 1170 CCW 105.2 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/14 1/13.73 2 0.11 445 CCW 111.6 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/19 1/19.2 2 0.15 320 CCW 111.6 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/27 1/26.85 2 0.21 229 CCW 111.6 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/35 1/34.98 2 0.26 176 CCW 111.6 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/51 1/50.89 3 0.32 120 CCW 118 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/71 1/71.16 3 0.45 87 CCW 118 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/100 1/99.51 3 0.63 62 CCW 118 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/139 1/139.14 3 0.88 45 CCW 118 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/189 1/188.61 4 0.96 34 CCW 124.4 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/264 1/263.73 4 1.18 25 CCW 124.4 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/516 1/515.63 4 1.18 13 CCW 124.4 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/721 1/720.99 4 1.18 9.6 CCW 124.4 Right Angle
IG-32RGM-04TYPE 32 DC Brushed Motor 24 1/939 1/939.18 4 1.18 7.2 CCW 124.4 Right Angle
