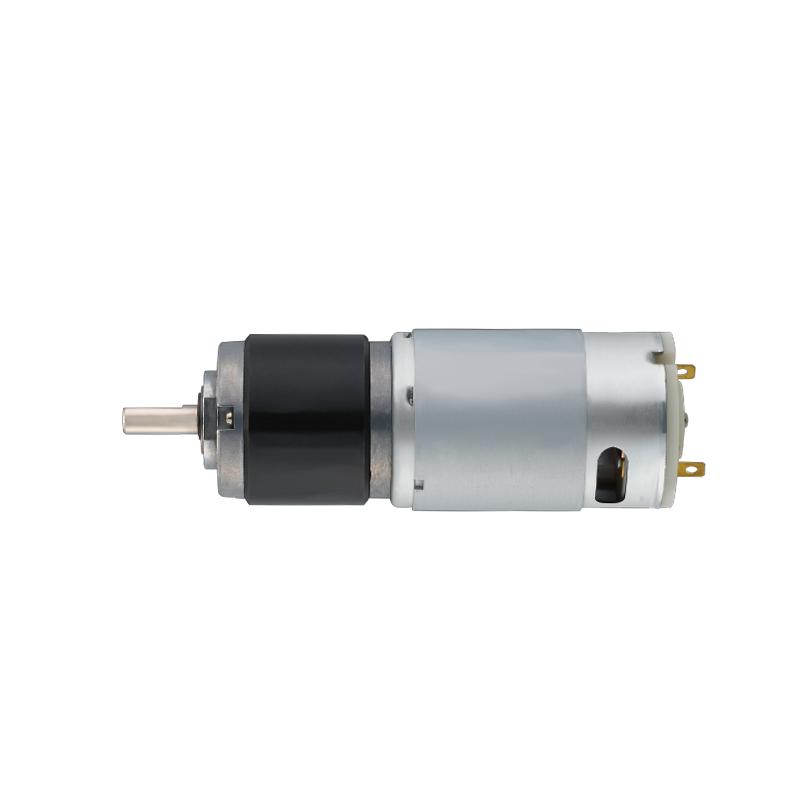

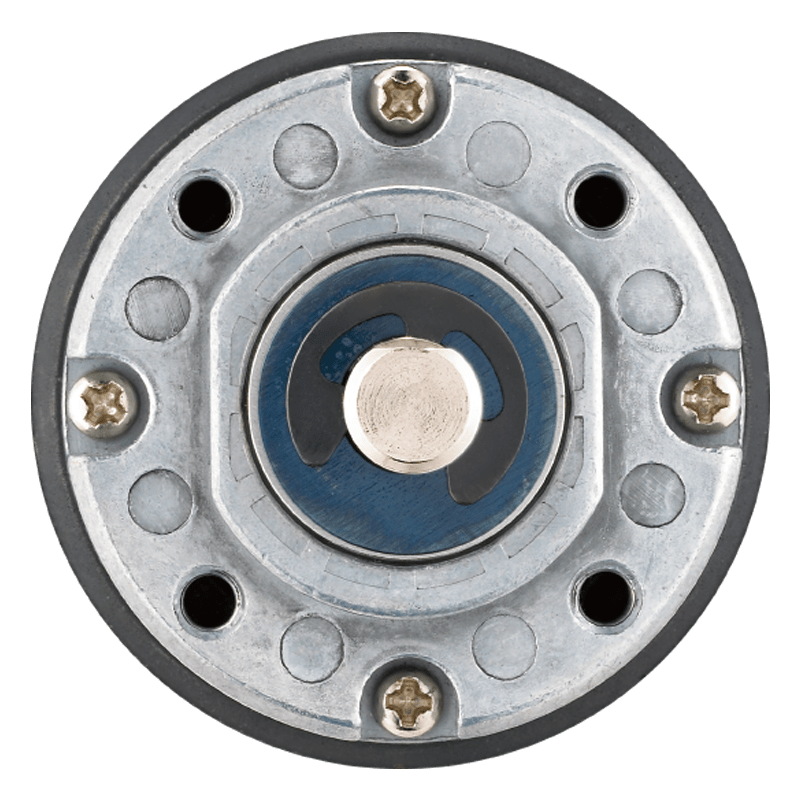

IG-32PGM-02TYPE

DC Carbon-brush Motor

  • Ideal choice for high torque, with size options ranging from 8mm to 90mm.
  • Various gear materials and specifications are available, including options for plastic, metal gears and helical gears.
  • Most series come with the option of ball bearings for enhanced performance.
  • Special specifications for use in unique environments can be discussed.
  • We welcome customization to meet specific requirements.
Specification Download STP Download

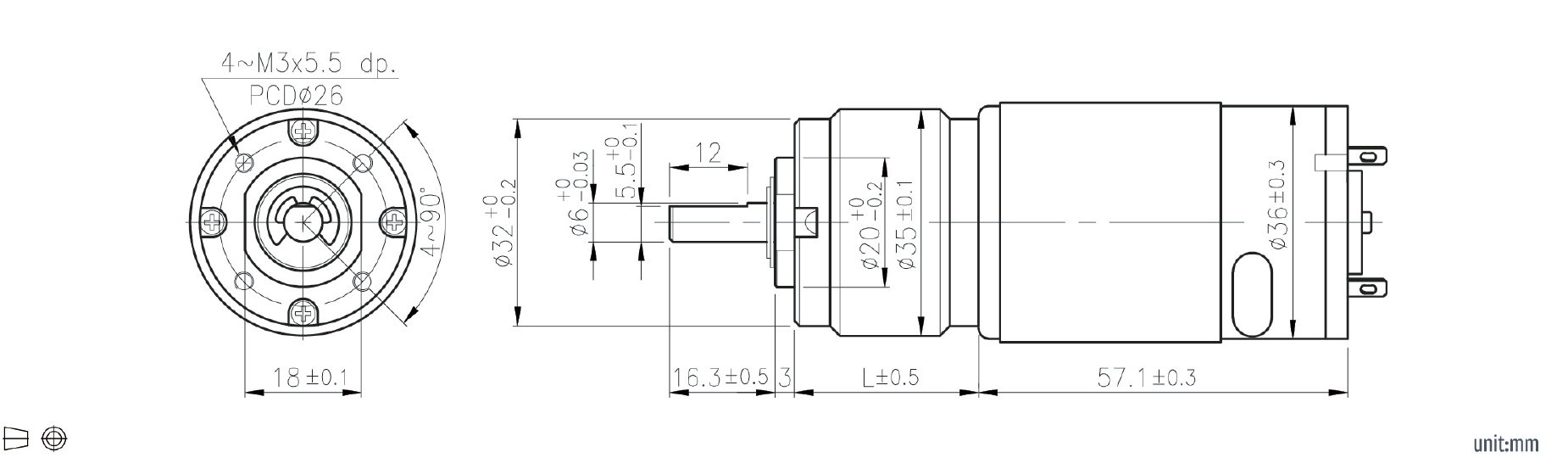

Dimensional drawing

Spec

No. Outer diameter(mm) Motor type Rated volt(V) Reduction ratio Absolute reduction Number of stages Rated torque(N-m) Rated speed(rpm) Rotation direction Gear motor length(mm) Gear motor weight(g) Gearbox series
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/5 1/5.18 1 0.1 990 CCW 79.2 329 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/14 1/13.73 2 0.23 375 CCW 85.6 363 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/19 1/19.20 2 0.31 268 CCW 85.6 363 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/27 1/26.85 2 0.44 192 CCW 85.6 363 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/51 1/50.89 3 0.72 101 CCW 92 397 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/71 1/71.16 3 0.78 74.5 CCW 92 397 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/100 1/99.51 3 0.98 54 CCW 92 397 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/139 1/139.14 3 0.98 40 CCW 92 397 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/189 1/188.61 4 1.18 29.5 CCW 98.4 431 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/264 1/263.73 4 1.18 22 CCW 98.4 431 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/516 1/515.63 4 1.18 11.5 CCW 98.4 431 Planetary
IG-32PGM-02TYPE 32 DC Brushed Motor 24 1/721 1/720.99 4 1.18 8 CCW 98.4 431 Planetary
