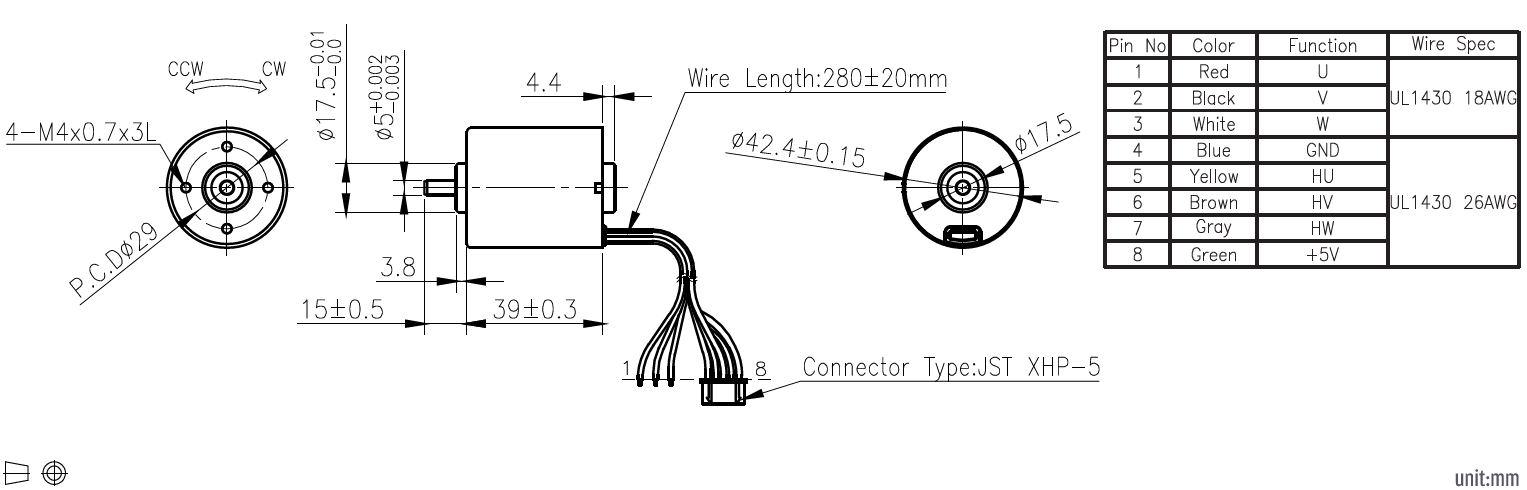

Dimensional drawing
Spec
| No. | Motor series | Outer diameter(mm) | Length(mm) | Rated volt(V) | Rated torque(N-m) | Rated speed(rpm) | Rated current(A) | No load speed(rpm) | No load current(A) | Rated output(W) | Max. efficiency | Weight(g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLA-4239 | BLDC motor | 42 | 39 | 24 | 0.06 | 9000 | 3.65 | 11000 | 0.9 | 56.5 | 70% | 196 |
